MOTOR, Blower: Removal: Removal

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible serious or fatal injury.

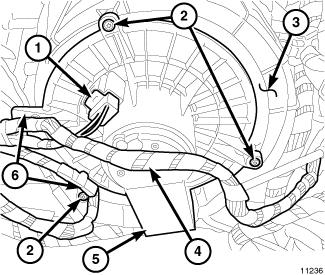

Fig 1: Wire Harness Connector From Blower Motor
GC0096067Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument panel silencer from the passenger side of the instrument panel. Refer to Body/Instrument Panel/PANEL, Silencer - Removal .
  3. Disengage the wire harness connector locking tab and disconnect the wire harness connector (1) from the blower motor (5).
  4. Disengage the wire harness (4) from the two wire harness retainers (6).
  5. Remove the three screws (2) that secure the blower motor to the HVAC housing (3).
  6. Remove the blower motor from the HVAC housing.
