Single Zone/Dual Zone Driver Side

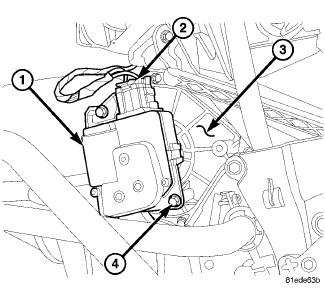

Fig 1: Actuator-Blend Door-Single/Dual Driver Removal & Installation 08 LX
GC0081005Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. If equipped, remove the instrument panel silencer from the driver side of the instrument panel. Refer to Body/Instrument Panel/PANEL, Silencer - Removal .
  3. Remove the two screws (4) that secure the blend door actuator (12) to the driver side of the HVAC air distribution housing (3).
  4. Remove the blend door actuator from the air distribution housing and disconnect the HVAC wire harness connector (2) and remove the actuator from the vehicle.
