Diagnostic Test

CHECK FOR DTC B1610-AMBIENT LIGHT SENSOR INPUT CIRCUIT LOW WITH SUN SENSOR HARNESS CONNECTOR DISCONNECTED

Fig 1: Checking Left Solar Sensor Circuit Low With Sun Sensor Harness Connector Disconnected
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Sun Sensor harness connector.
3. Turn the ignition on.
4. With the scan tool, erase HVAC DTCs.
5. Turn the ignition off, wait 10 seconds, and turn the ignition on.
6. With the scan tool, read HVAC DTCs.
  Does the scan tool display: B1610-AMBIENT LIGHT SENSOR INPUT CIRCUIT LOW?

  Yes
  - Go To 2
  No
  - Replace the Sun Sensor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
CHECK (L24) AUTO HEADLAMPS SIGNAL CIRCUIT FOR A SHORT TO GROUND

Fig 2: Checking Auto Headlamps Signal Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the A/C Heater Control C1 harness connector.
3. Measure the resistance of the (L24) Auto Headlamps Signal circuit between ground and the A/C Heater Control C1 harness connector.
  Is the resistance below 10k ohms?

  Yes
  - Repair the (L24) Auto Headlamps Signal circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Go to step 3
CHECK (L24) AUTO HEADLAMPS SIGNAL CIRCUIT FOR A SHORT TO (G939) SUN SENSOR RETURN CIRCUIT

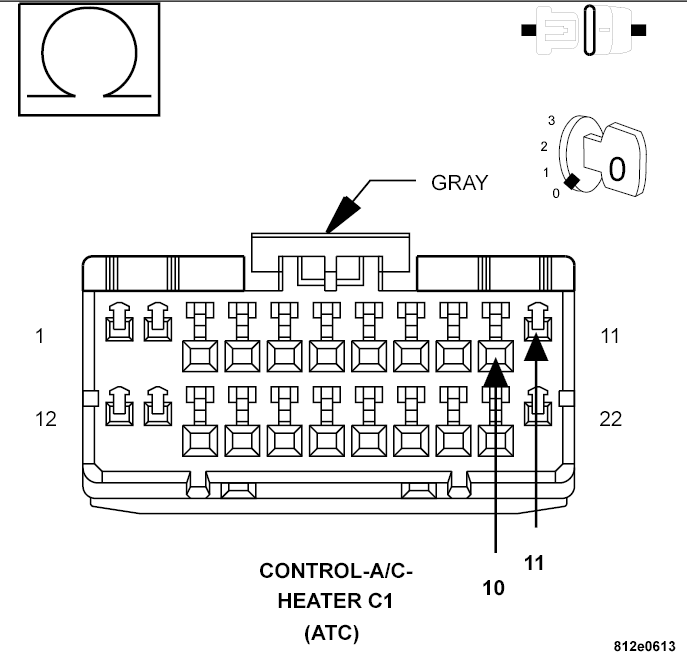

Fig 3: Checking Auto Headlamps Signal Circuit For A Short To Sun Sensor Return Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (L24) Auto Headlamps Signal circuit and the (G939) Sun Sensor Return circuit in the A/C Heater Control C1 harness connector.
  Is the resistance below 10k ohms?

  Yes
  - Repair the (L24) Auto Headlamps Signal circuit for a short to the (G939) Sun Sensor Return circuit.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Replace the A/C Heater Control in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
