Diagnostic Test

CHECK (G39) SUN SENSOR NO. 1 SIGNAL CIRCUIT VOLTAGE

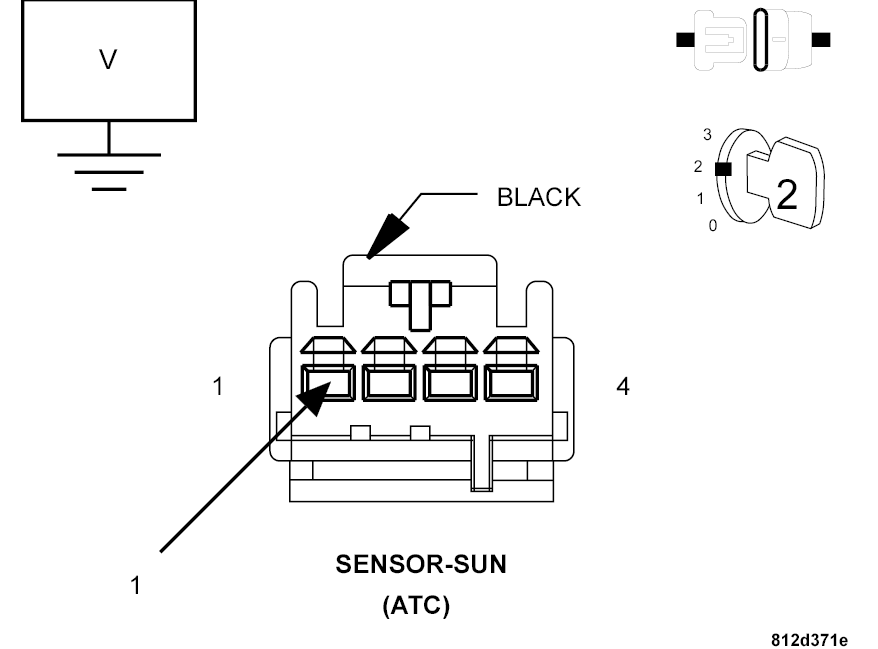

Fig 1: Checking Sun Sensor No. 1 Signal Circuit Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Sun Sensor harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (G39) Sun Sensor No. 1 Signal circuit.
  What voltage is present?

  Above 5.2 Volts
  - Go to step 2
  4.8 Volts to 5.2 Volts
  - Go to step 3
  Below 4.8 Volts
  - Go to step 5
CHECK (G39) SUN SENSOR NO. 1 SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

Fig 2: Checking Sun Sensor No. 1 Signal Circuit Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the A/C Heater Control C1 harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (G39) Sun Sensor No. 1 Signal circuit.
  Is the voltage above 0.2 volts?

  Yes
  - Repair the (G39) Sun Sensor No. 1 Signal circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Replace the A/C Heater Control in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
CHECK (G939) SUN SENSOR RETURN CIRCUIT FUNCTION

Fig 3: Checking Sun Sensor Return Circuit Function
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect a jumper wire between the (G39) Sun Sensor No. 1 Signal circuit and the (G939) Sun Sensor Return circuit in the Sun Sensor harness connector.
3. Turn the ignition on.
4. With the scan tool in HVAC, select Data Display and read the Left Solar Sensor voltage.
  Is the voltage below 0.2 volts?

  Yes
  - Replace the Sun Sensor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Go to step 4
CHECK (G939) SUN SENSOR RETURN CIRCUIT FOR AN OPEN

Fig 4: Checking Sun Sensor Return Circuit For An Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the A/C Heater Control C1 harness connector.
3. Measure the resistance of the (G939) Sun Sensor Return circuit between the Sun Sensor harness connector and the A/C Heater Control C1 harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace the A/C Heater Control in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Repair the (G939) Sun Sensor Return circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
CHECK (G39) SUN SENSOR NO. 1 SIGNAL CIRCUIT FOR AN OPEN

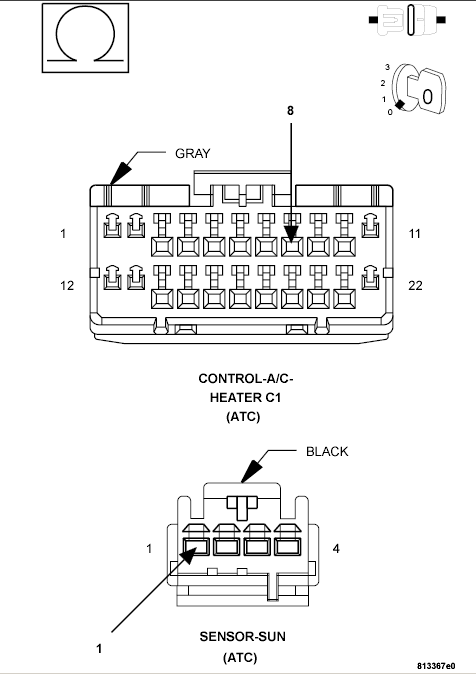

Fig 5: Checking Sun Sensor No. 1 Signal Circuit For An Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the A/C Heater Control C1 harness connector.
3. Measure the resistance of the (G39) Sun Sensor No. 1 Signal circuit between the Sun Sensor harness connector and the A/C Heater Control C1 harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace the A/C Heater Control in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Repair the (G39) Sun Sensor No. 1 Signal circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
