Section 7 ((Powertrain Control Module (Pcm) - Electrical Diagnostics - 42RLE))
>>
DTC Troubleshooting
>>
P1794-Speed Sensor Ground Error
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different variant/trim than selected.

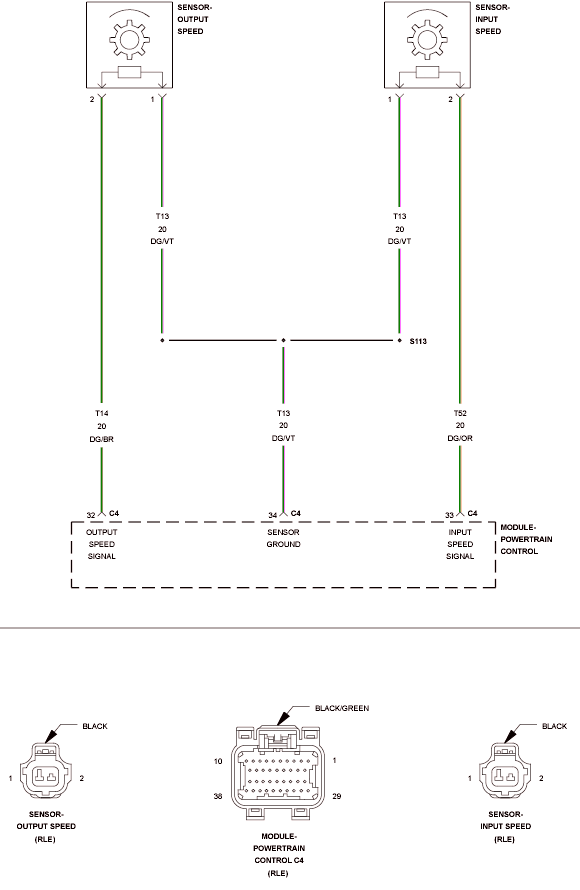

Fig 1: Input/Output Speed Signal Senor Ground Circuit Schematic
Courtesy of CHRYSLER LLC
