Section 7 ((Powertrain Control Module (Pcm) - Electrical Diagnostics - 42RLE))
>>
DTC Troubleshooting
>>
P0706-Transmission Range Sensor Rationality
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different variant/trim than selected.

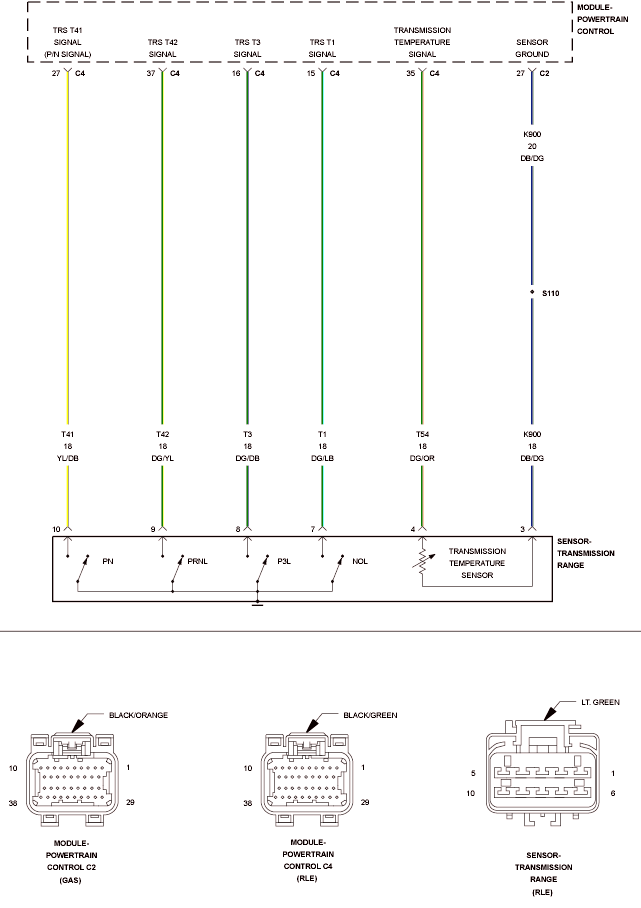

Fig 1: Transmission Temperature Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
