SEAL, Input Shaft: Installation: Rear

WARNING: This page is about a different variant/trim than selected.

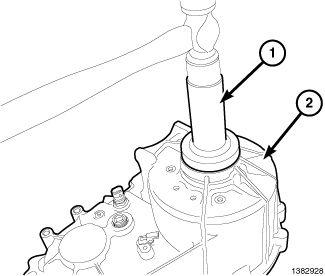

Fig 1: Seal Installer 10174 And Rear Case Half

Courtesy of CHRYSLER LLC

Use 10174 Seal Installer to install the rear input shaft seal into the rear case half (2).

Fig 2: Rear Output Flange
Courtesy of CHRYSLER LLC
Install the rear output flange (1).

Fig 3: Outer Rear Output Shaft Seal
Courtesy of CHRYSLER LLC
Install a new outer rear input shaft seal (1)

Fig 4: Rear Output Flange Washer
Courtesy of CHRYSLER LLC
Install the rear output flange washer (1)

Fig 5: Holder 6958 And Rear Output Flange
Courtesy of CHRYSLER LLC
Install the rear output flange nut.
Install Holder 6958 (1) onto the rear output flange (2). Tighten the rear output flange nut to 319 Nm (235 ft. lbs.).
Install the rear propeller shaft. Refer to Differential and Driveline/Propeller Shaft - Installation .
