SEAL, Input Shaft: Installation: Front

WARNING: This page is about a different variant/trim than selected.

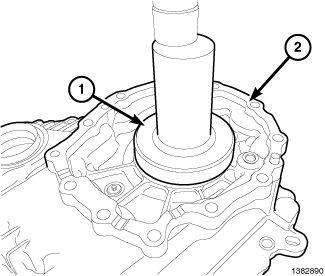

Fig 1: Seal Installer 10173 And Front Case Half
GC0095899Courtesy of CHRYSLER LLC
  1. Use 10173 Seal Installer (1) to install the front input shaft seal into the front case half (2).
  2. Install the transfer case. See Transmission and Transfer Case/Transfer Case - Installation .
