Standard Procedure

WARNING: This page is about a different variant/trim than selected.

If installing a new clutch pack, check the clutch pack clearance, and select a new spacer if necessary. See Transmission and Transfer Case/Transfer Case - Adjustments .

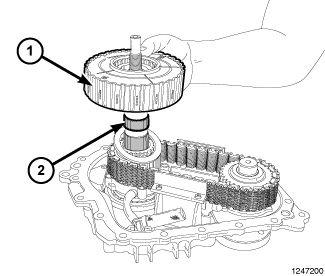

Fig 1: Clutch Assembly And Input Shaft
Courtesy of CHRYSLER LLC
Install the Clutch Assembly (1) onto the input Shaft (2).

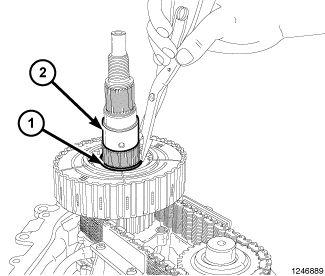

Fig 2: Snap Ring And Input Shaft
Courtesy of CHRYSLER LLC
Install the Snap Ring (1) onto the Input Shaft (2).

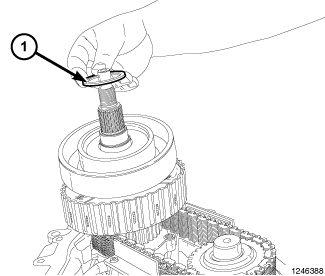

Fig 3: Input Shaft Wave Spring
Courtesy of CHRYSLER LLC
Install the wave spring (1) onto the input shaft.

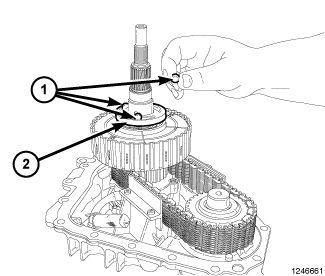

Fig 4: Ball Bearings And Apply Cam
Courtesy of CHRYSLER LLC
Install the apply cam (2), and the ball bearings (1).

Fig 5: Clutch Rotor
Courtesy of CHRYSLER LLC
Install the clutch rotor (1) onto the input shaft.

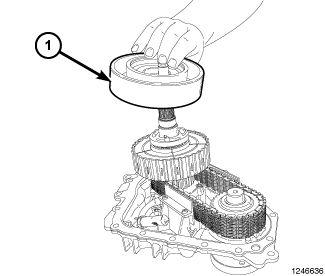

Fig 6: Input Shaft Bearing
Courtesy of CHRYSLER LLC
Install the bearing (1) onto the input shaft.

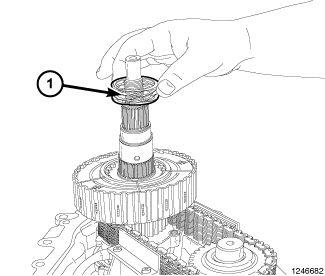

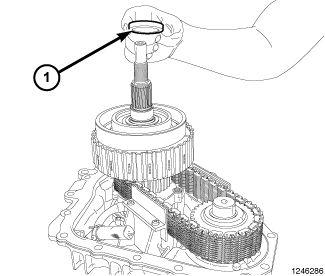

Fig 7: Spacer
Courtesy of CHRYSLER LLC
Install the spacer (1).
Apply a bead of Loctite® 598 HB to the front case half sealing surface.

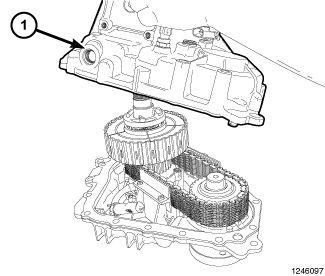

Fig 8: Transfer Case Rear Cover
Courtesy of CHRYSLER LLC
Install the rear cover (1). Tighten the case bolts to 31 Nm (23 ft. lbs).

Fig 9: Rear Output Flange
Courtesy of CHRYSLER LLC
Install the rear output flange (1).

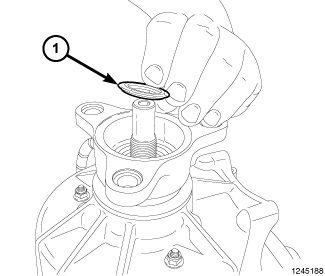

Fig 10: Outer Rear Output Shaft Seal
Courtesy of CHRYSLER LLC
Install a new outer rear output shaft seal (1).

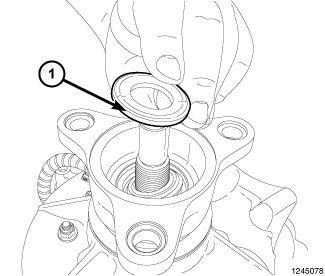

Fig 11: Rear Output Flange Washer
Courtesy of CHRYSLER LLC
Install the rear output flange washer (1).
Install the rear output flange nut.

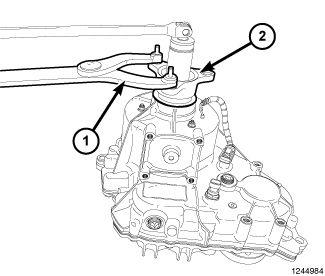

Fig 12: Holder 6958 And Rear Output Flange
Courtesy of CHRYSLER LLC
Install Holder 6958 (1) onto the rear output flange (2). Tighten the rear output flange nut to 319 Nm (235 ft. lbs.).
