Section 6 (Transfer Case BW 44-40 (Service Information)): Chain: Removal: Removal

Fig 1: Transfer Case And Drain Plug

Courtesy of CHRYSLER LLC

1. Remove the transfer case from the vehicle. See Transmission and Transfer Case/Transfer Case - Removal .
   NOTE: The vent hole is near the input shaft hub. If the unit is set on the mounting surface, oil will drain out through the vent.
2. Place the transfer case so that it can be drained of any remaining fluid and remove the drain plug (2).
   Fig 2: Holder 6958 And Rear Output Flange

   Courtesy of CHRYSLER LLC
3. Install Holder 6958 (1) onto the rear output flange (2).
4. Remove the rear output flange nut.
   Fig 3: Rear Output Flange Washer

   Courtesy of CHRYSLER LLC
5. Remove the rear output flange washer (1)
   Fig 4: Outer Rear Output Shaft Seal

   Courtesy of CHRYSLER LLC
6. Remove the outer rear output shaft seal (1)
   Fig 5: Rear Output Flange

   Courtesy of CHRYSLER LLC
7. Remove the rear output flange (1)
   Fig 6: Transfer Case Rear Cover

   Courtesy of CHRYSLER LLC
8. Remove the case half bolts.
   NOTE: The clutch rotor might remain in the rear case half during removal.
9. Remove the rear cover (1)
   Fig 7: Spacer

   Courtesy of CHRYSLER LLC
10. Remove the spacer (1)
    Fig 8: Input Shaft Bearing

    Courtesy of CHRYSLER LLC
11. Remove the bearing (1) from the input shaft.
    Fig 9: Clutch Rotor

    Courtesy of CHRYSLER LLC
12. Remove the clutch rotor (1) from the input shaft.
    Fig 10: Ball Bearings And Apply Cam

    Courtesy of CHRYSLER LLC
13. Remove the ball bearings (1) from the apply cam (2).
14. Remove the apply cam (2).
    Fig 11: Input Shaft Wave Spring

    Courtesy of CHRYSLER LLC
15. Remove the wave spring (1) from the input shaft.
    Fig 12: Snap Ring And Input Shaft

    Courtesy of CHRYSLER LLC
16. Remove the snap ring (1) from the input shaft (2).
    Fig 13: Clutch Assembly And Input Shaft

    Courtesy of CHRYSLER LLC
17. Remove the clutch assembly (1) from the input shaft (2).

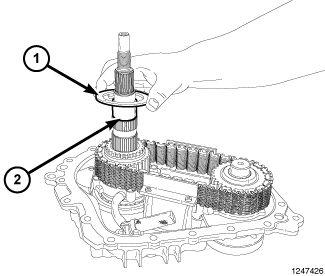

    Fig 14: Thrust Washer And Input Shaft

    Courtesy of CHRYSLER LLC
18. Remove the thrust washer (1) from the input shaft (2).

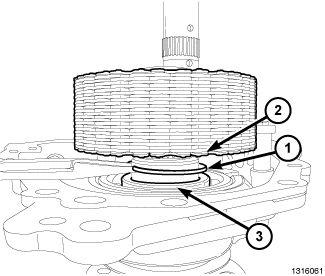

    Fig 15: Locating Snap Ring

    Courtesy of CHRYSLER LLC
    NOTE: The output shaft sprocket is pressed onto the output shaft.
19. Release the Snap Ring (1) from the Output Shaft and move it away from the Groove (3), toward the Output Shaft Sprocket (2).

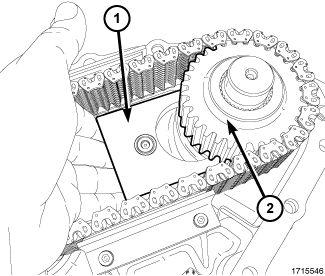

    Fig 16: Brace Plate 10176 And Input Shaft Sprocket

    Courtesy of CHRYSLER LLC
20. Slide the 10176 Brace Plate (1) in between the case and the input shaft sprocket (2).
    Fig 17: Puller Plate 10176 And Output Shaft Flange

    Courtesy of CHRYSLER LLC
21. Align the holes on the 10176 Puller Plate (1) with the bolt holes in the output shaft flange (2), then install the 10176 Puller Plate (1) onto the output shaft flange (2).
    Fig 18: Base 10176

    Courtesy of CHRYSLER LLC
22. Install the 10176 Base (1) onto the puller plate.

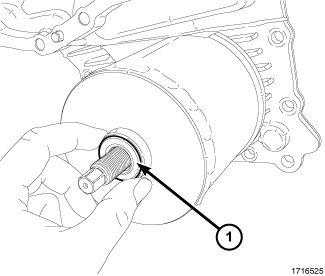

    Fig 19: Bearing 10176

    Courtesy of CHRYSLER LLC
    NOTE: Install the 10176 Bearing (1) so that the bearing flange is facing up.
23. Install the 10176 Bearing (1).

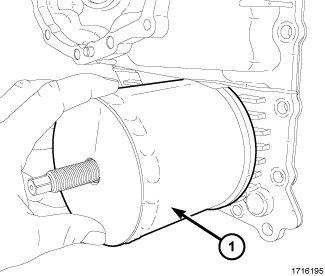

    Fig 20: Nut 10176

    Courtesy of CHRYSLER LLC
24. Install the 10176 Nut (1).
    Fig 21: Output Shaft

    Courtesy of CHRYSLER LLC
25. Tighten the nut until the Output Shaft (1) is pulled free of the output shaft sprocket.
26. Remove the Output Shaft Sprocket, the Drive Chain, and the Drive Sprocket as an assembly.
