CAMSHAFT, Engine: Installation: Camshaft

WARNING: This page is about a different variant/trim than selected.

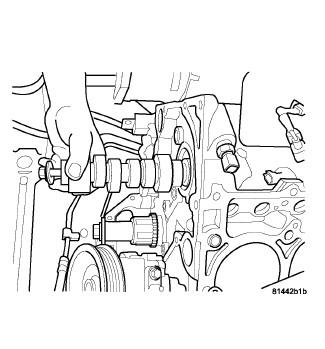

Fig 1: CAMSHAFT REMOVAL/INSTALLATION
GC0081834Courtesy of CHRYSLER LLC
  1. Lubricate the camshaft lobes and camshaft bearing journals and carefully insert the camshaft.

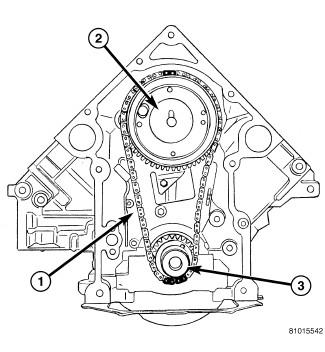

    Fig 2: TIMING MARK ALIGNMENT
    GC0095606Courtesy of CHRYSLER LLC
  2. Install the camshaft tensioner plate assembly and tighten the bolts to 28 N.m (250 in. lbs.).
  3. Install the timing chain and sprockets. See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Installation .
  4. Measure camshaft end play. See Engine - Specifications . If not within limits install a new thrust plate.

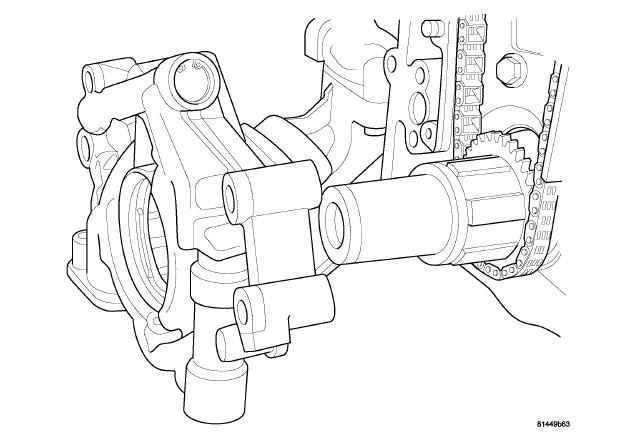

    Fig 3: OIL PUMP REMOVAL/INSTALLATION
    GC0095607Courtesy of CHRYSLER LLC
  5. Install the oil pump. See Engine/Lubrication/PUMP, Engine Oil - Installation

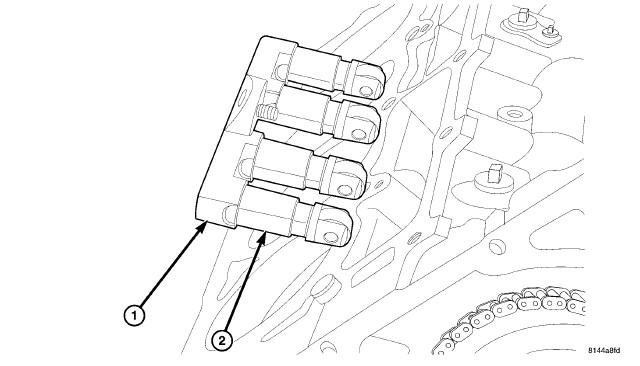

    Fig 4: HYDRAULIC ROLLER TAPPET REMOVAL/INSTALLATION
    GC0081835Courtesy of CHRYSLER LLC
    NOTE: Each tappet must be installed in the same position from which it was removed.
    NOTE: When the camshaft is replaced, all of the tappets must be replaced.
  6. Install the tappets (2) and retainer assembly (1). See Engine/Engine Block/LIFTER(S), Hydraulic - Installation

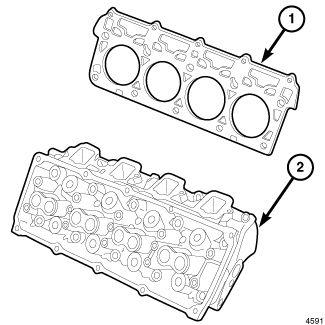

    Fig 5: Cylinder Head Components
    GC0080293Courtesy of CHRYSLER LLC
  7. Install both left and right cylinder heads (4). See Engine/Cylinder Head - Installation .
  8. Install the pushrods in the same position from which they were removed.

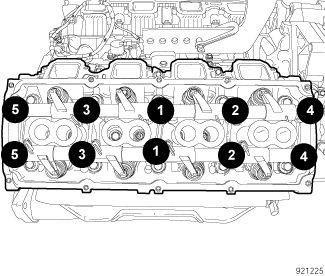

    Fig 6: Rocker Shafts Retaining Bolt Removal & Tightening Sequence
    GC0088038Courtesy of CHRYSLER LLC
  9. Install the rocker arms and shaft assembly. See Engine/Cylinder Head/ROCKER ARM, Valve - Installation
  10. Using the sequence shown in Fig 6, install the rocker arm shaft bolts and tighten to 22 N.m (16 ft. lbs.).

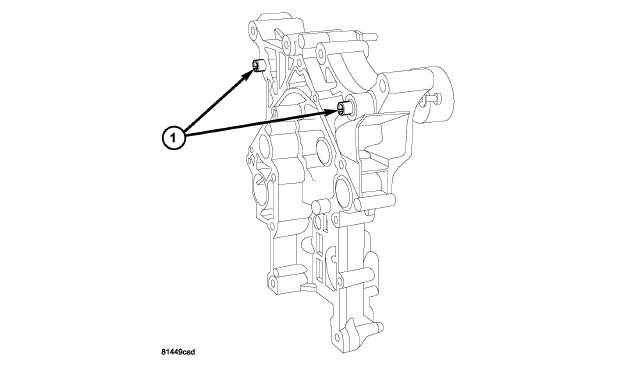

    Fig 7: FRONT COVER SLIDE BUSHINGS
    GC0081836Courtesy of CHRYSLER LLC
  11. Install the timing chain cover. See Engine/Valve Timing/COVER(S), Engine Timing - Installation .
  12. Install the oil pick up tube.
  13. Install the oil pan. See Engine/Lubrication/PAN, Oil - Installation .

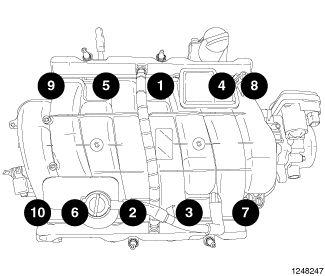

    Fig 8: Intake Manifold Removal & Tightening Sequence
    GC0095568Courtesy of CHRYSLER LLC
  14. Using the sequence shown in Fig 8, install the intake manifold and tighten the bolts to 12 N.m (9 ft. lbs.). See Engine/Manifolds/MANIFOLD, Intake - Installation

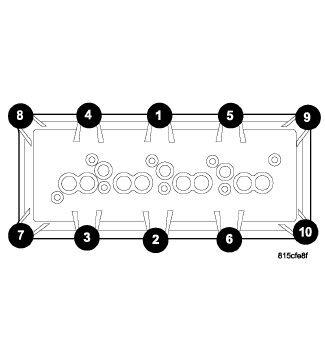

    Fig 9: Cylinder Head Cover Torque Sequence
    GC0080292Courtesy of CHRYSLER LLC
  15. Install the cylinder head covers. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation
  16. Install the A/C compressor. See Engine/Lubrication/PAN, Oil - Installation
  17. Install the generator.

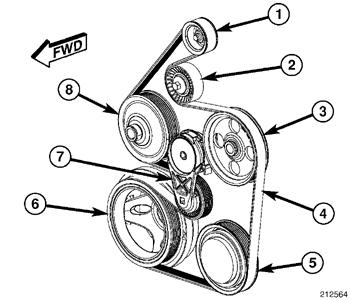

    Fig 10: Identifying Accessory Drive Belt
    GC0083837Courtesy of CHRYSLER LLC
  18. Install the accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation
  19. Install the radiator. Refer to Cooling/Engine/RADIATOR, Engine Cooling - Installation
    Fig 11: Air Cleaner Duct
    GC0080290Courtesy of CHRYSLER LLC
  20. Install the air cleaner housing (1) and clean air tube (2).

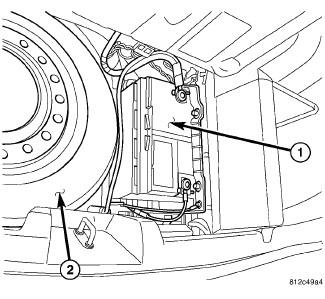

    Fig 12: Locating Battery
    GC0081581Courtesy of CHRYSLER LLC
  21. Install the negative battery cable.
  22. Fill the cooling system. Refer to Cooling - Standard Procedure .

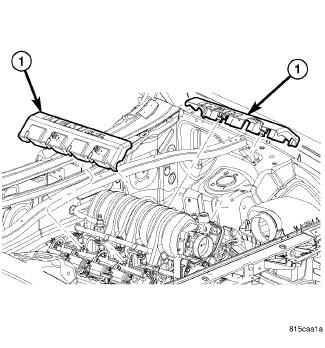

    Fig 13: Engine Covers
    GC0080281Courtesy of CHRYSLER LLC
  23. Fill the engine with oil.
  24. Install engine covers (1).
  25. Start engine and check for leaks.
