Resetting Timing Chain TENSIONER

WARNING: This page is about a different variant/trim than selected.
Fig 1: Tensioner Body, Washer, Spring & Plunger
GC0095590Courtesy of CHRYSLER LLC
NOTE: Verify that the tensioner is assembled correctly.
  1. Install the washer (1), spring (2), and plunger (3) inside the (4).

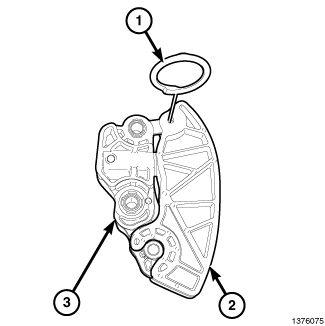

    Fig 2: Installing Tensioner Pin
    GC0095591Courtesy of CHRYSLER LLC
  2. Squeeze the tensioner body (3) and movable guide shoe (2) together and install the Tensioner Pin 8514 (1).
