INSULATOR, Engine Mount, Front: Installation: RWD

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Hydromount
GC0095577Courtesy of CHRYSLER LLC
  1. Install the engine mount brackets, if removed.
  2. Position hydromount (3) on the engine. Install fasteners (1, 2) and tighten to 95 N.m (70 ft. lbs.).
  3. Lower engine.
    Fig 2: Engine Mount Nuts
    GC0094862Courtesy of CHRYSLER LLC
  4. Install engine mount nuts (1, 2) and tighten to 95 N.m (70 ft. lbs.).

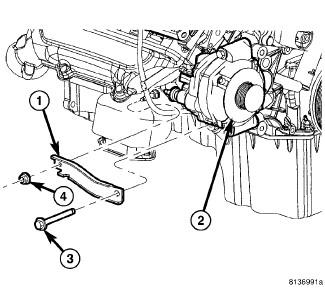

    Fig 3: Generator Support Bracket
    GC0081845Courtesy of CHRYSLER LLC
  5. Install the generator support bracket (1).
    Fig 4: Engine Mount Heat Shield
    GC0080024Courtesy of CHRYSLER LLC
  6. Install the engine mount heat shield (1) and tighten fastener (2).
    Fig 5: Locating Battery
    GC0081581Courtesy of CHRYSLER LLC
  7. Lower vehicle.
  8. Connect negative battery cable to battery (1).
