MECHANISM, Brake Transmission Shift Interlock: Description: Description

WARNING: This page is about a different variant/trim than selected.

NOTE: Some shifter assemblies may have a small external trim cover to actuate the Brake Transmission Shifter/Ignition Interlock (BTSI).

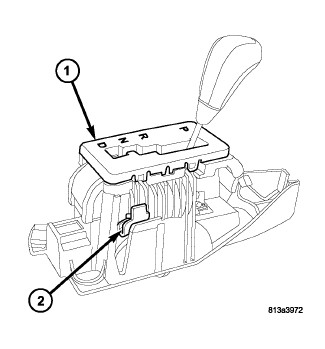

Fig 1: Brake Transmission Shifter/Ignition Interlock (BTSI) Override

Courtesy of CHRYSLER LLC

1 - SHIFTER ASSEMBLY

2 - BTSI OVERRIDE

The Brake Transmission Shifter/Ignition Interlock (BTSI) is an electronically operated system that prevents the transmission gear shifter from being moved out of PARK without the proper driver inputs. The system contains a solenoid that is integral to the shifter assembly. The solenoid permits shifter movement out of PARK when the brake is depressed and prevents shifter movement into REVERSE unless a shift into REVERSE is permitted.

A BTSI override (2) is provided on the side of the shifter mechanism (1) to allow the vehicle to be shifted out of PARK in the event of an electrical failure.
