42RLE - Without Variable Line Pressure

WARNING: This page is about a different variant/trim than selected.

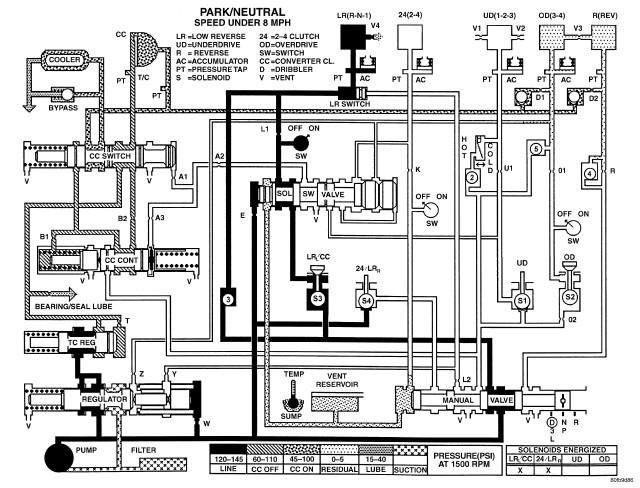

Fig 1: Park/Neutral (Speed Under 8 mph)

Courtesy of CHRYSLER LLC

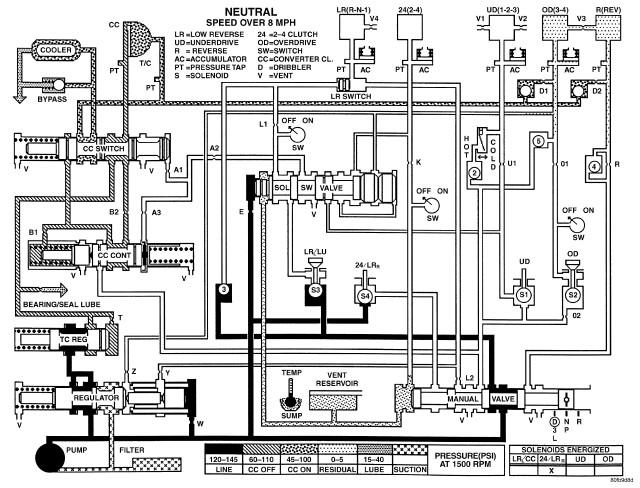

Fig 2: Neutral (Speed Over 8 mph)

Courtesy of CHRYSLER LLC

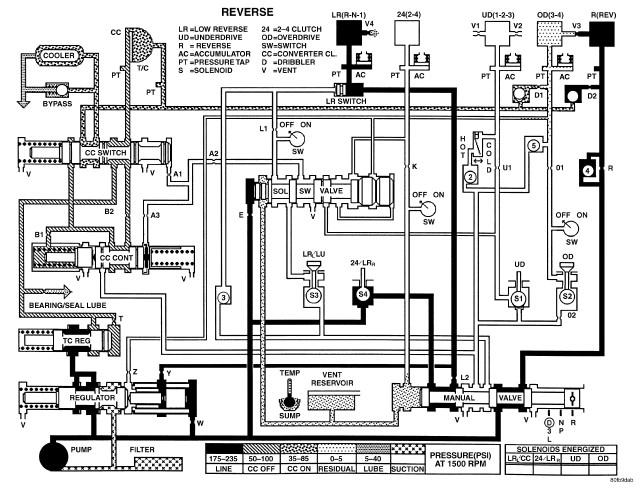

Fig 3: Reverse

Courtesy of CHRYSLER LLC

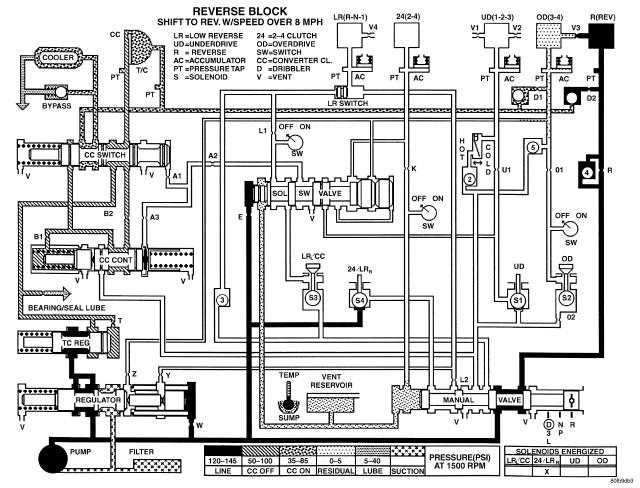

Fig 4: Reverse Block (Shift to Reverse w/Speed Over 8 mph)

Courtesy of CHRYSLER LLC

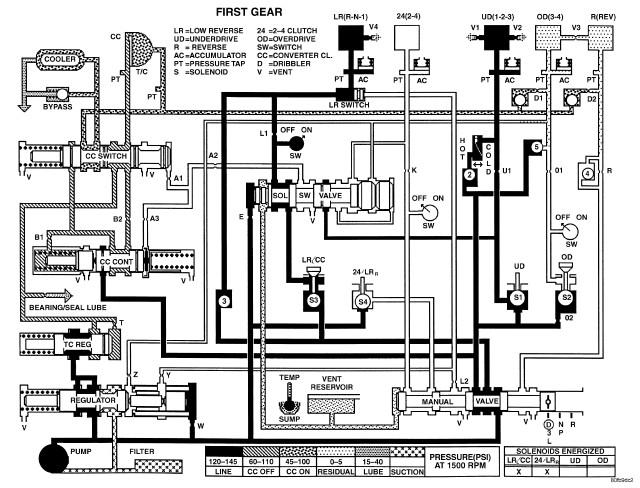

Fig 5: First Gear

Courtesy of CHRYSLER LLC

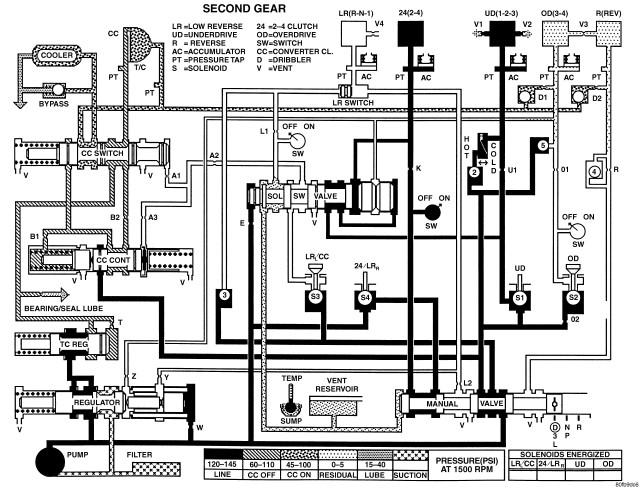

Fig 6: Second Gear

Courtesy of CHRYSLER LLC

Fig 7: Second Gear (EMCC)

Courtesy of CHRYSLER LLC

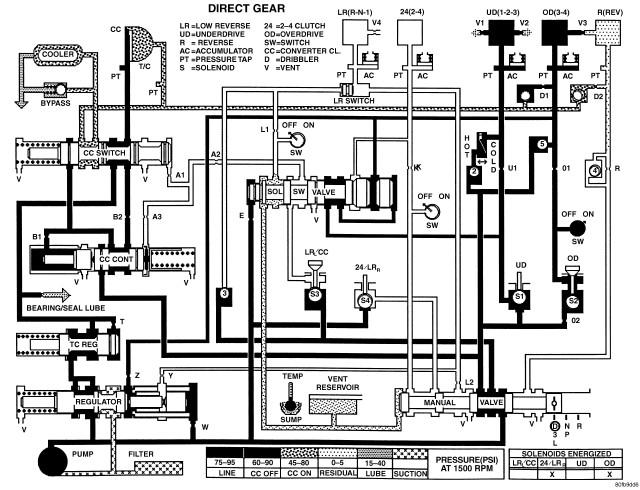

Fig 8: Direct Gear

Courtesy of CHRYSLER LLC

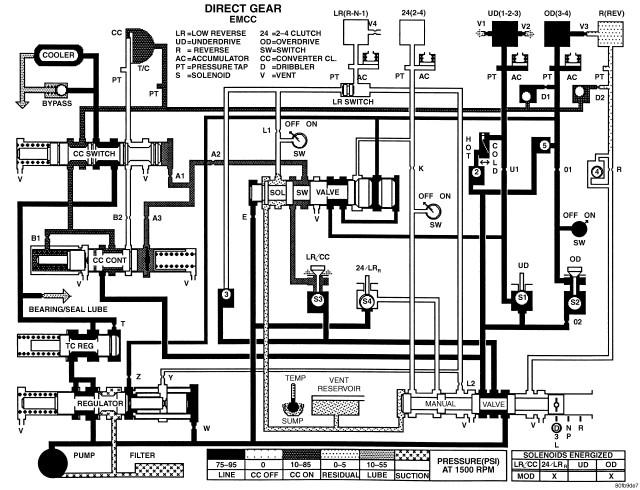

Fig 9: Direct Gear (EMCC)

Courtesy of CHRYSLER LLC

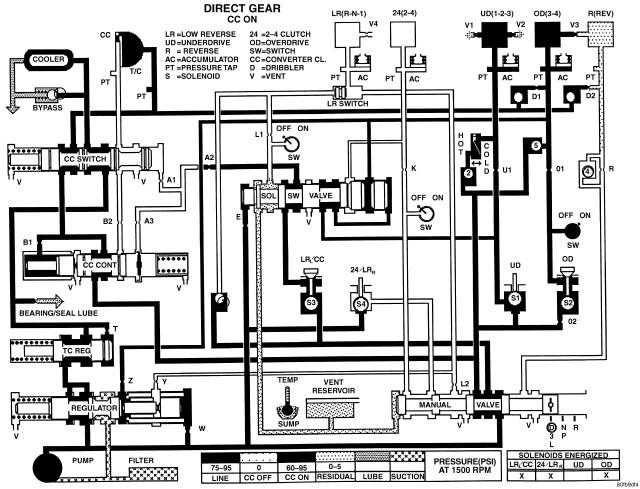

Fig 10: Direct Gear (CC On)

Courtesy of CHRYSLER LLC

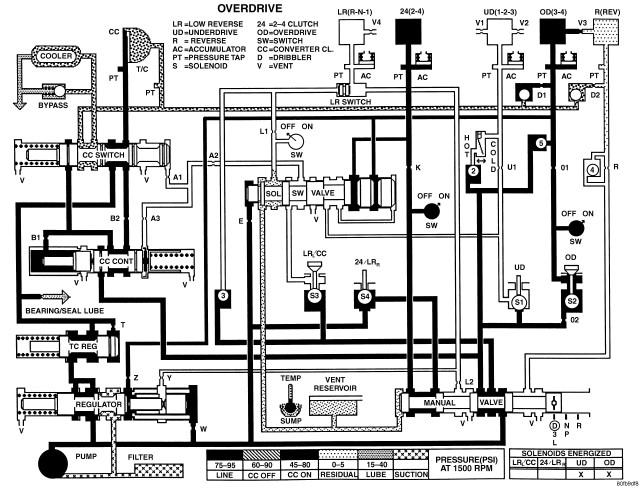

Fig 11: Overdrive

Courtesy of CHRYSLER LLC

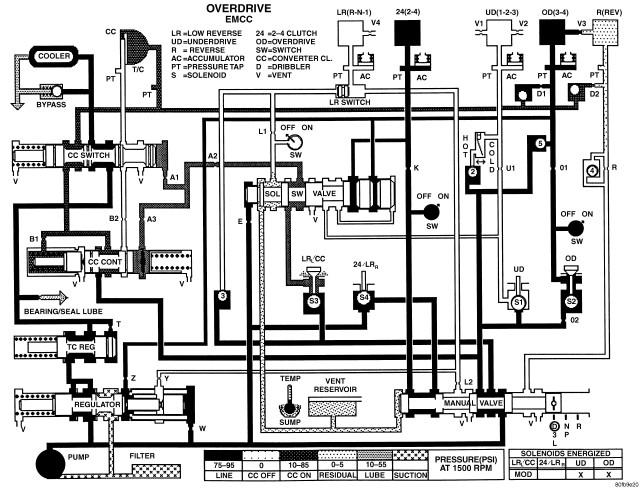

Fig 12: Overdrive (EMCC)

Courtesy of CHRYSLER LLC

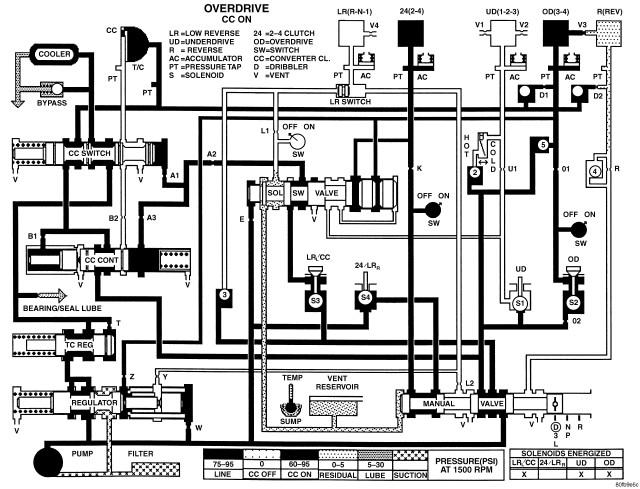

Fig 13: Overdrive (CC On)

Courtesy of CHRYSLER LLC
