42RLE - With Variable Line Pressure

WARNING: This page is about a different variant/trim than selected.

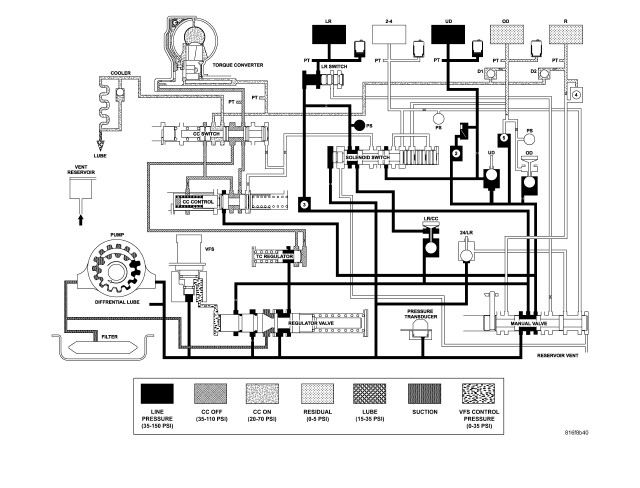

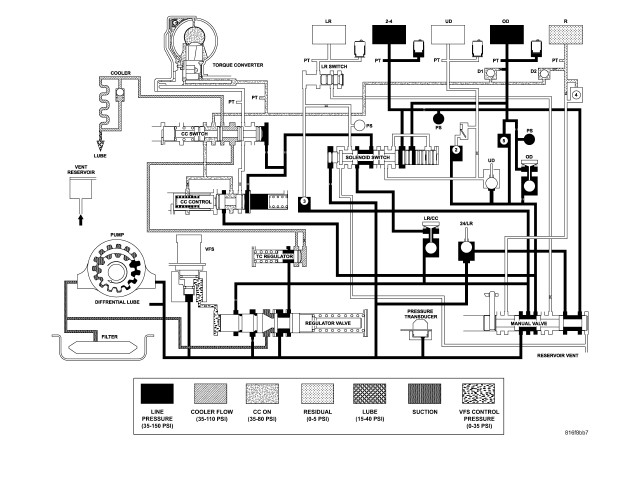

Fig 1: Park and Neutral

Courtesy of CHRYSLER LLC

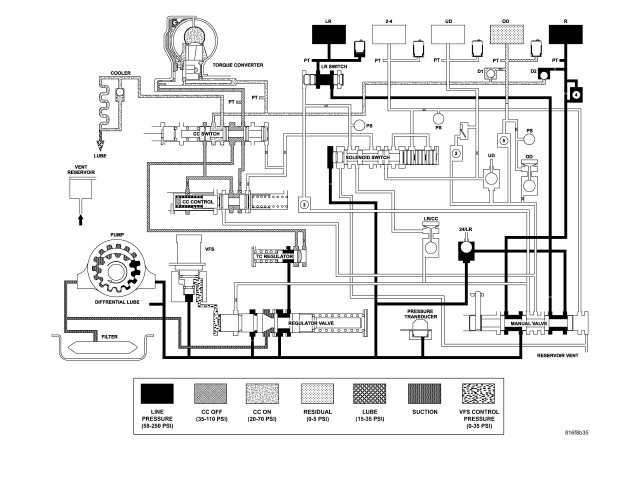

Fig 2: Reverse

Courtesy of CHRYSLER LLC

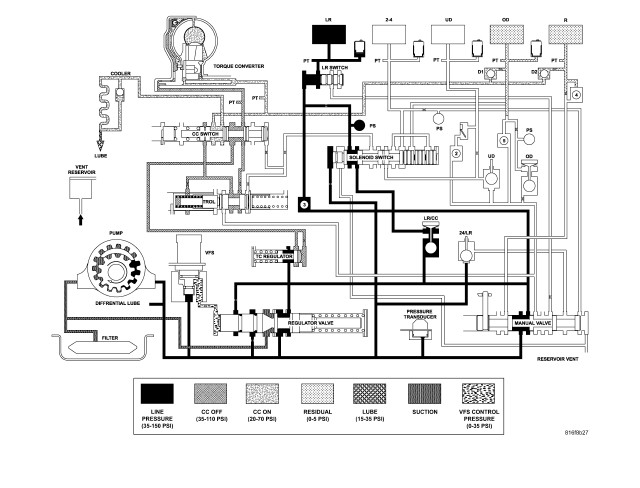

Fig 3: Drive - First Gear

Courtesy of CHRYSLER LLC

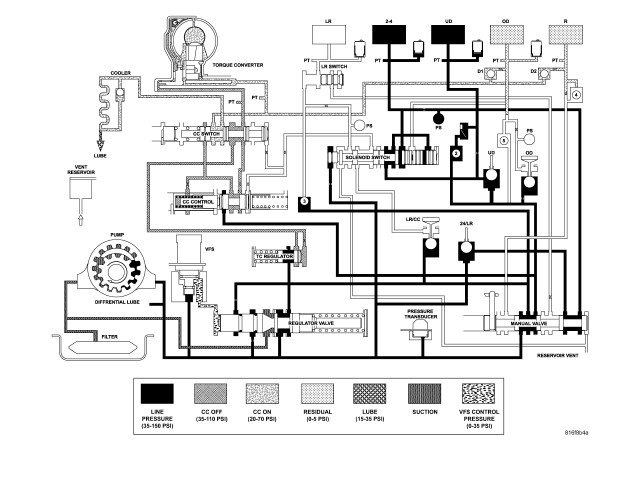

Fig 4: Drive - Second Gear

Courtesy of CHRYSLER LLC

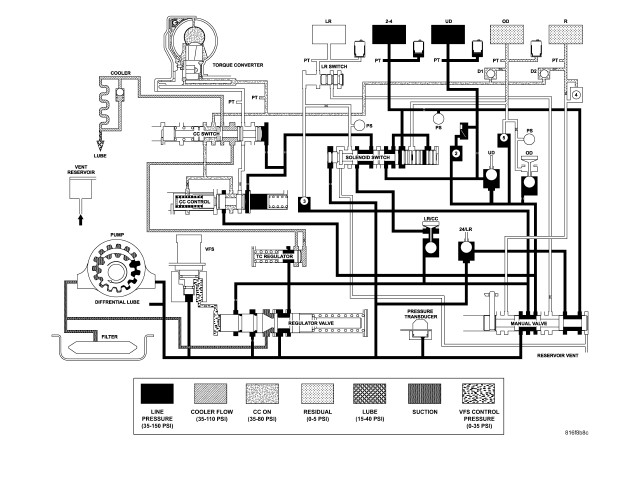

Fig 5: Drive - Second Gear EMCC

Courtesy of CHRYSLER LLC

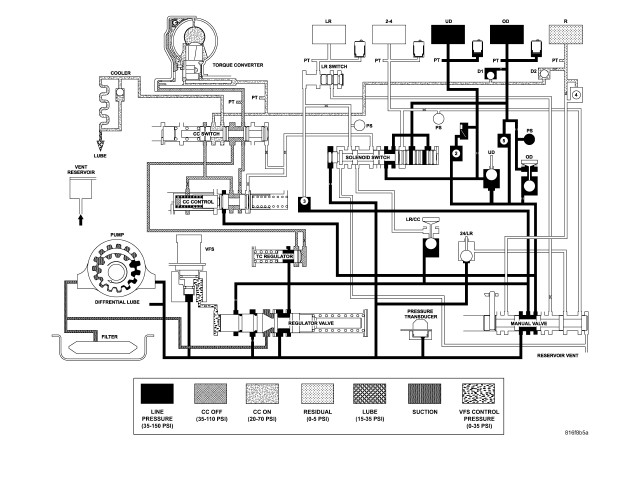

Fig 6: Drive - Direct Gear

Courtesy of CHRYSLER LLC

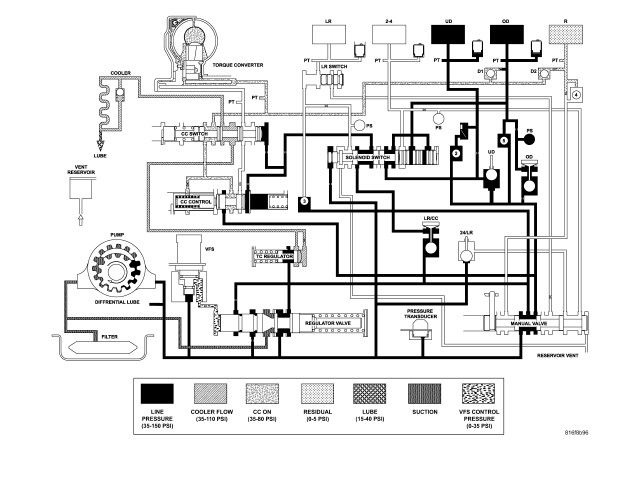

Fig 7: Drive - Direct Gear EMCC

Courtesy of CHRYSLER LLC

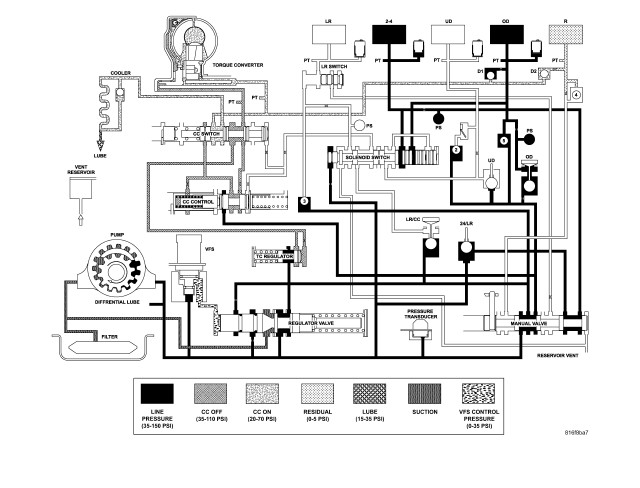

Fig 8: Drive - Fourth Gear (Overdrive)

Courtesy of CHRYSLER LLC

Fig 9: Drive - Fourth Gear (Overdrive) EMCC

Courtesy of CHRYSLER LLC
