SOLENOID, Pressure Control: Installation: Installation
WARNING: This page is about a different variant/trim than selected.

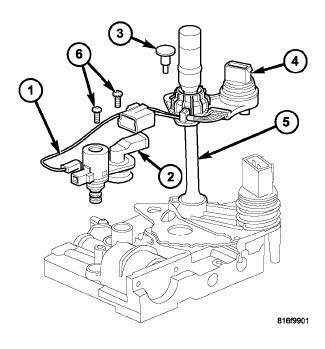

| 1 - PRESSURE CONTROL SOLENOID |
| 2 - LINE PRESSURE SENSOR |
| 3 - SHOULDER SCREW |
| 4 - VARIABLE LINE PRESSURE HEADER |
| 5 - MANUAL SHAFT |
| 6 - SCREWS |
- Install the pressure control solenoid (1) and line pressure sensor (2) into the valve body.
- Install the screws (6) to hold the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
- Install the electrical connectors to the pressure control solenoid (1) and the line pressure sensor (2).
- Install the valve body into the transmission. See Transmission and Transfer Case/Automatic - 42RLE/VALVE BODY - Installation .
