SENSOR, Transmission Range: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

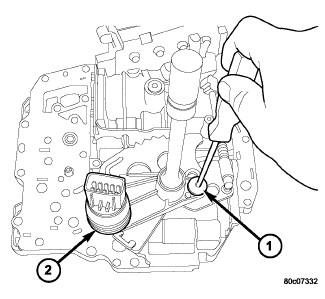

Fig 1: Manual Shaft Retaining Screw

Courtesy of CHRYSLER LLC

1 - SCREW

2 - TRS

Install the TRS (2) to the manual shaft. Make sure TRS locating pin rests in manual valve bore slot.
Install the TRS/manual shaft retaining screw (1) and torque to 5 N.m (45 in. lbs.) torque.

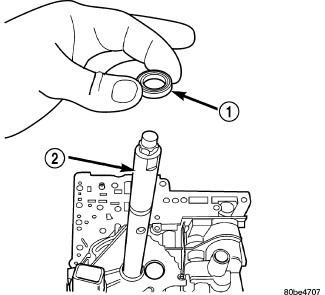

Fig 2: Manual Shaft Seal - Typical
Courtesy of CHRYSLER LLC

1 - SEAL

2 - MANUAL SHAFT
Install the manual shaft seal (1) .
Install valve body to the transmission. See Transmission and Transfer Case/Automatic - 42RLE/VALVE BODY - Installation .
