Section 2 (42RLE Automatic Transmission (Service Information)): Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If the transmission assembly is being reconditioned (clutch/seal replacement) or replaced, it is necessary to perform the Quick Learn Procedure using the scan tool. Refer to Electrical - Electronic Control Modules/Electronic Control Modules/MODULE, Transmission Control - Standard Procedure .

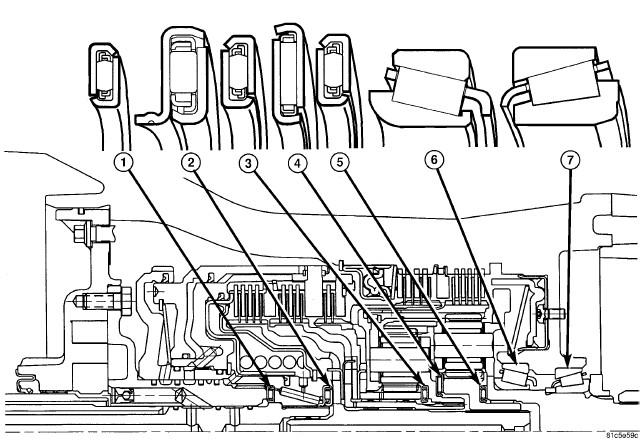

Fig 1: 42RLE BEARING ORIENTATION

Courtesy of CHRYSLER LLC

1 - THRUST BEARING NO. 1	5 - THRUST BEARING NO. 5
2 - THRUST BEARING NO. 2	6 - NEEDLE BEARING NO. 6
3 - THRUST BEARING NO. 3	7 - NEEDLE BEARING NO. 7
4 - THRUST BEARING NO. 4	-

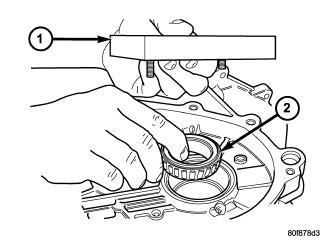

Fig 2: Bearing Cup Installation - Installer - 5050A

Courtesy of CHRYSLER LLC

Install the output bearing cups using Special Tool - 5050A.

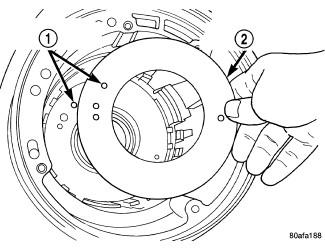

Fig 3: Installing Piston Retainer Gasket
Courtesy of CHRYSLER LLC

1 - GASKET HOLES MUST LINE UP

2 - LOW/REVERSE CLUTCH PISTON RETAINER GASKET
Install low/reverse piston retainer gasket (2).

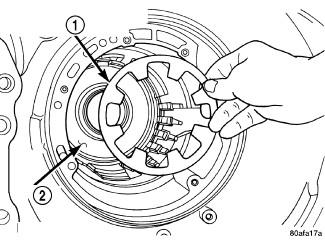

Fig 4: Removing/Installing Piston Retainer
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH PISTON RETAINER

2 - GASKET

Install low/reverse piston retainer (1).

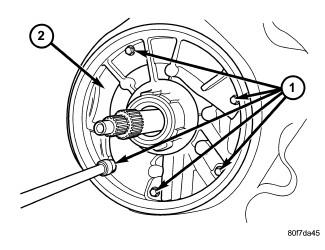

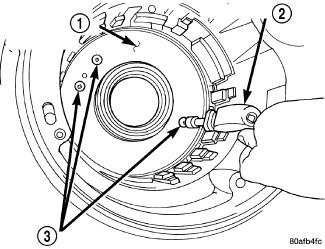

Fig 5: Installing Retainer Attaching Screws

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH PISTON RETAINER

2 - SCREWDRIVER

3 - TORX-LOC SCREWS

Install low/reverse piston retainer-to-case screws (3) and torque to 5 N.m (45 in. lbs.).

Fig 6: Removing/Installing Low/Reverse Clutch Piston

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH PISTON

2 - D-RING SEAL

3 - D-RING SEAL

NOTE: The Low/Reverse Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

Install low/reverse clutch piston (1).

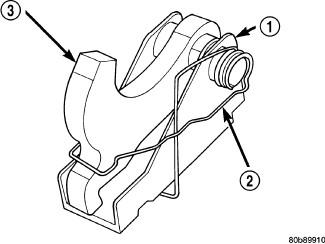

Fig 7: Guide Bracket

Courtesy of CHRYSLER LLC

1 - GUIDE BRACKET

2 - ANTIRATCHET SPRING (MUST BE ASSEMBLED AS SHOWN IN ILLUSTRATION)

3 - PAWL

Assemble guide bracket (1) assembly as shown in illustration, if necessary.

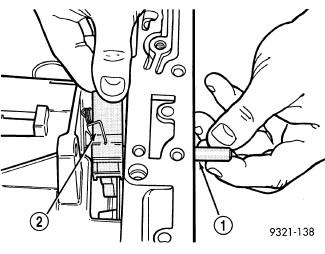

Fig 8: Removing/Installing Guide Bracket Pivot Shaft
Courtesy of CHRYSLER LLC

1 - PIVOT PIN

2 - GUIDE BRACKET ASSEMBLY

CAUTION: When installing, be sure guide bracket and split sleeve touch the rear of the transmission case.
Install guide bracket pivot pin (1).
Install park sprag pivot retaining screw and torque to 4.5 N.m (40 in. lbs.).

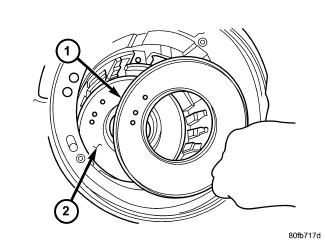

Fig 9: Installing Low/Reverse Piston Return Spring
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE PISTON RETURN SPRING

2 - PISTON

Install low/reverse piston belleville spring (1) into position.

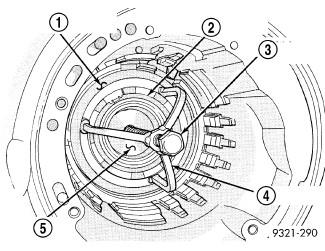

Fig 10: Compressor Tool in Use

Courtesy of CHRYSLER LLC

1 - LOW/REVERSE CLUTCH RETURN SPRING

2 - SNAP RING (INSTALL AS SHOWN IN ILLUSTRATION)

3 - TOOL 5058A-3

4 - TOOL 5059-A

5 - SPECIAL TOOL 6057

Install and load low/reverse spring compressor tool (3, 4, 5) as shown in illustration to facilitate snap ring (2) installation.

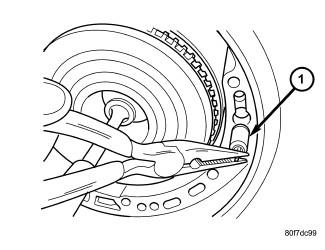

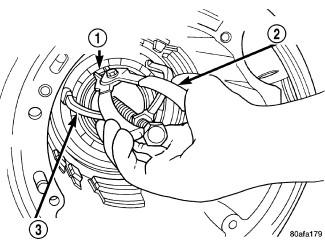

Fig 11: Installing Snap Ring

Courtesy of CHRYSLER LLC

1 - SNAP RING OPENING MUST BE BETWEEN SPRING LEVERS (AS SHOWN IN ILLUSTRATION)

2 - SNAP RING PLIERS

3 - TOOL 6057

Install snap ring (1) and remove compressor tool.

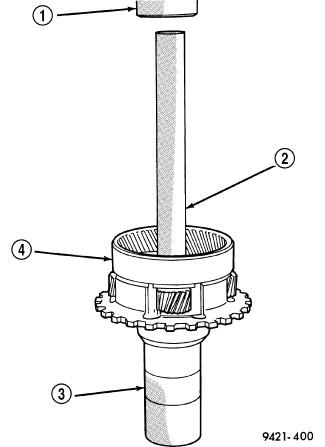

Fig 12: Installing Rear Carrier Front Bearing Cone

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS

2 - SPECIAL TOOL C-4171

3 - SPECIAL TOOL 6052

4 - REAR CARRIER

Install rear carrier (4) front bearing cone.

Fig 13: Bearing Installation
Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL 6618A

2 - REAR OUTPUT SHAFT BEARING

Check output bearing preload. Output bearing preload must be checked and/or adjusted if any of the following items have been replaced:
- Output shaft (rear carrier assembly)
- Output shaft bearings
- Transmission case
PRELOAD CHECK/SHIM SELECTION: Install rear output shaft bearing cone and Support Plate 6618A (1).

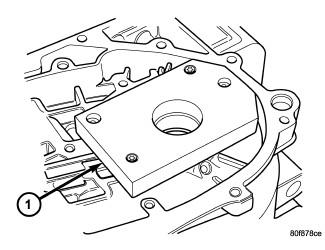

Fig 14: Special Tool Installed
Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL 6618A
Install Support Plate 6618A (1). Lightly tighten retaining screws. Screws should be below the plate surface, but do not snug screws.
Turn case over on arbor press so that the plate is resting on the press base. CAUTION: The output shaft will extend through the hole of Support Plate 6618A. Ensure your press table has clearance for the output shaft.

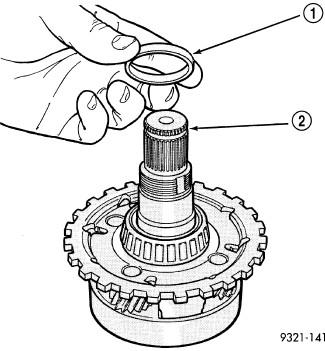

Fig 15: Shim Installation
Courtesy of CHRYSLER LLC

1 - SHIM

2 - OUTPUT SHAFT
Install shim (1) on output shaft (2). Apply small amount of petrolatum onto the shim to hold it in place. Use the original shim as a starting point. If original shim is not available, use the thickest shim available.

Fig 16: Press Shaft Into Case
Courtesy of CHRYSLER LLC

1 - SPECIAL TOOL C-4171 AND C-4171-2

2 - SPECIAL TOOL MD-998911

Install output shaft/rear carrier into rear bearing. The shaft must be pressed into position. Use special tool MD-998911 (Disc) (2) and C- 4171 and C4171-2 (Handle) (1) to press shaft into rear bearing.

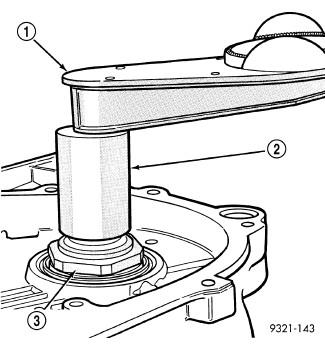

Fig 17: Checking Turning Torque

Courtesy of CHRYSLER LLC

1 - TORQUE WRENCH

2 - SPECIAL TOOL 6498A

3 - OUTPUT SHAFT NUT

CAUTION: Do not re-use old output shaft nut because the removed stake weakens the nut flange. Using special tools 6497 and 6498A, install new output shaft nut. Tighten new output shaft nut to 200 N.m (147 ft. lbs.).

Check the turning torque (1) of the output shaft. The shaft should have 1 to 8 in. lbs. of turning torque. If the turning torque is higher than 8 in. lbs., install a thicker shim. If turning torque is less than 1 in. lb., install a thinner shim. Make sure there is no end play.

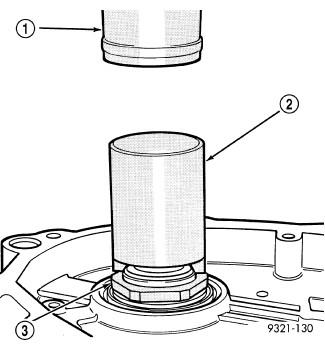

Fig 18: Staking Output Shaft Nut - Typical

Courtesy of CHRYSLER LLC

1 - ARBOR PRESS

2 - STAKING TOOL - 6639

3 - NEW NUT

CAUTION: Failure to stake nut could allow the nut to back-off during use.

The new nut (3) must be staked after the correct turning torque is obtained. Use Staking Tool 6639 (2) to stake output shaft nut.

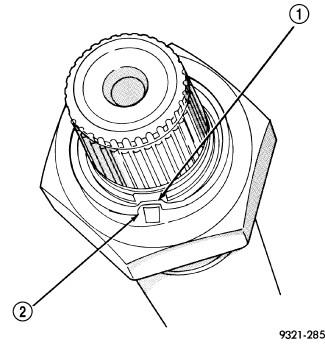

Fig 19: Properly Staked Nut
Courtesy of CHRYSLER LLC

1 - BOTTOMED IN SLOT

2 - CORRECTLY STAKED NUT
Verify that the nut has been properly staked (2) to the output shaft.
Install the snap ring onto the output shaft

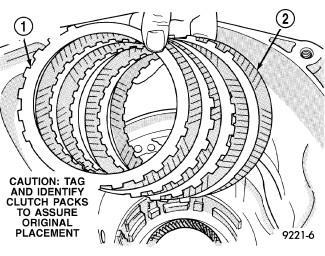

Fig 20: Removing/Installing Low/Reverse Clutch Pack
Courtesy of CHRYSLER LLC

1 - CLUTCH PLATES (5)

2 - CLUTCH DISCS (5)

Install low/reverse clutch pack (1, 2). Leave uppermost disc out to facilitate snap ring installation.

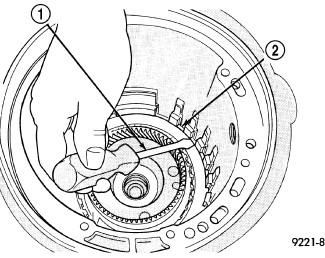

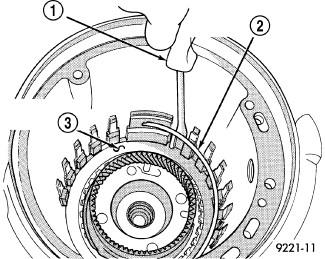

Fig 21: Removing/Installing Low/Reverse Reaction Plate Snap Ring

Courtesy of CHRYSLER LLC

1 - SCREWDRIVER

2 - LOW/REVERSE REACTION PLATE FLAT SNAP RING

3 - DO NOT SCRATCH CLUTCH PLATE

Install low/reverse reaction plate snap ring (2).

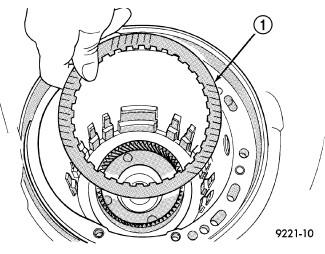

Fig 22: Removing/Installing One Disc
Courtesy of CHRYSLER LLC

1 - ONE DISC FROM LOW/REVERSE CLUTCH
Install one low/reverse clutch disc (1).

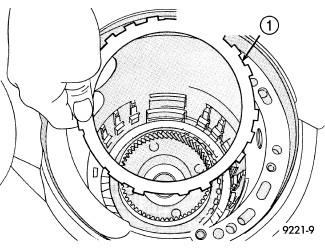

Fig 23: Installing Low/Reverse Reaction Plate
Courtesy of CHRYSLER LLC

1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
Install low/reverse reaction plate (1) with flat side up.

Fig 24: Snap Ring Installed
Courtesy of CHRYSLER LLC

1 - SCREWDRIVER

2 - TAPERED SNAP RING (INSTALL AS SHOWN IN ILLUSTRATION)
Install a new tapered snap ring (2) (tapered side out).

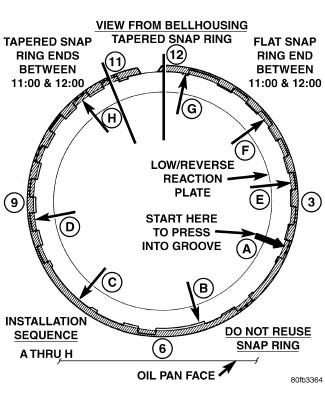

Fig 25: Tapered Snap Ring Instructions
Courtesy of CHRYSLER LLC

Make sure that the snap ring ends are oriented as shown in illustration.

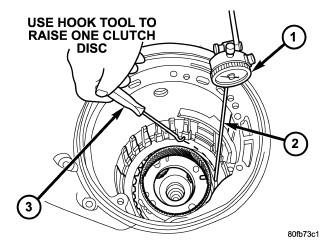

Fig 26: Check Low/Reverse Clutch Clearance

Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - DIAL INDICATOR TIP TOOL 6268

3 - HOOK TOOL

Measure low/reverse clutch pack. Set up dial indicator (1) as shown in illustration. Press down clutch pack with finger and zero dial indicator. Record measurement in four (4) places and take average reading. Low/Reverse clutch pack clearance is 0.84 to 1.60 mm (0.033 to 0.063 inch).
Select the proper low/reverse reaction plate to achieve specifications.

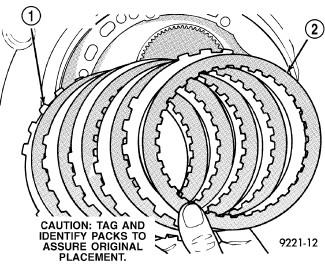

Fig 27: Removing/Installing 2/4 Clutch Pack
Courtesy of CHRYSLER LLC

1 - CLUTCH PLATE (4)

2 - CLUTCH DISC (4)
Install 2/4 clutch pack (1, 2).

Fig 28: Removing/Installing 2/4 Clutch Return Spring
Courtesy of CHRYSLER LLC

1 - 2/4 CLUTCH RETURN SPRING

NOTE: The 2/4 Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

Install 2/4 clutch belleville spring (1).

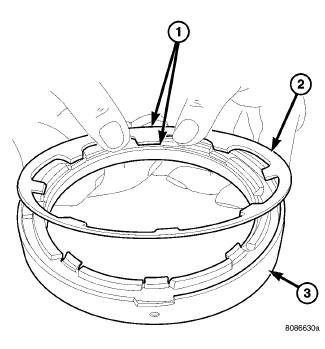

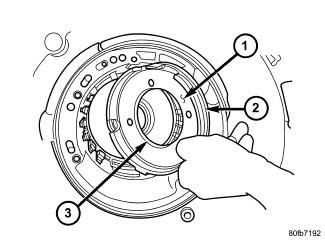

Fig 29: Proper Orientation of 2/4 Clutch

Courtesy of CHRYSLER LLC

1 - NOTE POSITION

2 - RETURN SPRING

3 - 2/4 CLUTCH RETAINER

Verify the proper orientation of the return spring (2) to the 2/4 retainer (3).

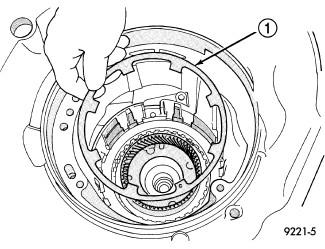

Fig 30: Installing 2/4 Clutch Retainer
Courtesy of CHRYSLER LLC

1 - 2/4 CLUTCH RETAINER

Install 2/4 clutch retainer (1).

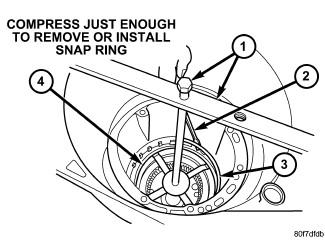

Fig 31: Removing/Installing 2/4 Clutch Retainer Snap Ring

Courtesy of CHRYSLER LLC

1 - TOOL 5058

2 - SCREWDRIVER

3 - SNAP RING

4 - 2/4 CLUTCH RETAINER

NOTE: Verify that Compressor Tool 5058A (1) is centered properly over the 2/4 clutch retainer (4) before compressing. If necessary, fasten the Compressor Tool 5058A bar to the bellhousing flange with any combination of locking pliers and bolts to center the tool properly.

Set up Tool 5058A (1) as shown in illustration. Compress 2/4 clutch just enough to facilitate snap ring installation.

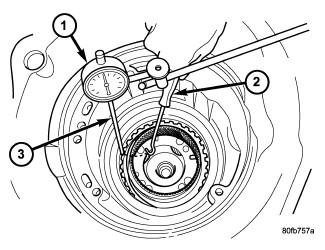

Fig 32: Check 2/4 Clutch Clearance

Courtesy of CHRYSLER LLC

1 - DIAL INDICATOR

2 - HOOK TOOL

3 - DIAL INDICATOR TIP TOOL 6268

Measure 2/4 clutch clearance: Set up dial indicator (1) as shown in illustration. Press down clutch pack with finger and zero dial indicator. Record measurement in four (4) places and take average reading. The 2/4 clutch pack clearance is 0.76 to 2.64 mm (0.030 to 0.104 inch). If not within specifications, the clutch is not assembled properly or is excessively worn. There is no adjustment for the 2/4 clutch clearance.

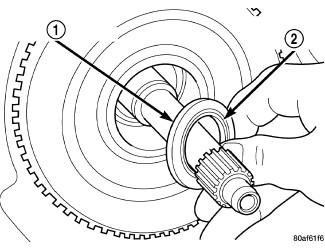

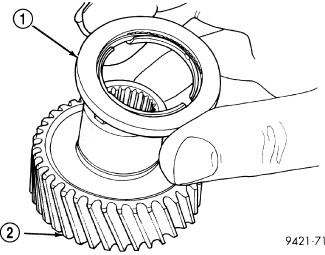

Fig 33: Number 7 Bearing
Courtesy of CHRYSLER LLC

1 - #7 BEARING

2 - REAR SUN GEAR
Install the #7 needle bearing (1) to the rear sun gear (2). The number 7 needle bearing has three antireversal tabs and is common with the number 5 and number 2 position. The orientation should allow the bearing to seat flat against the rear sun gear. A small amount of petrolatum can be used to hold the bearing to the rear sun gear.

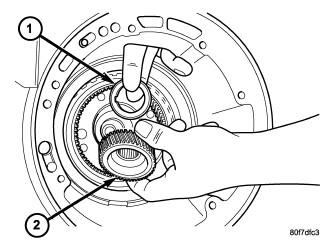

Fig 34: Removing/Installing Rear Sun Gear
Courtesy of CHRYSLER LLC

1 - #7 NEEDLE BEARING

2 - REAR SUN GEAR

Install rear sun gear (2) and #7 needle bearing (1).

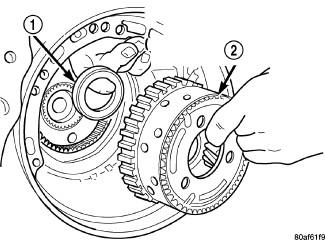

Fig 35: Removing/Installing Front Carrier/Rear Annulus

Courtesy of CHRYSLER LLC

1 - #6 NEEDLE BEARING

2 - FRONT CARRIER AND REAR ANNULUS ASSEMBLY (TWIST AND PULL OR PUSH TO REMOVE OR INSTALL).

Install front carrier/rear annulus assembly (2) and #6 needle bearing (1).

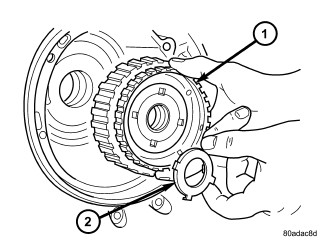

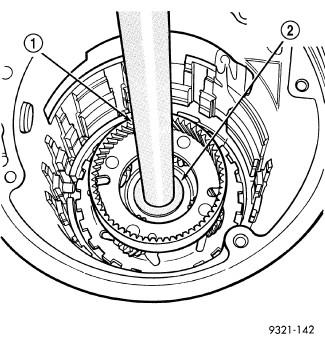

Fig 36: Removing/Installing Front Sun Gear Assembly
Courtesy of CHRYSLER LLC

1 - FRONT SUN GEAR ASSEMBLY

2 - #4 THRUST WASHER (FOUR TABS)

Install front sun gear assembly (1) and #4 thrust washer (2).

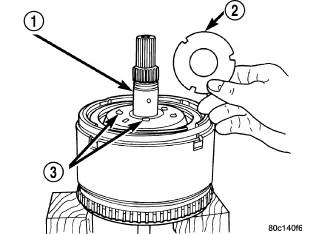

Fig 37: Removing/Installing #4 Thrust Plate

Courtesy of CHRYSLER LLC

1 - OVERDRIVE SHAFT ASSEMBLY

2 - #4 THRUST PLATE (SELECT)

3 - PETROLATUM FOR RETENTION

Determine proper #4 thrust plate thickness. Select the thinnest available #4 thrust plate.
Install #4 thrust plate (2) using petrolatum to hold into position.
Install input clutch assembly. Ensure the input clutch assembly is completely seated by viewing position through input speed sensor hole. If the speed sensor tone wheel is not centered in the opening, the input clutches assembly is not seated properly.

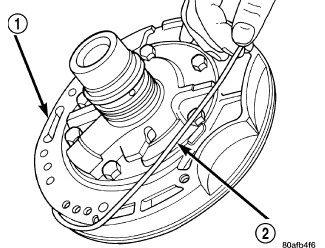

Fig 38: Removing Oil Pump O-Ring
Courtesy of CHRYSLER LLC

1 - OIL PUMP ASSEMBLY

2 - O-RING

Remove the oil pump o-ring (2) and install oil pump and gasket to transmission. Use screw-in dowels or phillips-head screwdrivers to align pump to case. Be sure to reinstall O-ring on oil pump after selecting the proper No. 4 thrust plate.

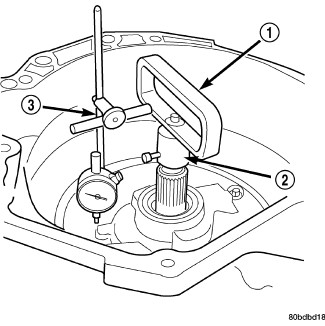

Fig 39: Measure Input Shaft End Play Using Tool 8266A - Typical

Courtesy of CHRYSLER LLC

1 - TOOL 8266-8

2 - TOOL 8266-2

3 - TOOL C-3339A

Measure the input shaft end play with the transmission in the vertical position. This will ensure that the measurement will be accurate.
Set up and measure endplay using End Play Set 8266A (1, 2) and Dial Indicator Set C-3339A (3) as shown in illustration.
Measure input shaft end play. Input shaft end play must be 0.127 to 0.635 mm (0.005 to 0.025 inch). For example, if end play reading is 0.055 inch, select No. 4 Thrust Plate which is 0.071 to 0.074 thick. This should provide an input shaft end play reading of 0.020 inch, which is within specifications.

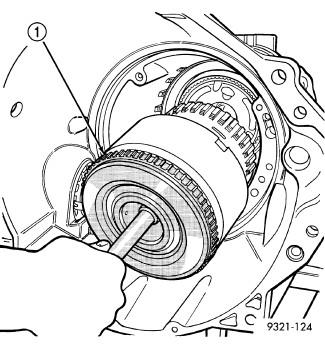

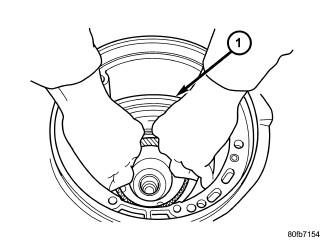

Fig 40: Removing/Installing Input Clutch Assembly
Courtesy of CHRYSLER LLC

1 - INPUT CLUTCH ASSEMBLY
Remove oil pump, gasket, and input clutch assembly to gain access to and install proper #4 thrust plate.
Install input clutch assembly (1) with proper thrust plate.

Fig 41: Removing/Installing No. 1 Caged Needle Bearing
Courtesy of CHRYSLER LLC

1 - #1 CAGED NEEDLE BEARING

2 - NOTE: TANGED SIDE OUT
Install #1 caged needle bearing (1).

Fig 42: Removing/Installing By-Pass Valve
Courtesy of CHRYSLER LLC

1 - BYPASS VALVE

CAUTION: By-pass valve MUST be replaced if transmission failure occurs.
Replace cooler by-pass valve (1) if transmission failure has occurred.
NOTE: To align oil pump, gasket, and case during installation, use threaded dowels or Phillips screwdrivers.

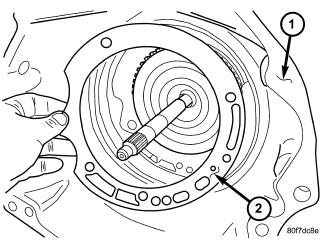

Fig 43: Removing/Installing Oil Pump Gasket
Courtesy of CHRYSLER LLC

1 - BELLHOUSING

2 - OIL PUMP GASKET
Install oil pump gasket (2).

Fig 44: Removing/Installing Oil Pump Attaching Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS

2 - OIL PUMP
Install oil pump (2) and torque oil pump-to-case bolts (1) to 30 N.m (265 in. lbs.). Do not reuse original oil pump bolts.

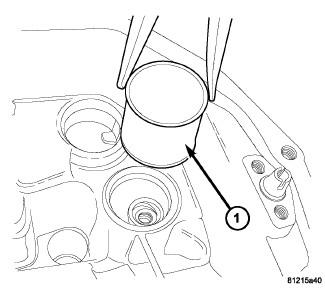

Fig 45: Low/Reverse Accumulator Piston
Courtesy of CHRYSLER LLC

1 - ACCUMULATOR PISTON
Install low/reverse accumulator (1) as shown in illustration.

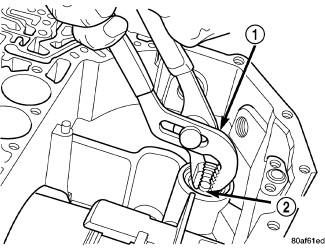

Fig 46: Removing/Installing Low/Reverse Accumulator Plug
Courtesy of CHRYSLER LLC

1 - ADJUSTABLE PLIERS

2 - PLUG
Install low/reverse accumulator plug (2).

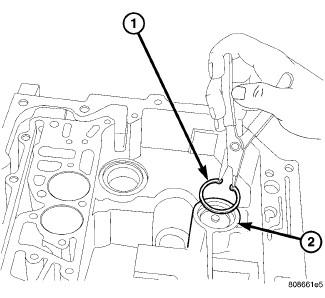

Fig 47: Removing/Installing Low/Reverse Accumulator
Courtesy of CHRYSLER LLC

1 - SNAP RING

2 - LOW/REVERSE ACCUMULATOR
Install low/reverse accumulator snap ring (1).

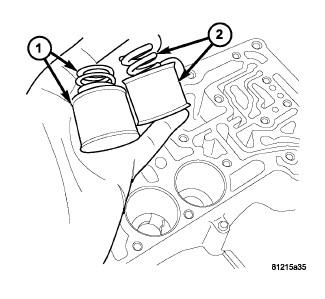

Fig 48: Underdrive and Overdrive Accumulators
Courtesy of CHRYSLER LLC

1 - OVERDRIVE PISTON AND SPRING

2 - UNDERDRIVE PISTON AND SPRING
Install underdrive (2) and overdrive (1) accumulators and springs.

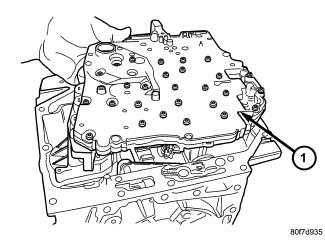

Fig 49: Removing/Installing Valve Body
Courtesy of CHRYSLER LLC

1 - VALVE BODY

CAUTION: Do not handle the valve body by the manual shaft. Damage could result.
Install valve body (1) into place as shown in illustration.

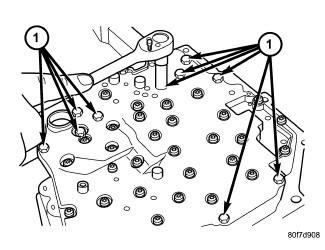

Fig 50: Removing/Installing Valve Body Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS
Install seven (7) valve body-to-case bolts (1) and torque to 12 N.m (105 in. lbs.).

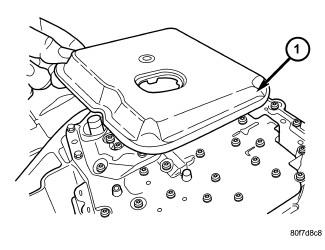

Fig 51: Removing/Installing Transmission Filter
Courtesy of CHRYSLER LLC

1 - TRANSMISSION FILTER
Install transmission oil filter (1) and o-ring. Tighten the bolts to 5 N.m (45 in. lbs.).
If necessary, install a new transmission fill tube grommet into the transmission case with Installer 8254.

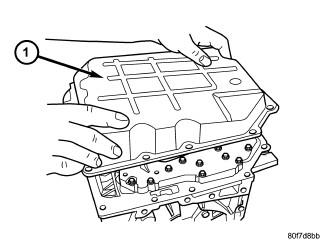

Fig 52: Removing/Installing Transmission Oil Pan
Courtesy of CHRYSLER LLC

1 - TRANSMISSION OIL PAN

Install transmission oil pan (1) with a bead of Mopar® ATF RTV.

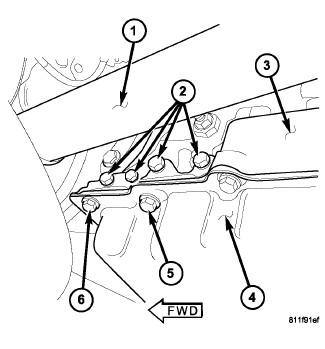

Fig 53: Pan Fastener

Courtesy of CHRYSLER LLC

1 - FRONT DRIVESHAFT

2 - PRESSURE PORTS

3 - TRANSMISSION CASE

4 - TRANSMISSION OIL PAN

5 - SECOND TRANSMISSION OIL PAN BOLT ON LEFT SIDE

6 - FIRST TRANSMISSION OIL PAN BOLT

NOTE: Before installing the oil pan bolt in the bolt hole located between the torque converter clutch on and U/D clutch pressure tap circuits , it will be necessary to replenish the sealing patch on the bolt using Mopar® Lock AND Seal Adhesive.

Install and torque the oil pan-to-case bolts to 20 N.m (14.5 ft. lbs.).

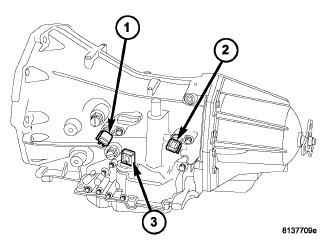

Fig 54: Input Speed Sensor

Courtesy of CHRYSLER LLC

1 - INPUT SPEED SENSOR

2 - OUTPUT SPEED SENSOR

3 - TRANSMISSION RANGE SENSOR

NOTE: Before installing either speed sensor bolt, it will be necessary to replenish the sealing patch on the bolt using Mopar® Lock AND Seal Adhesive.

Install both speed sensors (1, 2) into the transmission case. Torque the speed sensor bolts to 9 N.m (80 in. lbs.).

Fig 55: Measure Input Shaft End Play Using Tool 8266 - Typical

Courtesy of CHRYSLER LLC

1 - TOOL 8266-8

2 - TOOL 8266-2

3 - TOOL C-3339

As a final check of the transmission, measure the input shaft end play. This will indicate when a #4 thrust plate change is required. The #4 thrust plate is located behind the overdrive clutch hub. Attach a dial indicator to transmission bell housing with its plunger seated against end of input shaft. Move input shaft in and out to obtain end play reading. Input shaft end play must be 0.127 to 0.635 mm (0.005 to 0.025 inch). If not within specifications, make the necessary thrust plate adjustment.

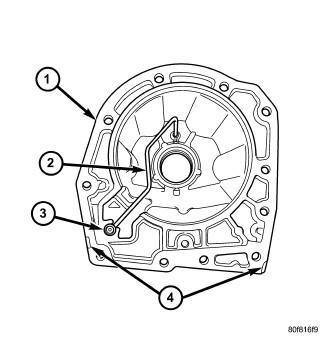

Fig 56: Lube Tube Grommet

Courtesy of CHRYSLER LLC

1 - HOUSING

2 - LUBE TUBE

3 - GROMMET

4 - PRY SLOTS

Inspect the lube tube grommet (2) for damage. If the grommet lip is damaged, it will need to be replaced.

Fig 57: Installing Output Shaft Bearing

Courtesy of CHRYSLER LLC

1 - BEARING INSTALLER 9287

2 - BEARING

3 - TRANSMISSION CASE

Install output shaft bearing in the rear transmission housing. Using Bearing Installer 9287 (1) , install the output shaft bearing (2) into the transmission housing. The closed side of the plastic cage must point towards the transmission.

Fig 58: Removing/Installing Rear Output Shaft Retaining Ring
Courtesy of CHRYSLER LLC

1 - RETAINING RING

2 - OUTPUT SHAFT BEARING
Install the snap-ring into the groove in the output shaft.
Install the output shaft into the output shaft bearing.
Install the retaining ring (1). Ensure that the retaining ring is seated correctly in the groove.
Install the output shaft washer onto the output shaft.

Fig 59: Installing Output Shaft Seal
Courtesy of CHRYSLER LLC

1 - SEAL INSTALLER 8902A

2 - TRANSMISSION CASE
Install a new transmission rear seal into the transmission case with Seal Installer 8902A (1).
Install the propeller shaft flange onto the output shaft and install an new flange nut finger tight.

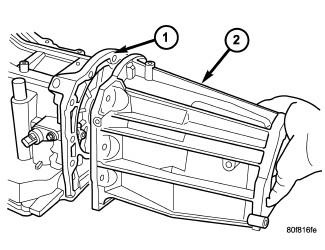

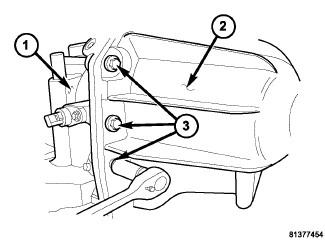

Fig 60: Removing Extension Housing
Courtesy of CHRYSLER LLC
Install the extension housing (2) onto the transmission case.

Fig 61: Removing/Installing Adapter/Extension Housing Bolts
Courtesy of CHRYSLER LLC

NOTE: Before installing the lowermost four extension housing bolts, it will be necessary to replenish the sealing patch on the bolts using Mopar® Lock AND Seal Adhesive.

Install the bolts that hold the extension housing onto the transmission case. Be sure to install any stud bolts to their original locations. Tighten the bolts to 54 N.m (40 ft.lbs.).

Fig 62: Align Staking Tool 9078

Courtesy of CHRYSLER LLC

1 - PROPELLER SHAFT FLANGE

2 - STAKING TOOL 9078

3 - ALIGNMENT PIN

4 - OUTPUT SHAFT NOTCH

Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut. Tighten the flange nut to 200 N.m (147 ft.lbs.).
Stake the output shaft nut to the output shaft as follows. Place the Staking Tool 9078 (2) and Driver Handle C-4171 onto the output shaft.

Rotate the Staking Tool 9078 (2) until the alignment pin (3) engages the output shaft notch (4).

Fig 63: Stake Output Shaft Nut

Courtesy of CHRYSLER LLC

1 - STAKING TOOL 9078

2 - PROPELLER FLANGE

3 - STAKING PIN

Press downward on the staking tool (1) until the staking pin (3) contacts the output shaft nut flange (2).
Strike the Driver handle C-4171 with a suitable hammer until the output shaft nut is securely staked to the output shaft.
