ASSEMBLY, Transmission Solenoid and Pressure Switch: Description: Description
WARNING: This page is about a different variant/trim than selected.

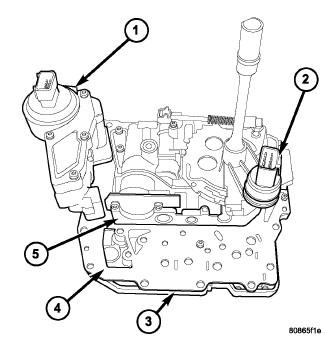

| 1 - SOLENOID/PRESSURE SWITCH ASSEMBLY |
| 2 - TRS |
| 3 - TRANSFER PLATE |
| 4 - SEPARATOR PLATE |
| 5 - VALVE BODY |
The Solenoid/Pressure Switch Assembly (1) is inside the transmission and mounted to the valve body assembly. The assembly consists of four solenoids that control hydraulic pressure to the L/R, 2/4, OD, and UD friction elements (transmission clutches), and the torque converter clutch. The reverse clutch is controlled by line pressure from the manual valve in the valve body. The solenoids are contained within the Solenoid/Pressure Switch Assembly, and can only be serviced by replacing the assembly.
The solenoid assembly also contains pressure switches that monitor and send hydraulic circuit information to the TCM. Likewise, the pressure switches can only be service by replacing the assembly.
