Crankshaft Sprocket

WARNING: This page is about a different variant/trim than selected.

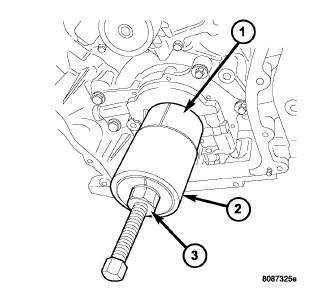

Fig 1: Crankshaft Sprocket - Removal
GC0081662Courtesy of CHRYSLER LLC
  1. Remove primary timing chain. See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Removal .
    CAUTION: Use care not to turn crankshaft while removing crankshaft sprocket, as damage to valves and or pistons could occur.
  2. Remove crankshaft sprocket by first installing the crankshaft damper bolt. Apply grease or equivalent to damper bolt head and position Special Tools 5048-1(3), 5048-6 (2), and 8539 (1) on sprocket and crankshaft nose. Remove sprocket using care not to rotate the crankshaft.
