Crankshaft Sprocket

WARNING: This page is about a different variant/trim than selected.

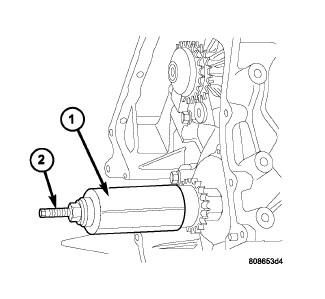

Fig 1: Crankshaft Sprocket - Installation
GC0095447Courtesy of CHRYSLER LLC
  1. Install crankshaft sprocket using Special Tools 6780-1 (1) and 8179 (2) until sprocket bottoms against crankshaft step flange. Use care not to rotate crankshaft.

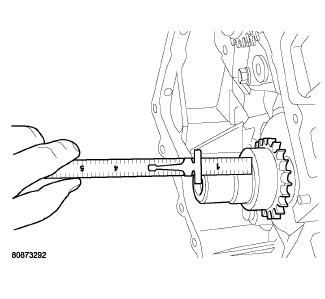

    Fig 2: Crankshaft Sprocket Depth Measurement
    GC0081665Courtesy of CHRYSLER LLC
  2. Verify that crankshaft sprocket is installed to proper depth by measuring from sprocket outer face to end of crankshaft. Measurement should read: 39.05 ±0.50 mm (1.5374 ±0.020 in.).
  3. Install primary timing chain. See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Installation .
