Right Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.

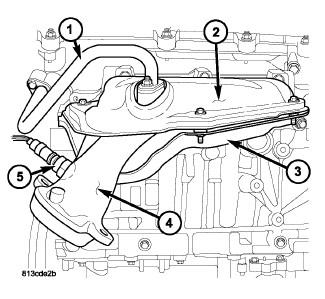

Fig 1: RIGHT EXHAUST MANIFOLD
GC0081660Courtesy of CHRYSLER LLC
  1. Install exhaust manifold gasket and manifold (4). Tighten bolts working from center outwards to 23 N.m (200 in. lbs.).
  2. Install exhaust pipe to manifold. Refer to Exhaust System/CONVERTER, Catalytic - Installation .
  3. Install lower heat shield (3) and upper heat shield (2).
  4. Install oxygen sensor (5) and connect electrical connector.
  5. Connect down stream oxygen sensor electrical connector.
  6. Lower vehicle.
  7. Install EGR tube (1) using new gaskets. Tighten screws to 11 N.m (95 in. lbs.).
    Fig 2: Locating Battery
    GC0081581Courtesy of CHRYSLER LLC
  8. Connect negative battery (1) cable.
