Left Exhaust Manifold

WARNING: This page is about a different variant/trim than selected.
Fig 1: Locating Battery
GC0081581Courtesy of CHRYSLER LLC
  1. Disconnect negative battery (1) cable.

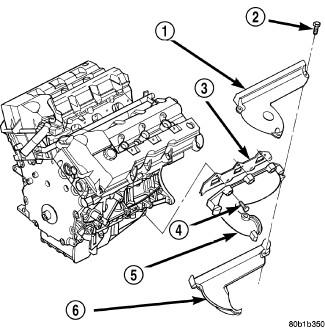

    Fig 2: Exhaust Manifold Gasket & Heat Shields
    GC0095439Courtesy of CHRYSLER LLC
  2. Raise vehicle on hoist.
  3. Install exhaust manifold gasket (3) and manifold (4). Tighten bolts starting at the center working outward to 23 N.m (200 in. lbs.).
  4. Instal manifold lower heat shield (6) and upper heat shield (1). Tighten fasteners to 28 N.m (250 in. lbs.).
  5. Install exhaust pipes to manifolds. Refer to Exhaust System/CONVERTER, Catalytic - Installation .
  6. Connect down stream oxygen sensor connectors.
  7. Lower vehicle.

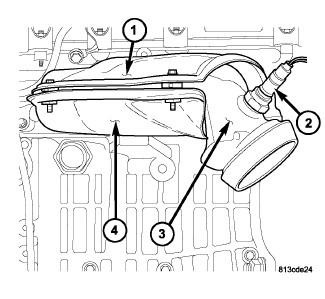

    Fig 3: LEFT EXHAUST MANIFOLD
    GC0095438Courtesy of CHRYSLER LLC
  8. Install oxygen sensor (2) and connect electrical connector.
    Fig 4: Locating Battery
    GC0081581Courtesy of CHRYSLER LLC
  9. Connect negative battery (1) cable.
