INSULATOR, Engine Mount, Left: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

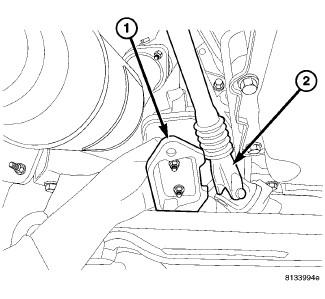

Fig 1: MOUNT REMOVAL/INSTALLATION

Courtesy of CHRYSLER LLC

Install engine mount isolator (1) in place.

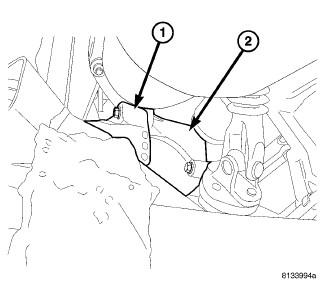

Fig 2: Left Mount Adapter
Courtesy of CHRYSLER LLC
Attach left engine mount isolator (1) to engine mount adapter (2). Install bolts and tighten to 75 N.m (55 ft. lbs.).
Lower engine but do not do not let mount contact frame.
Install engine mount studs and tighten to 12 N.m (106 in. lbs.).

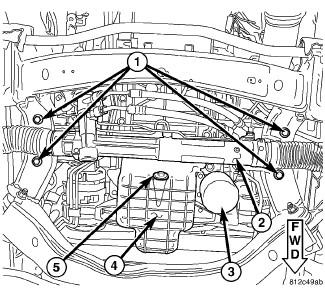

Fig 3: Identifying Engine Mounts, Oil Pan, Drain Plug & Oil Filter
Courtesy of CHRYSLER LLC
Lower engine and remove lifting device.
Tighten engine mount isolator nuts (1) to 75 N.m (55 ft. lbs.).

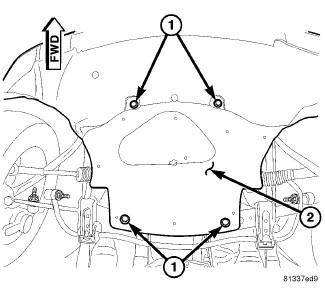

Fig 4: Lower Splash Shield
Courtesy of CHRYSLER LLC
Install lower splash shield (2) and tighten retaining bolts (1).
Lower vehicle.

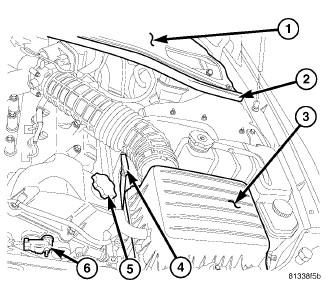

Fig 5: AIR CLEANER HOUSING
Courtesy of CHRYSLER LLC
Install air cleaner housing assembly (3). See Engine/Air Intake System/BODY, Air Cleaner - Installation .

Fig 6: Locating Battery
Courtesy of CHRYSLER LLC
Connect negative battery (1) cable.
