Engine Block: FLEXPLATE: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

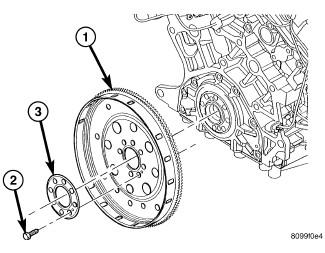

Fig 1: FLEX PLATE
GC0095421Courtesy of CHRYSLER LLC
  1. Position the flex plate (1) with backing plate (3) on the crankshaft.
  2. Apply Mopar® Lock AND Seal Adhesive to the eight flex plate bolts (2).
  3. Install the flex plate bolts (2). Tighten the bolts to 95 N.m (70 ft. lbs.).
  4. Install the transmission. Refer to Transmission and Transfer Case/Automatic - 42RLE - Installation .
    NOTE: The Cam/Crank Variation Relearn procedure must be performed anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
