VALVES, Intake and Exhaust: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

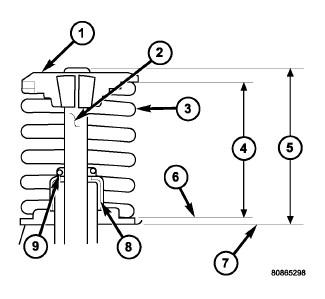

Fig 1: Valve Tip Height & Valve Spring Installed Height
GC0081617Courtesy of CHRYSLER LLC
  1. Coat valve stems (2) with clean engine oil and insert them in cylinder head.
  2. If valves or seats have been reground, check valve tip height (5). If valve tip height (5) for intake valve is greater than 47.836 mm (1.883 in.) or 47.837 mm (1.883 in.) for exhaust valve, grind valve tip until within specifications. Make sure measurement is taken from cylinder head surface (7) to the top of valve stem (2).
  3. Install valve stem seals (8). See Engine/Cylinder Head/SEAL(S), Valve Guide - Installation .
  4. After installing valve stem seals, make sure the garter spring (9) is in place.
  5. Install valve spring (3). See Engine/Cylinder Head/SPRING(S), Valve - Installation .
