ROCKER ARM, Valve: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

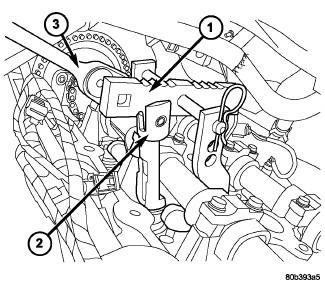

Fig 1: Rocker Arm - Removal/Installation - 2.7L
GC0081620Courtesy of CHRYSLER LLC
  1. Remove cylinder head cover(s). See Engine/Cylinder Head/COVER(S), Cylinder Head - Removal .
    CAUTION: Always rotate engine by turning the crankshaft. Failure to do so will result in valve and/or piston damage.
  2. Rotate engine until the cam lobe is on its base circle (heel), on the rocker arm being removed.
    CAUTION: Depress valve spring only enough to remove rocker arm.
  3. Using Special Tools 8215A (1) and 8216A Adaptor (2) and a 3/8" ratchet (3), depress valve spring only enough to release tension on rocker arm.
  4. Remove rocker arm from cylinder head.
    CAUTION: If rocker arms are to be reused, identify position of rocker arms for reassembly in their original positions.
  5. Repeat procedure for each rocker arm removed.
  6. Inspect the rocker arm for wear or damage. See Engine/Cylinder Head/CAMSHAFT, Engine - Inspection .
