COVER(S), Cylinder Head: Installation: Left

WARNING: This page is about a different variant/trim than selected.

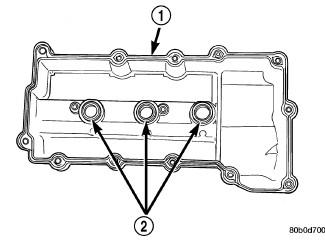

Fig 1: Cylinder Head Cover Gasket & Spark Plug Seals
GC0095406Courtesy of CHRYSLER LLC
  1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gaskets (1) and (2) as necessary.
    Fig 2: Cylinder Head Covers
    GC0095405Courtesy of CHRYSLER LLC
  2. Install cylinder head cover and hand start all fasteners. Verify that all double-ended studs are in the correct locations.
  3. Tighten cylinder head cover attaching bolts and double-ended studs to 12 N.m (105 in. lbs.).

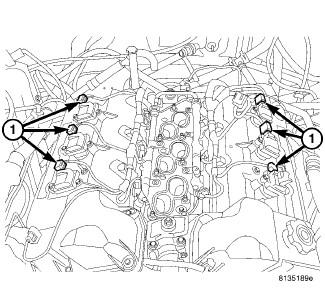

    Fig 3: COIL CONNECTORS
    GC0081610Courtesy of CHRYSLER LLC
  4. Install ignition coils (1).

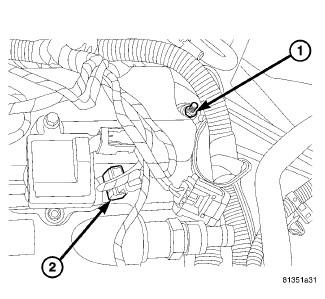

    Fig 4: CAPACITOR CONNECTOR - LEFT
    GC0081611Courtesy of CHRYSLER LLC
  5. Install ignition coil capacitor (2) and fastener.
  6. Install ground strap (1) to cylinder head cover stud.
  7. Connect all electrical connectors and harness clips.
  8. Connect make up air hose.
  9. Install upper intake manifold. See Engine/Manifolds/MANIFOLD, Intake - Installation .
    Fig 5: Locating Battery
    GC0081581Courtesy of CHRYSLER LLC
  10. Connect negative battery (1) cable.
