Circuit Schematic

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

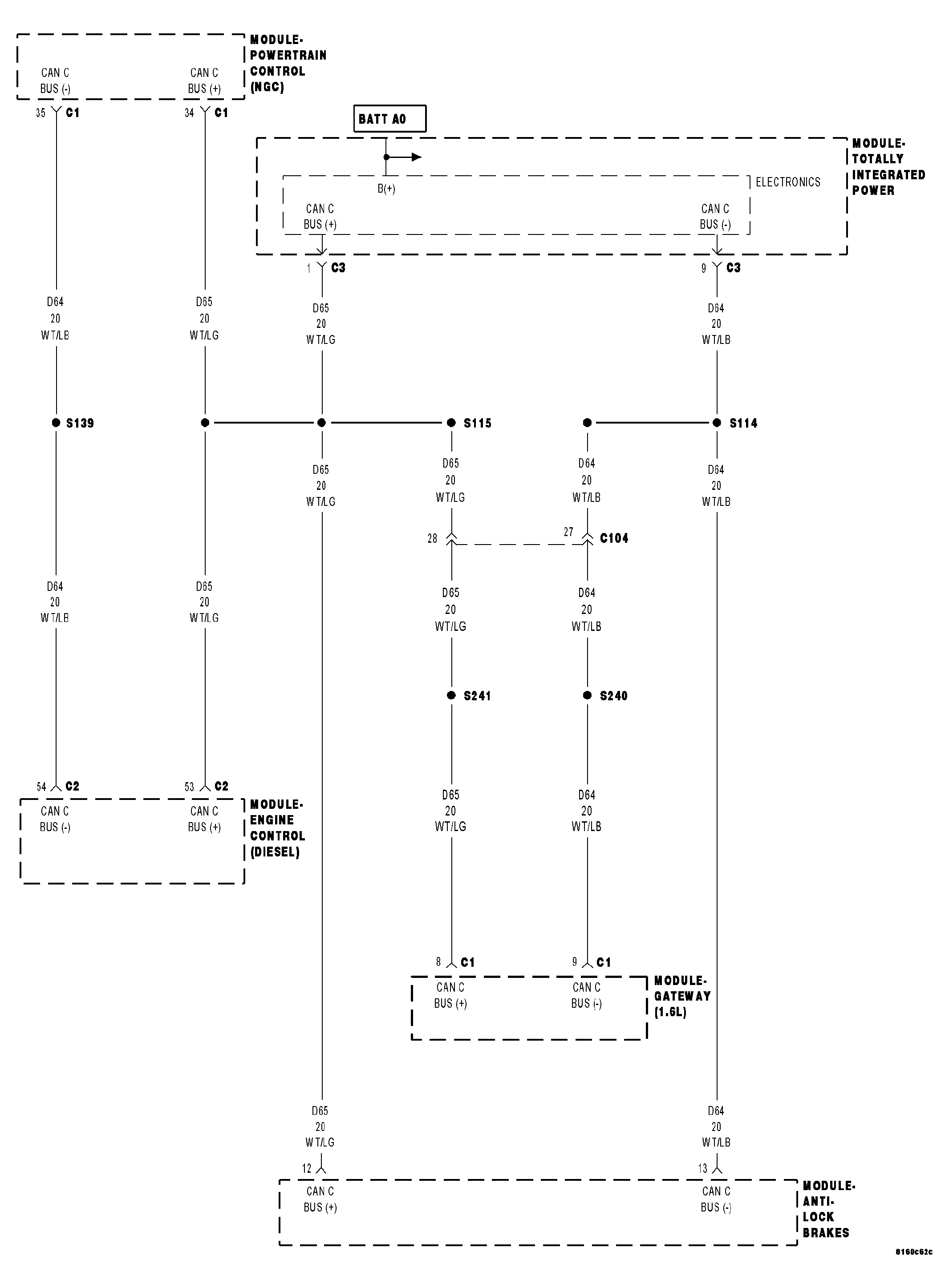

Fig 1: CAN C BUS CIRCUIT SCHEMATIC
GC0043382Courtesy of DAIMLERCHRYSLER CORP.
