Vehicle Lead/Pull

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Use the following chart for diagnosis. See Fig 1.

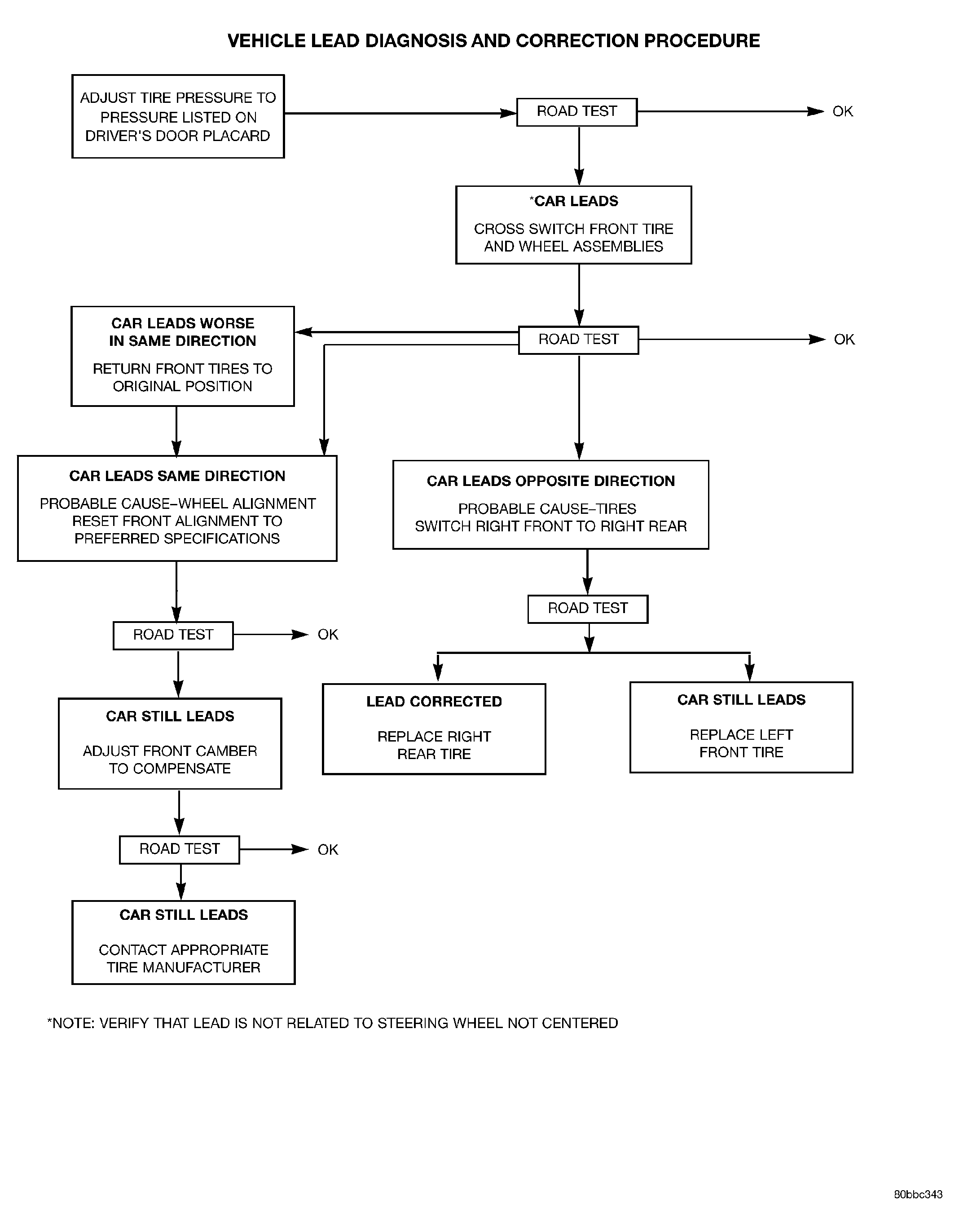

Fig 1: Vehicle Lead Diagnosis And Correction Procedure
GC0019587Courtesy of DAIMLERCHRYSLER CORP.
