Wheel Alignment: Description: Camber

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

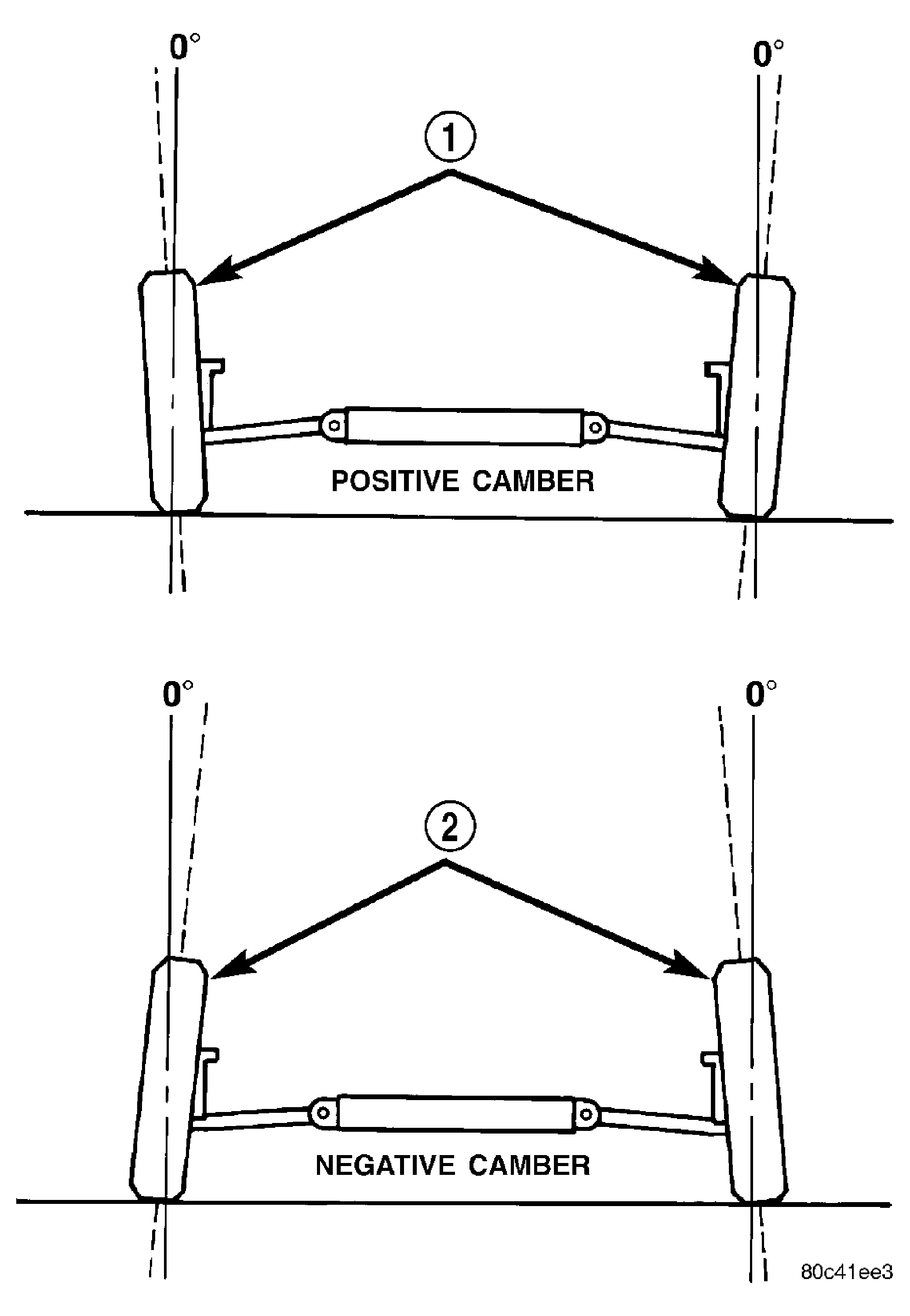

Fig 1: Camber

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEELS TILTED OUT AT TOP

2 - WHEELS TILTED IN AT TOP

Camber is the inward or outward tilt of the top of the tire and wheel assembly. Inward tilt (2) is known as negative camber. Outward tilt (1) is known as positive camber. Camber is measured in degrees of angle relative to a true vertical line. Camber is a tire wearing angle.

Excessive negative camber will cause tread wear at the inside of the tire.
Excessive positive camber will cause tread wear on the outside of the tire.
