Arm-Lower Control: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

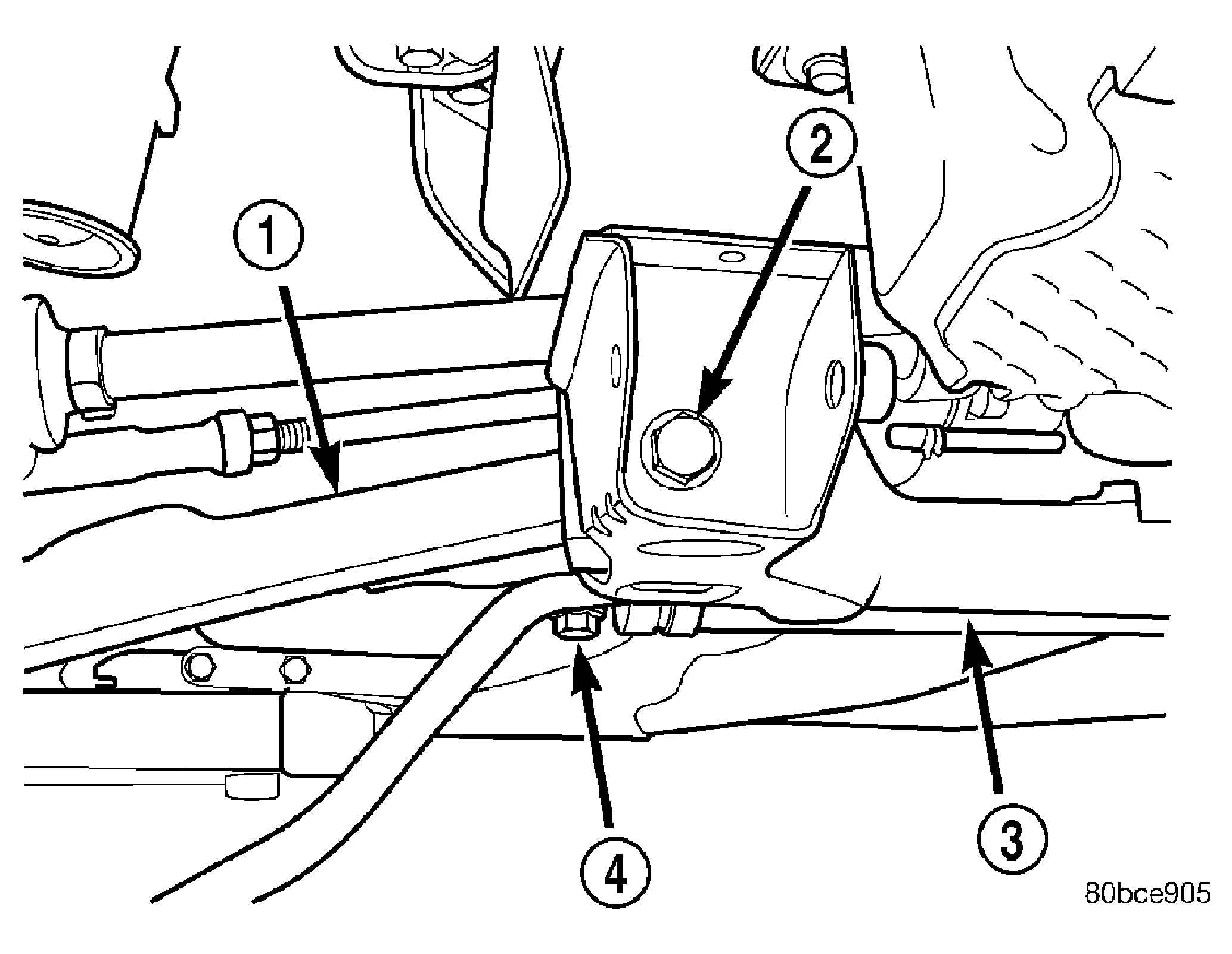

Fig 1: Lower Control Arm Attaching Bolts
GC0020977Courtesy of DAIMLERCHRYSLER CORP.
1 - LOWER CONTROL ARM
2 - FRONT BOLT
3 - CROSSMEMBER
4 - REAR BOLT
  1. Place the lower control arm (1) into the front suspension crossmember (3).
  2. Install, but do not fully tighten, the rear bolt (4) attaching the lower control arm to the crossmember and frame rail.
  3. Install, but do not fully tighten, the front bolt (2) attaching the lower control arm to the crossmember.
  4. With no weight on the lower control arm, tighten the lower control arm rear (and suspension crossmember) bolt (4) to 250 N.m (185 ft. lbs.).
  5. With no weight on the lower control arm, tighten the lower control arm front bolt (2) to 170 N.m (125 ft. lbs.).

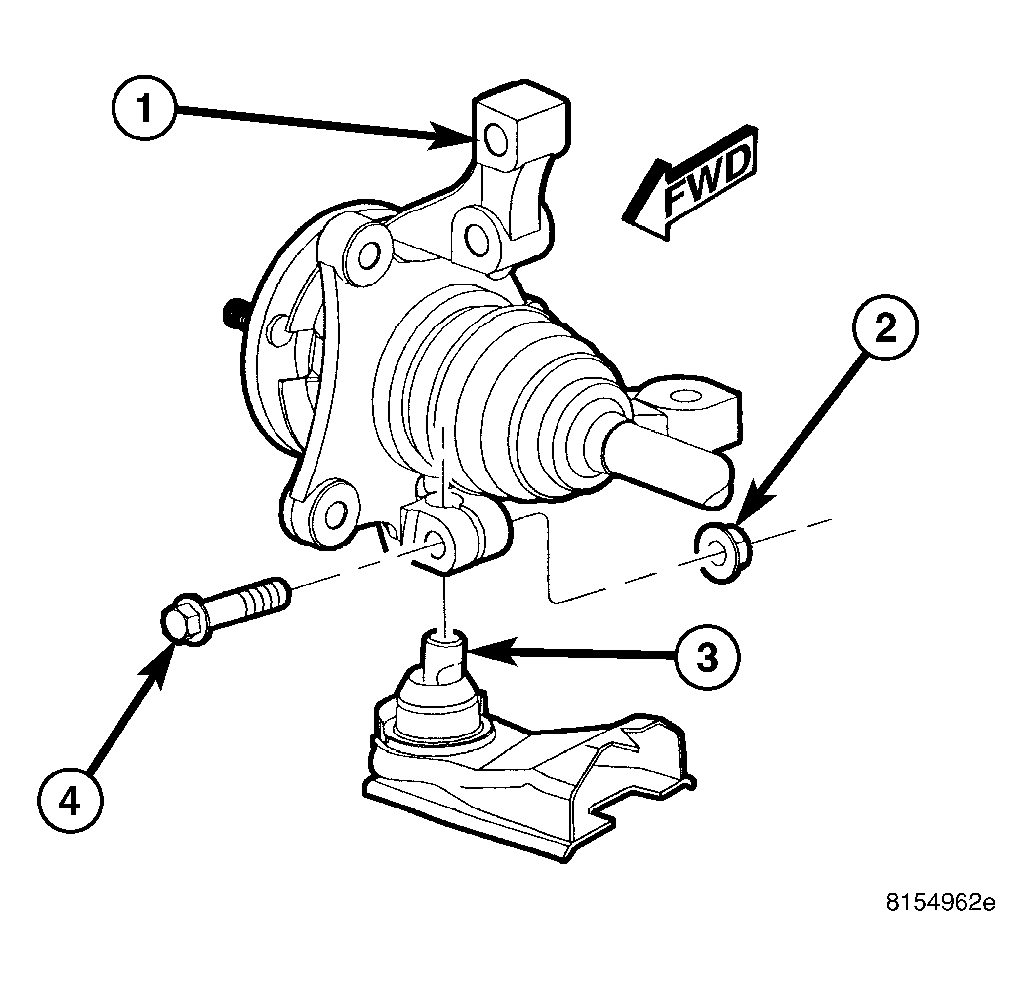

    Fig 2: Removing/Installing Ball Joint Pinch Bolt
    GC0043343Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the ball joint stud (3) into the knuckle (1), aligning the bolt hole in the knuckle boss with the notch formed in the side of the ball joint stud.
  7. Install a NEW ball joint stud pinch bolt (4) and nut (2). Tighten the nut to 95 N.m (70 ft. lbs.).
    Fig 3: LOWER ENGINE TORQUE STRUT
    GC0042968Courtesy of DAIMLERCHRYSLER CORP.
  8. If the right lower control arm is being serviced, install the engine torque strut (2). To properly align and tighten the torque strut, (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS) and (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS) .
    Fig 4: Strut Mounting
    GC0019531Courtesy of DAIMLERCHRYSLER CORP.
    1 - NUT
    2 - PENCIL STRUT
    3 - NUT
    4 - FLAT WASHER
    5 - LOWER TORQUE STRUT
  9. If the right lower control arm is being serviced, install the pencil strut as follows:
    • Install the washer (4) on the end of the stud extending from the torque strut bolt at the crossmember.
    • Position the pencil strut (3) on the right front corner of the crossmember and body of the vehicle and install the mounting nuts (1, 3). Tighten the nuts to 52 N.m (38 ft. lbs.).
    Fig 5: DRIVE BELT SPLASH SHIELD
    GC0042967Courtesy of DAIMLERCHRYSLER CORP.
  10. If the right lower control arm is being serviced:
    • Position the drive-belt splash shield (3) and install the fasteners (4) securing it to the body (2).
    • Install the fastener (5) securing the drive belt splash shield (3) to the front suspension crossmember (6).
    • If previously removed, install the fasteners securing the front fascia (1) to the body lower reinforcement.
    Fig 6: SPLASH SHIELD TO SPLASH SHIELD
    GC0042966Courtesy of DAIMLERCHRYSLER CORP.
  11. If the right lower control arm is being serviced, Install the one fastener (2) securing the wheel house splash shield (1) to the drive belt splash shield (3).

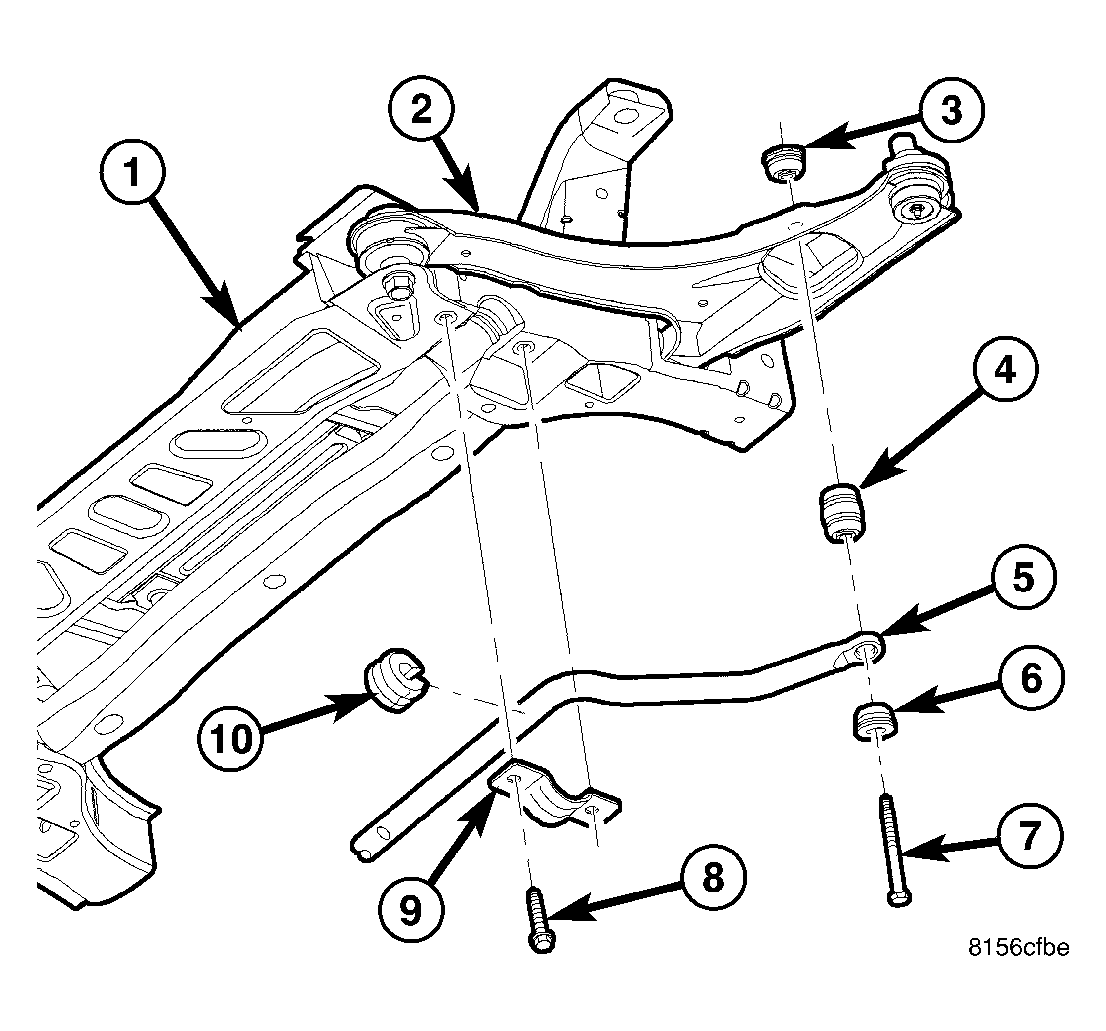

    Fig 7: Removing/Installing Stabilizer Bar And Link
    GC0043354Courtesy of DAIMLERCHRYSLER CORP.
  12. Rotate the forward ends of the stabilizer bar (5) into mounted position.
  13. Clean the threads of the stabilizer bar link bolts (7), then apply Mopar® Lock And Seal or equivalent to the threads.
  14. On both sides of the vehicle, Install both stabilizer bar link assemblies (3, 4, 6, 7). Start each stabilizer bar link bolt (7) with the lower bushing (6) from the bottom, through the stabilizer bar (5), inner link bushing (4), lower control arm (2), and into the upper retainer/nut and bushing (3). Do not fully tighten the link assemblies at this time.
    Fig 8: Tire And Wheel Mounting Method
    GC0041085Courtesy of DAIMLERCHRYSLER CORP.
  15. Install tire and wheel assembly (1) (Refer to TIRES/WHEELS - INSTALLATION) . Install and tighten wheel mounting nuts (3) to 135 N.m (100 ft. lbs.).
  16. Lower the vehicle.
    Fig 9: Removing/Installing Stabilizer Bar And Link
    GC0043354Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: It may be necessary to put the vehicle on a platform hoist or alignment rack to gain access to the stabilizer bar mounting bolts with the vehicle at curb height.
  17. With the vehicle at curb height, tighten each stabilizer bar link (3, 4, 6, 7) by holding the upper retainer/nut (3) with a wrench while turning the link bolt (7). Tighten each link bolt to 29 N.m (22 ft. lbs.).
  18. If previously loosened, tighten the stabilizer bar cushion retainer bolts (8) to 25 N.m (18 ft. lbs.).
  19. Perform wheel alignment as necessary. (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
