Wheel Cover: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Installing wheels without good metal-to-metal contact with the mounting surface could cause loosening of the wheel mounting (lug) nuts. This could adversely affect the safety and handling of the vehicle.

NOTE: Never use oil or grease on studs or wheel mounting (lug) nuts.

Fig 1: Tire And Wheel Mounting

Courtesy of DAIMLERCHRYSLER CORP.

With the tire and wheel assembly (1) positioned on the wheel studs without the wheel mounting (lug) nuts installed, align the valve notch in the wheel cover with the valve stem on the wheel and install the wheel cover over the studs.
NOTE: Always use the original (OEM) style wheel mounting (lug) nuts. Do not use replacement parts of lesser quality or substitute design.
Install and lightly snug all five wheel mounting (lug) nuts (3) Do not tighten at this time .
Lower the vehicle.

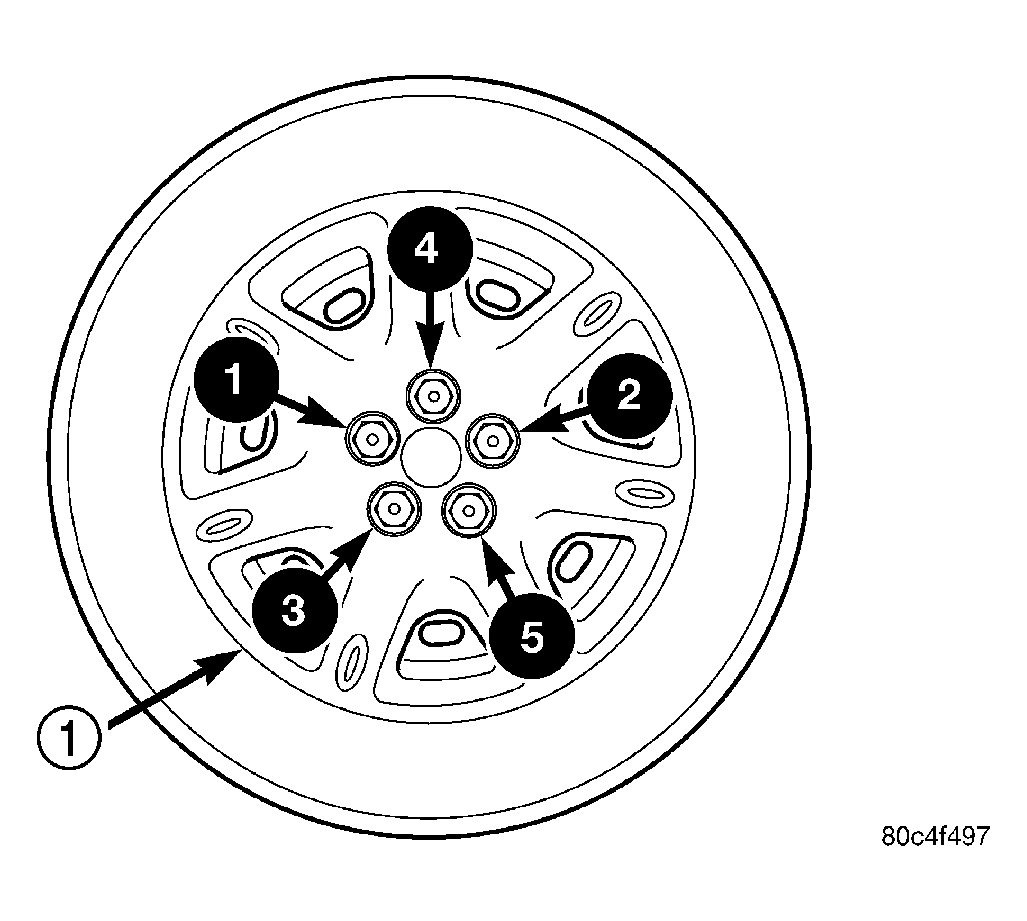

Fig 2: Lug Nut Tightening Sequence
Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLT-ON WHEEL COVER
Progressively tighten all wheel mounting nuts in the proper sequence shown. Tighten the nuts to a final torque of 135 N.m (100 ft. lbs.).
