Starter Motor: Removal: 1.6L

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Exhaust Bracket

Courtesy of DAIMLERCHRYSLER CORP.

Turn wheels to the left.
Remove air cleaner cover.
Disconnect the negative battery cable.
Raise vehicle and support.
Remove the exhaust manifold support bracket. See Fig 1.

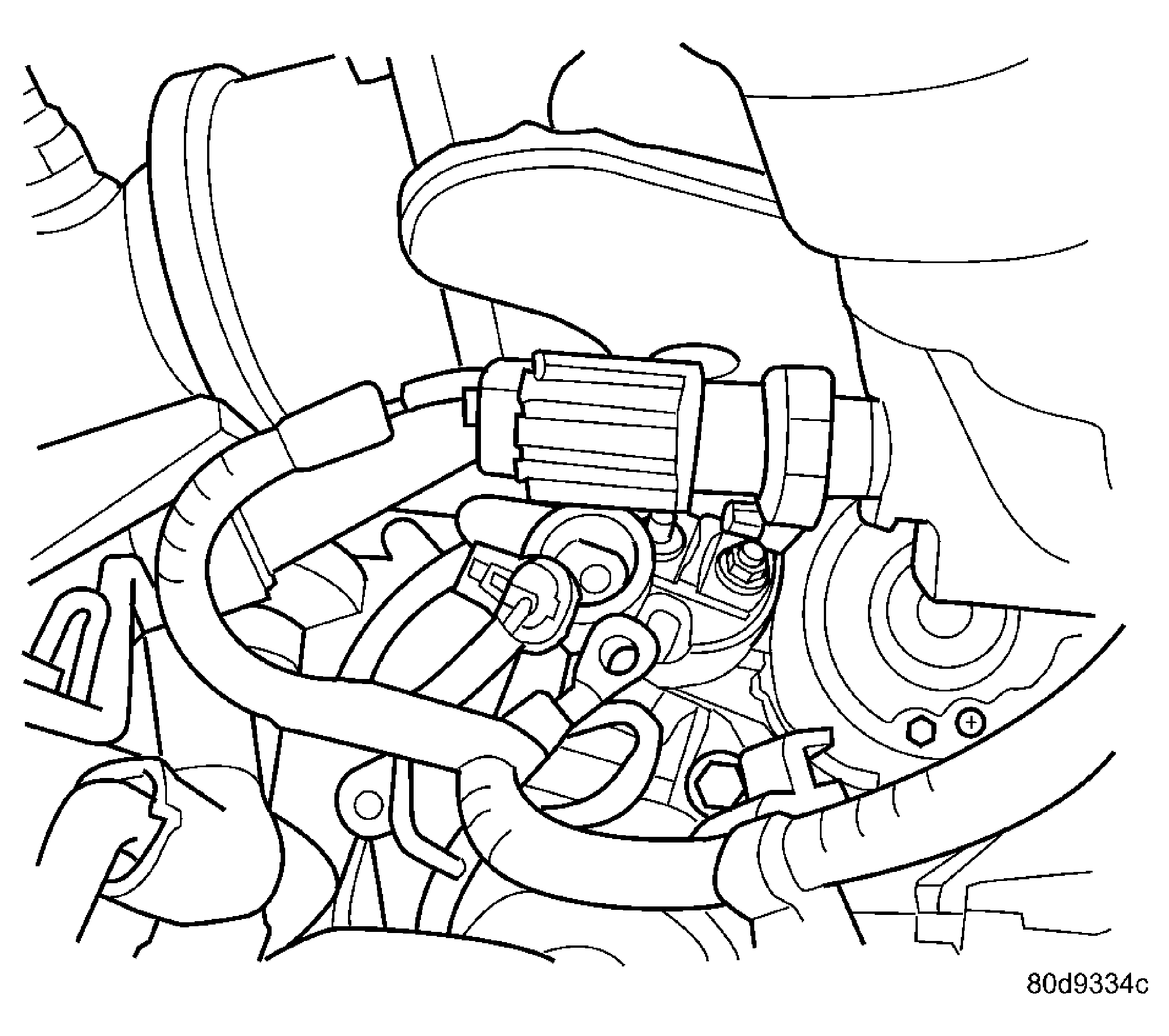

Fig 2: View Of Starter Solenoid Electrical Connections
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Removing/ Installing Starter Electrical Connections
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the battery cable and solenoid electrical connectors. See Fig 3 and Fig 2 from the starter.

Fig 4: View Of Starter Heat Shield
Courtesy of DAIMLERCHRYSLER CORP.
Push up the spring clip that holds the heat shield for the starter. See Fig 4.

Fig 5: Removing/ Installing Starter
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper mounting bolts first.
Remove the lower mounting bolt.
Remove the starter through the wheel well. See Fig 5.
