Transponder - TPM: Installation: Front

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

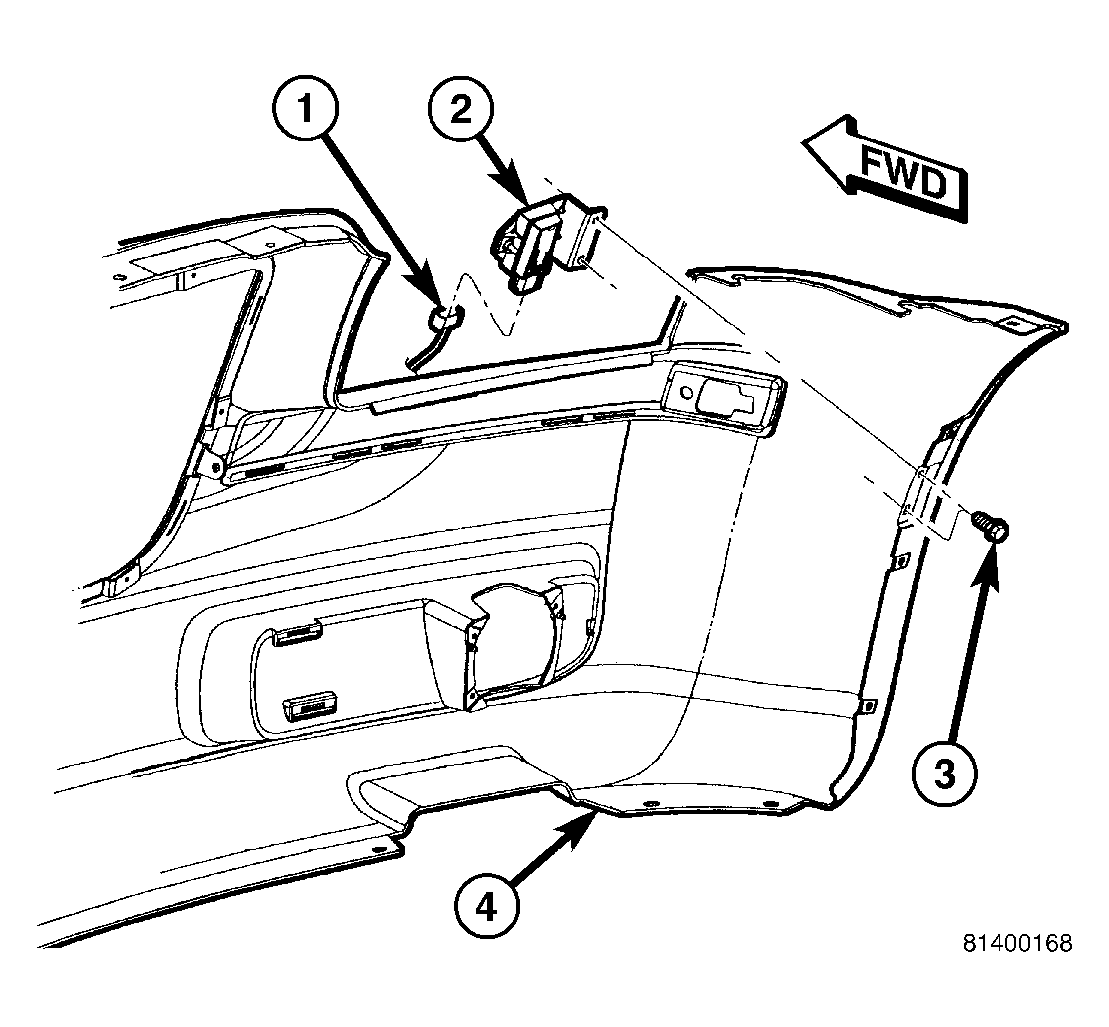

Fig 1: FRONT TRANSPONDER MOUNTING
GC0039619Courtesy of DAIMLERCHRYSLER CORP.
  1. Position transponder (2) against front fascia (4) and install mounting screw (3).
  2. Connect wiring harness connector (1) at transponder (2).
  3. Install wheelhouse splash shield and all components removed to access it. (Refer to BODY/EXTERIOR/F WHEELHOUSE SPLASH SHIELD - INSTALLATION)
  4. Perform TPM Diagnostic Verification Test. (Refer to TIRES/WHEELS/TIRE PRESSURE MONITORING - DIAGNOSIS AND TESTING)
