Output Shaft: Synchronizer: Disassembly

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

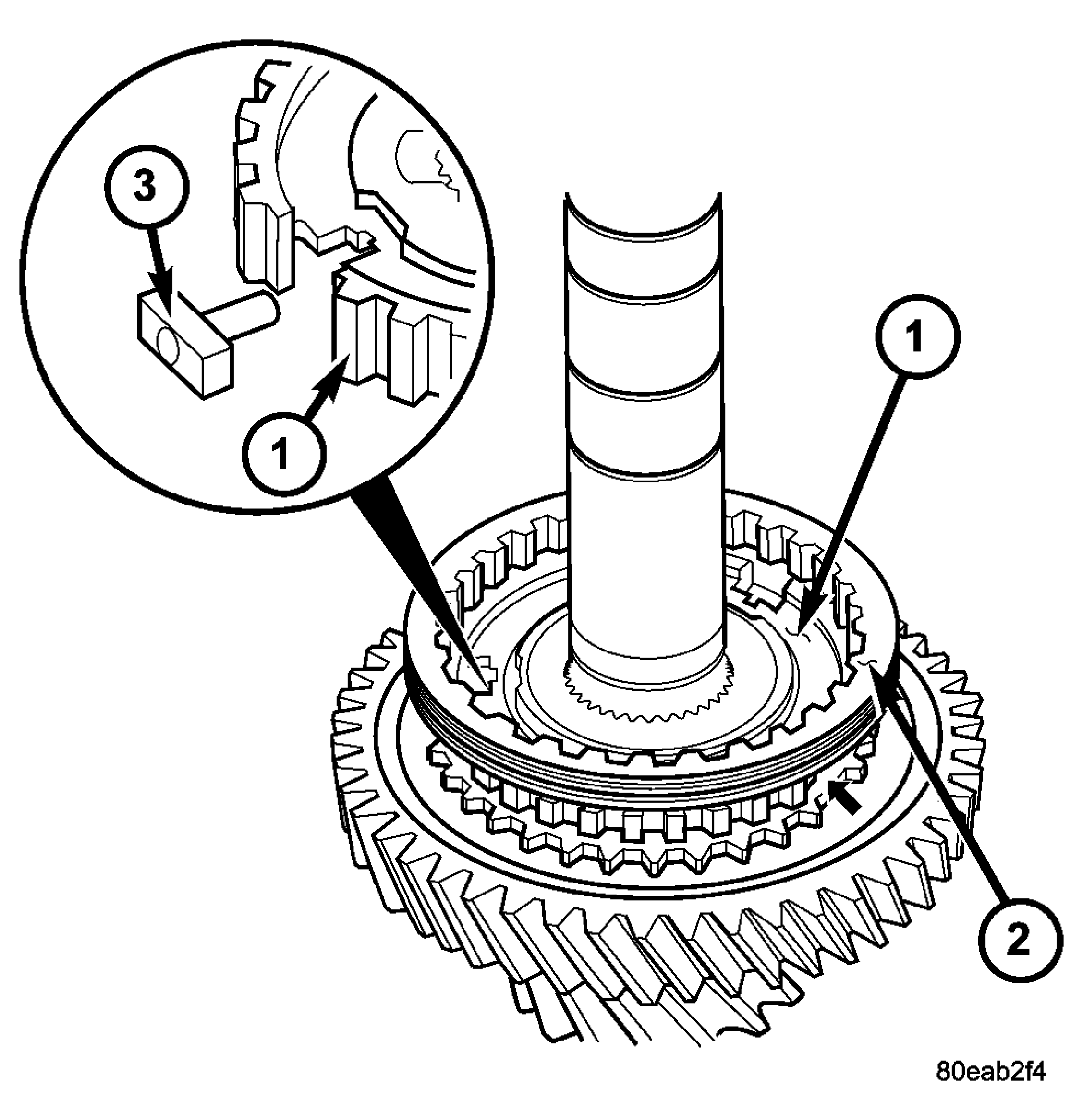

Fig 1: Synchronizer Disassembly
GC0022218Courtesy of DAIMLERCHRYSLER CORP.
1 - SYNCHRONIZER HUB
2 - SYNCHRONIZER SLEEVE
3 - STRUT ASSEMBLY
  1. Remove synchronizer sleeve (2). See Fig 1. Three synchronizer strut assemblies (3) will free from hub (1).
  2. Inspect all components for wear and replace as necessary.
