Input Shaft: Disassembly

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

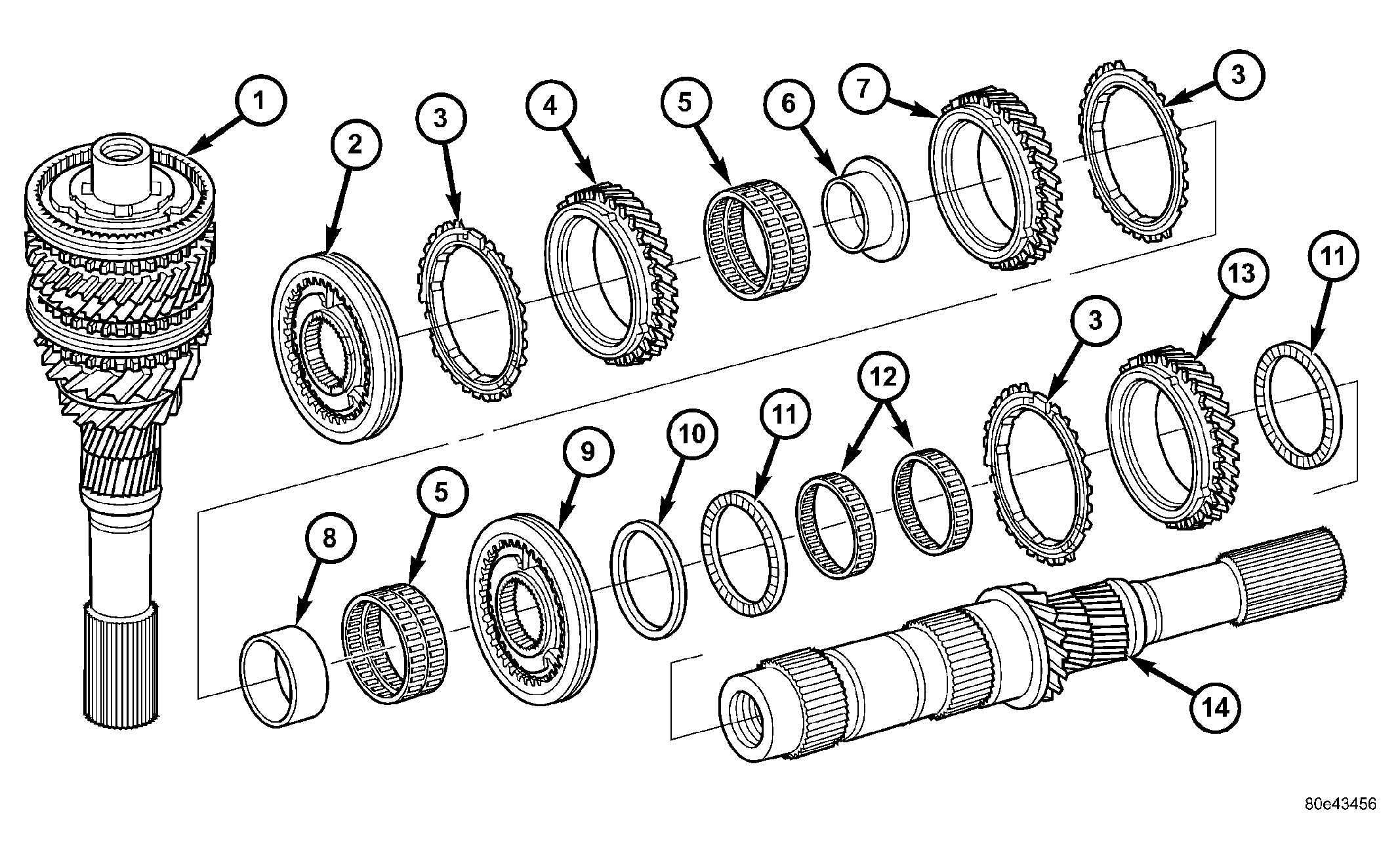

Fig 1: Input Shaft Disassembly/Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - INPUT SHAFT ASSEMBLY	8 - BUSHING
2 - SYNCHRONIZER (5TH GEAR)	9 - SYNCHRONIZER (4TH GEAR)
3 - BLOCKER RING	10 - THRUST WASHER
4 - 5TH GEAR	11 - THRUST BEARING
5 - NEEDLE BEARING	12 - NEEDLE BEARING
6 - BUSHING	13 - 3RD GEAR
7 - 4TH GEAR	14 - INPUT SHAFT

Refer to the exploded view as necessary when performing the following steps.

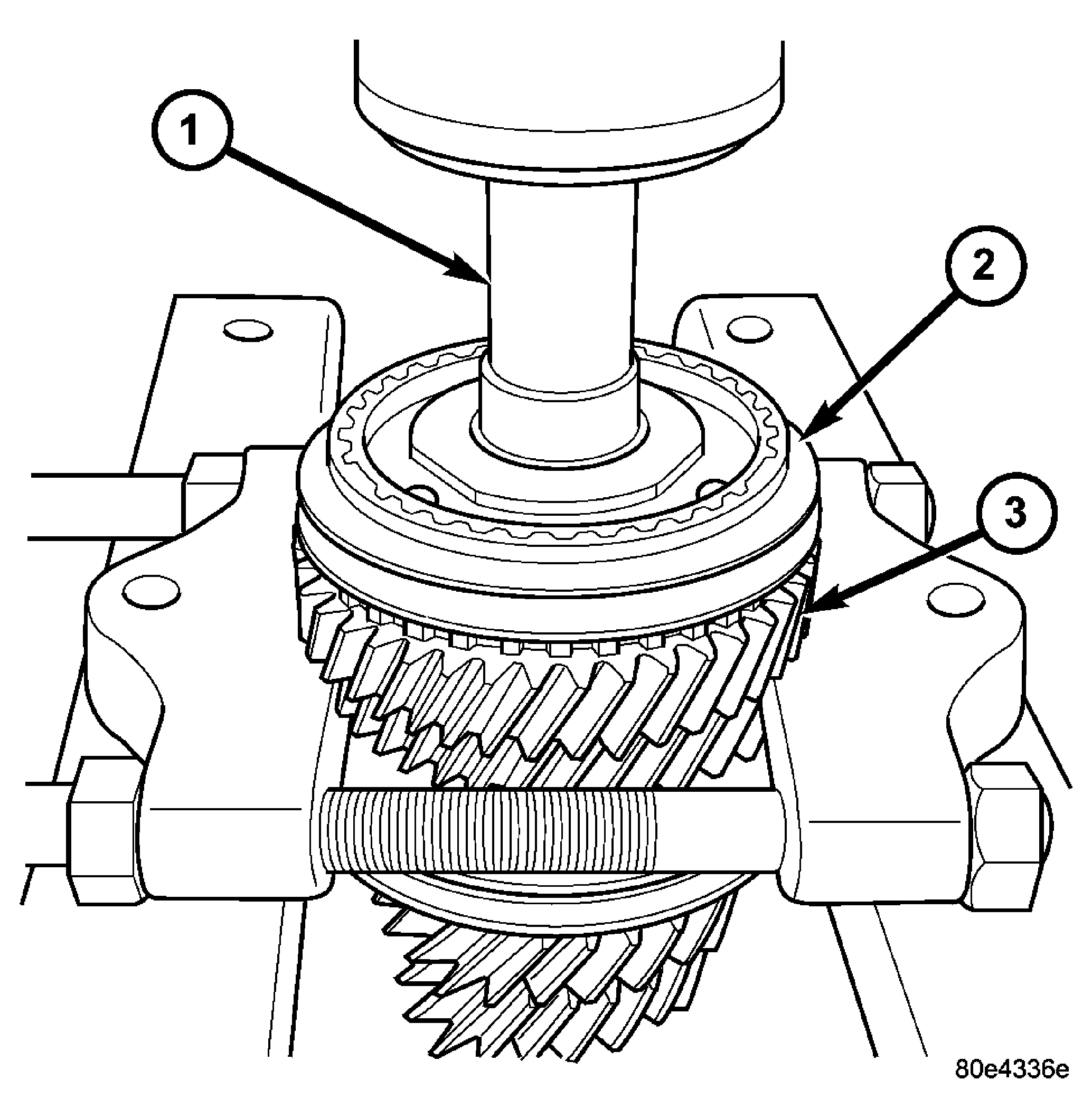

Fig 2: 5th Gear and Synchronizer Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROTECT BUTTON 8919

2 - 5TH GEAR SYNCHRONIZER

3 - 5TH GEAR

Remove 5th gear (3) and synchronizer (2) from input shaft using Protect Button 8919 (1) and bearing splitter. See Fig 2.

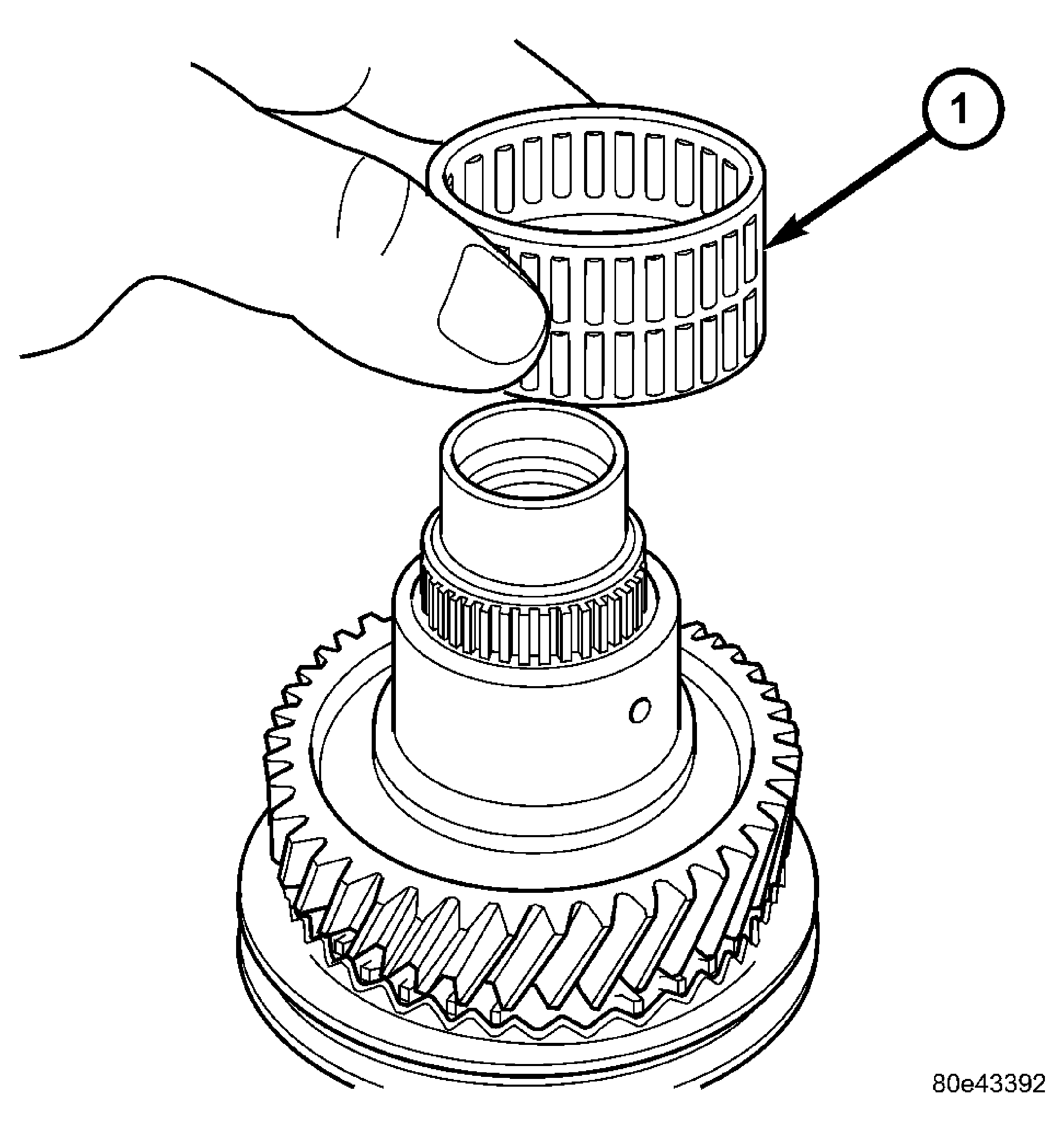

Fig 3: 5th Gear Needle Bearing Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - NEEDLE BEARING

Remove 5th gear needle bearing (1). See Fig 3.

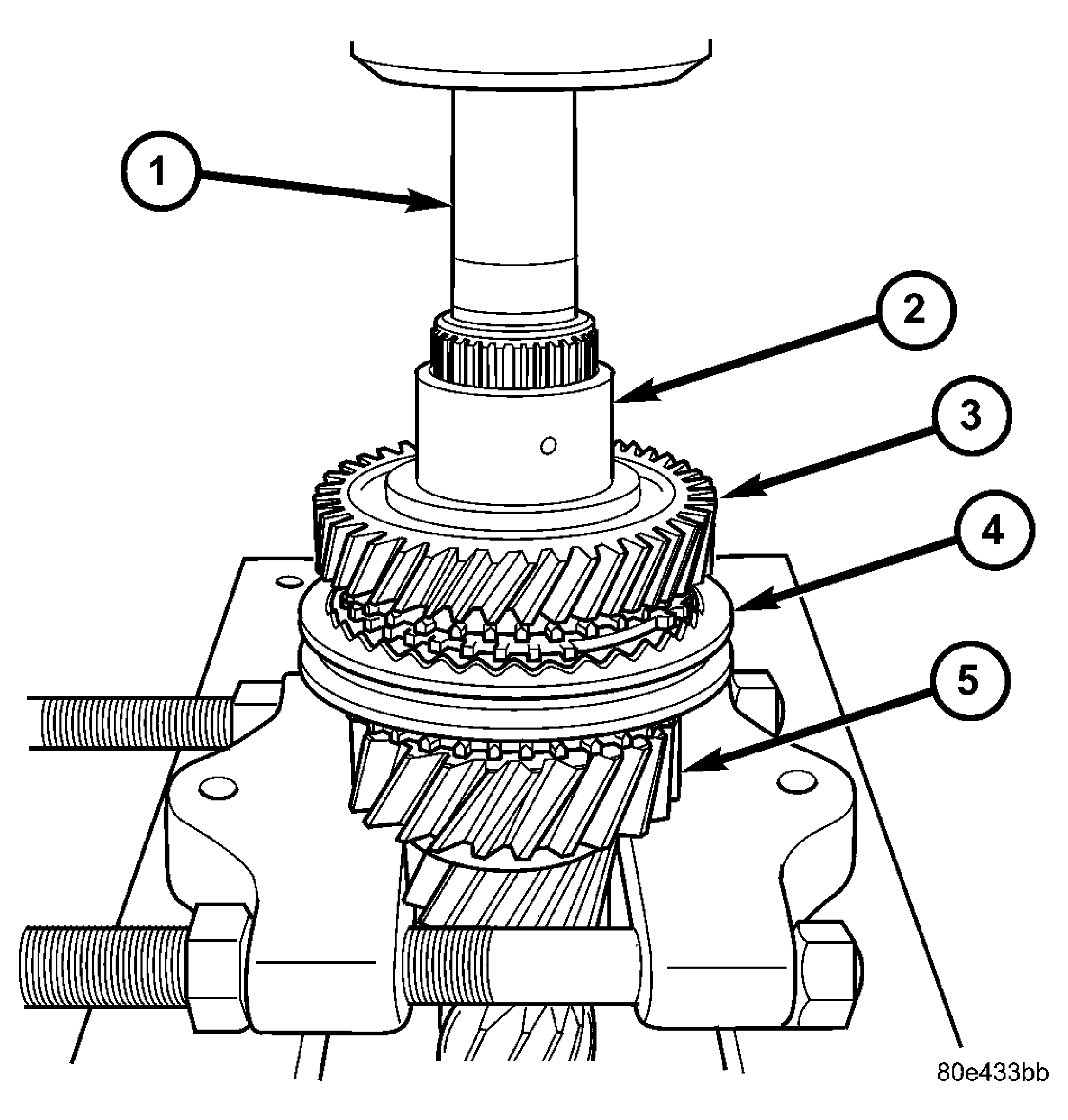

Fig 4: Bushing, 3rd/4th Gear and Synchronizer Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROTECT BUTTON 8919

2 - 5TH GEAR BUSHING

3 - 4TH GEAR

4 - 3/4 SYNCHRONIZER

5 - 3RD GEAR

Remove 3rd (5) and 4th (3) gears, synchronizer (4), and 5th gear bearing bushing (2) using Protect Button 8919 (1) and bearing splitter. See Fig 4.

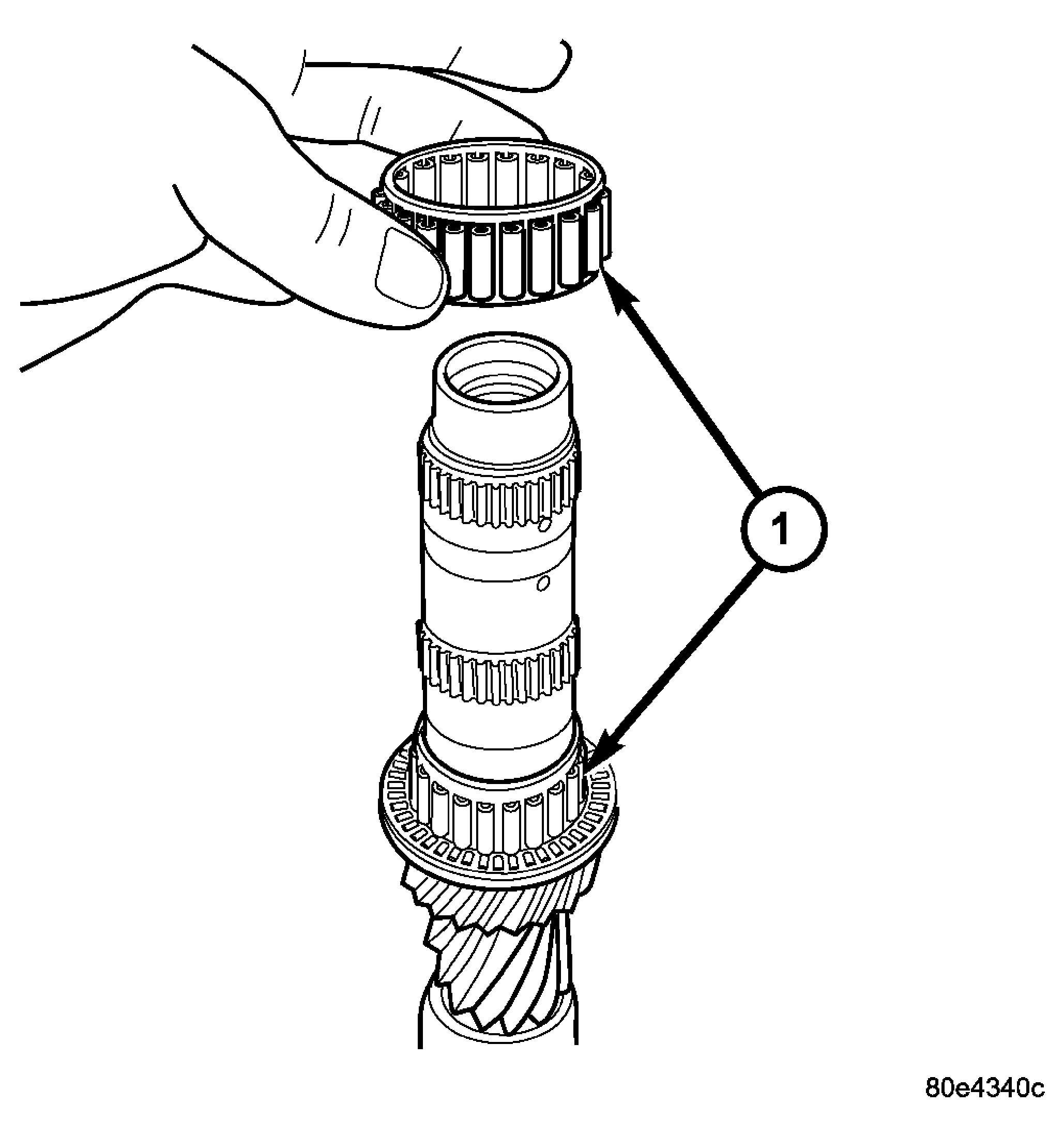

Fig 5: 3rd Gear Needle Bearing Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - NEEDLE BEARINGS
Remove both 3rd gear needle bearings (1). See Fig 5.

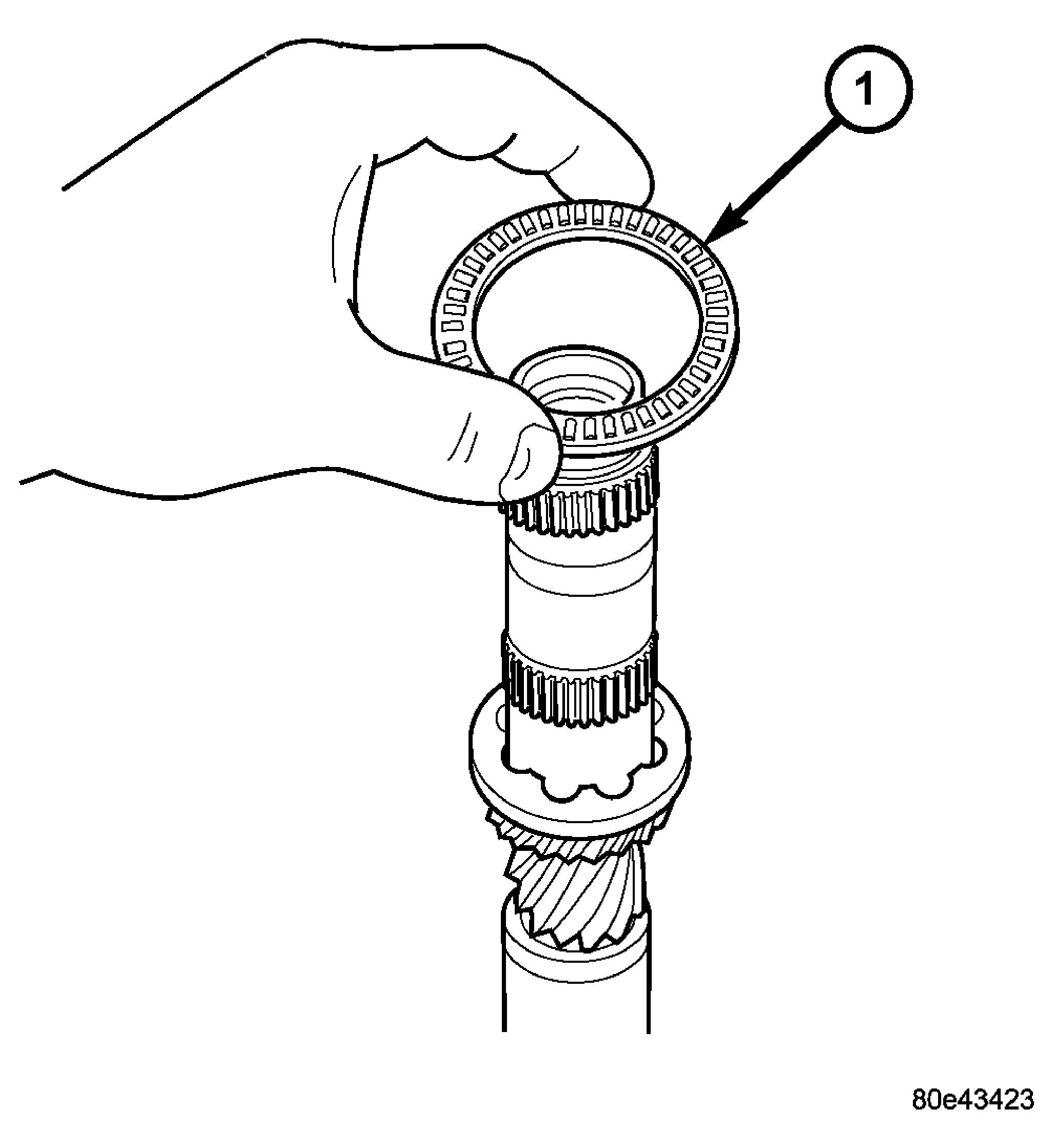

Fig 6: 3rd Gear Thrust Washer Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - THRUST WASHER
Remove thrust washer (1). See Fig 6.

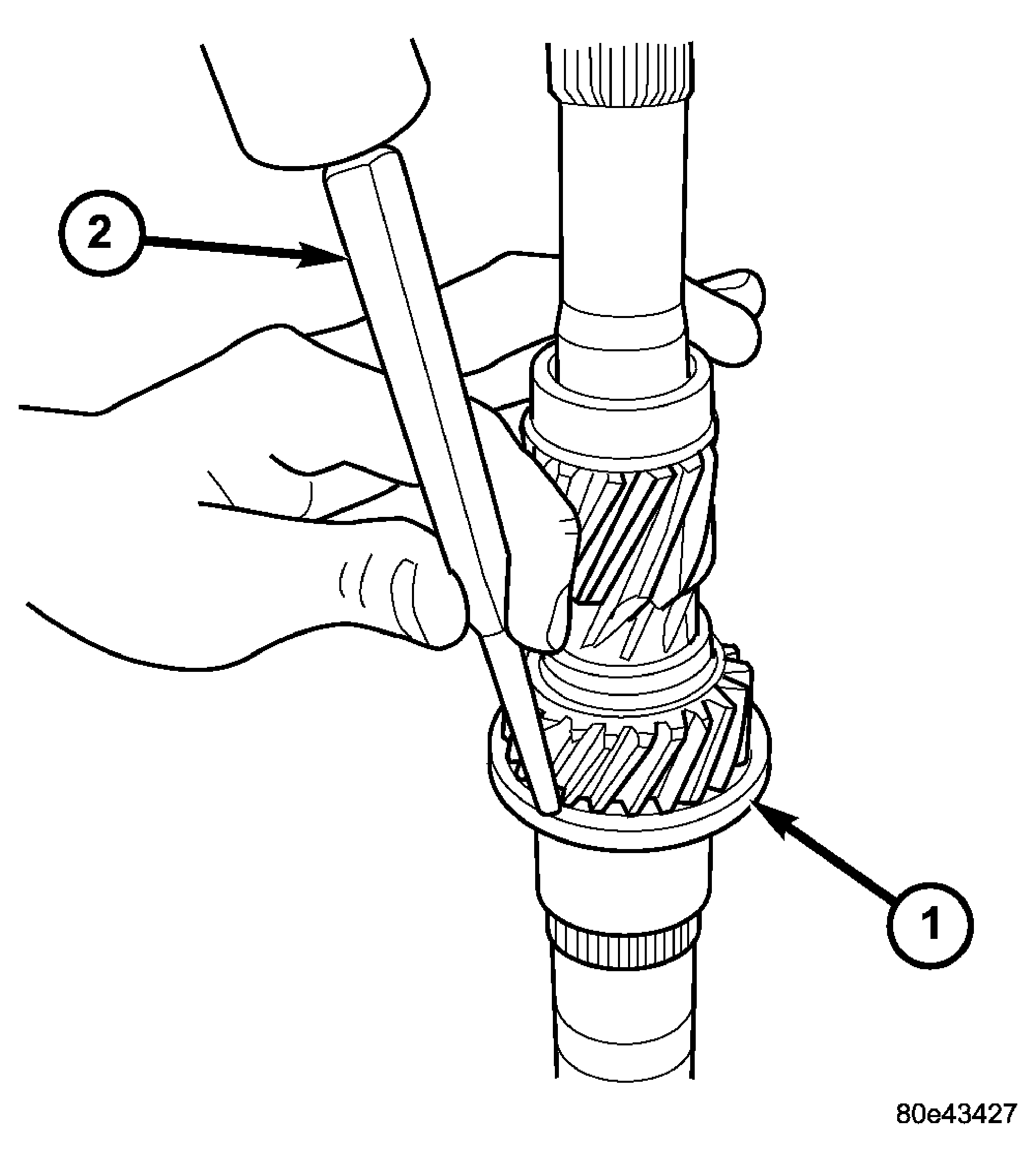

Fig 7: Thrust Plate Removal
Courtesy of DAIMLERCHRYSLER CORP.

1 - THRUST PLATE

2 - PUNCH/DRIFT
If necessary, remove 3rd gear thrust plate (1). See Fig 7.
