Detent Plug: Removal
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

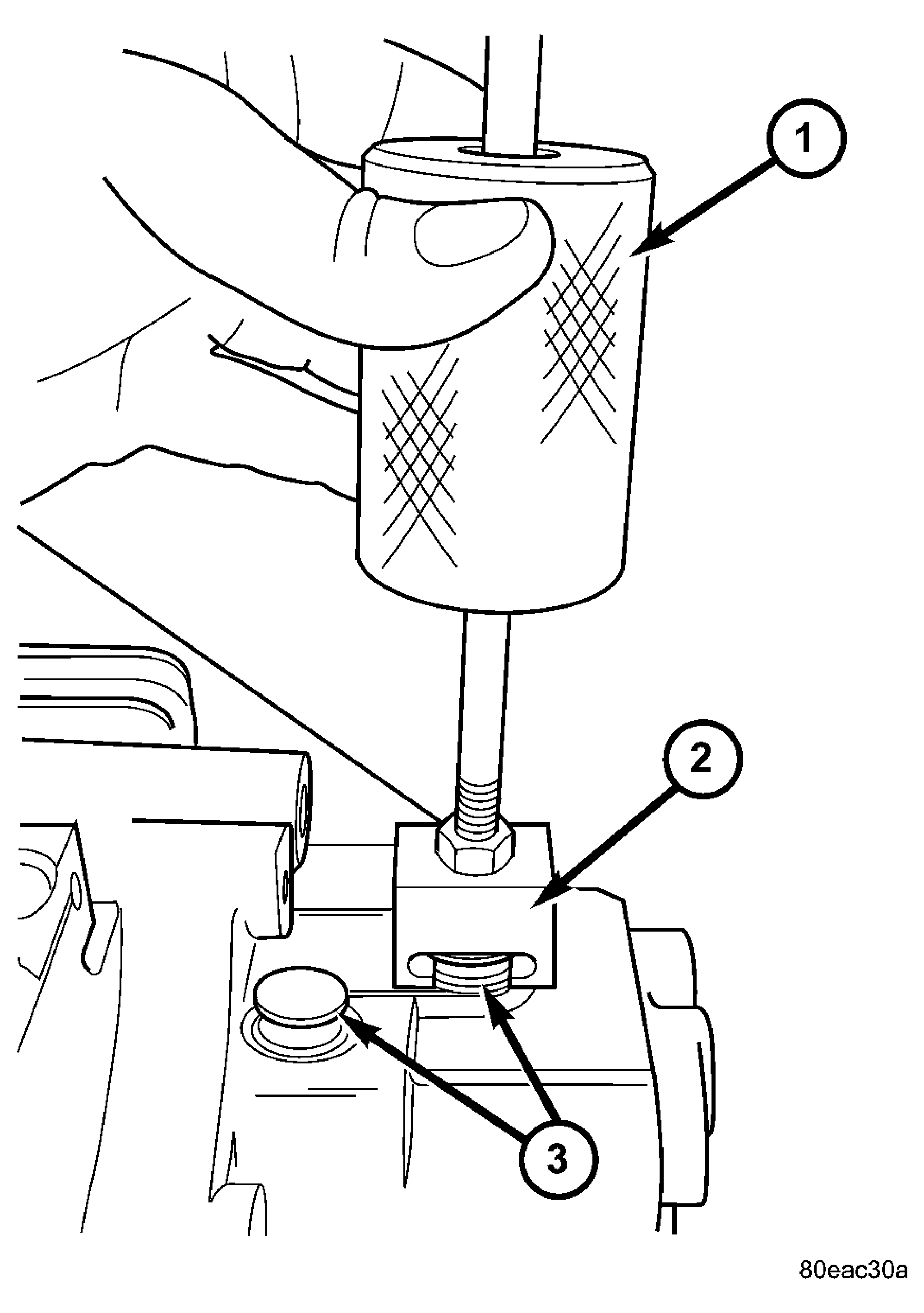

| 1 - PULLER/SLIDE HAMMER C-3752 |
| 2 - REMOVER 8870 |
| 3 - DETENT PLUG |
- Remove transaxle assembly. (Refer to TRANSMISSION/TRANSAXLE/MANUAL - REMOVAL)
- Using Remover 8870 (2) attached to Puller/Slide Hammer C-3752 (1), remove detent plug(s) (3) from transaxle case. See Fig 1.
