Detent Plug: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect detent plug for signs of wear or damage. If necessary, replace detent plugs with new upon installation.

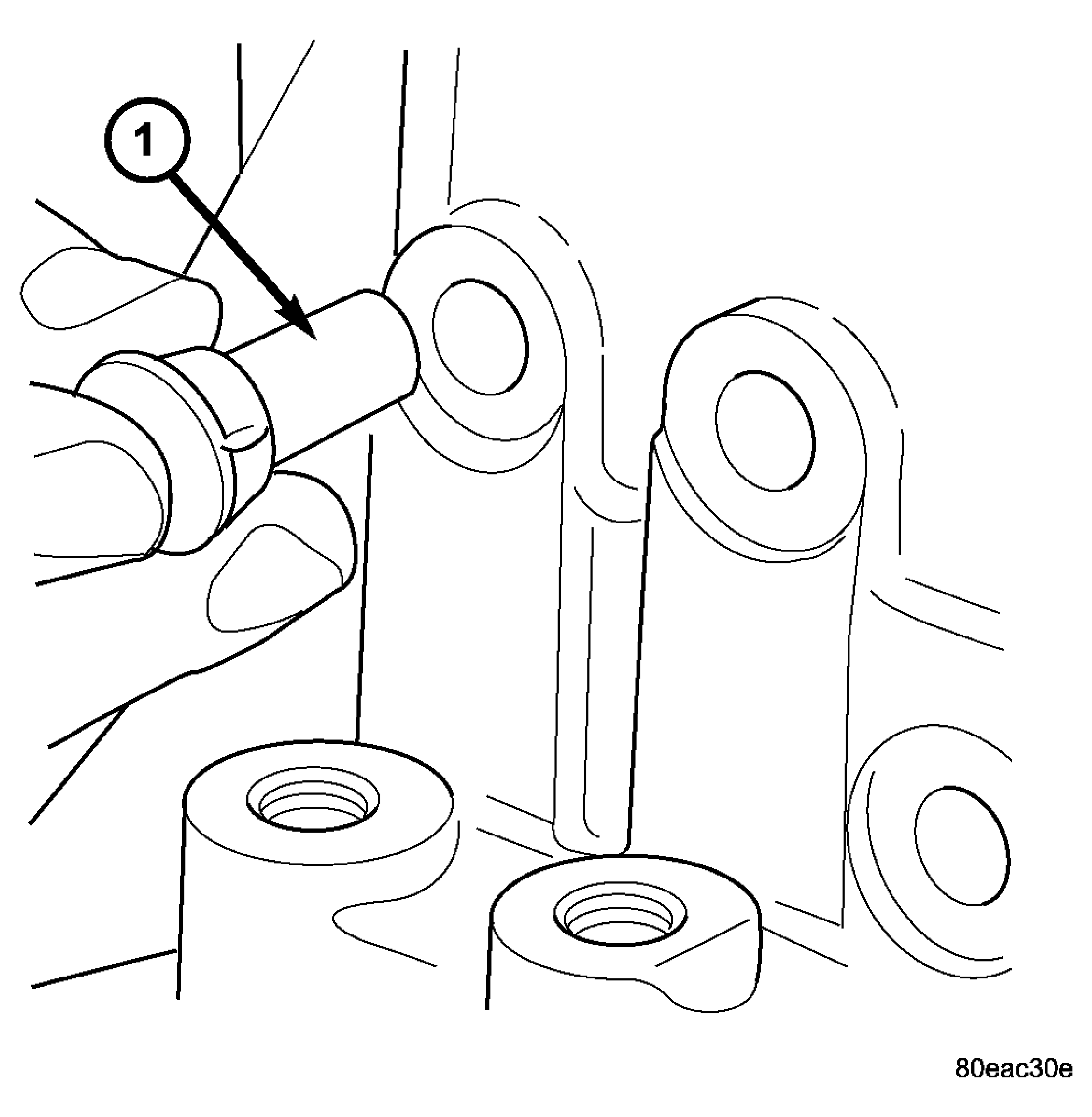

Fig 1: Detent Plug Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - DETENT PLUG

Install detent plug (1) into case. See Fig 1.

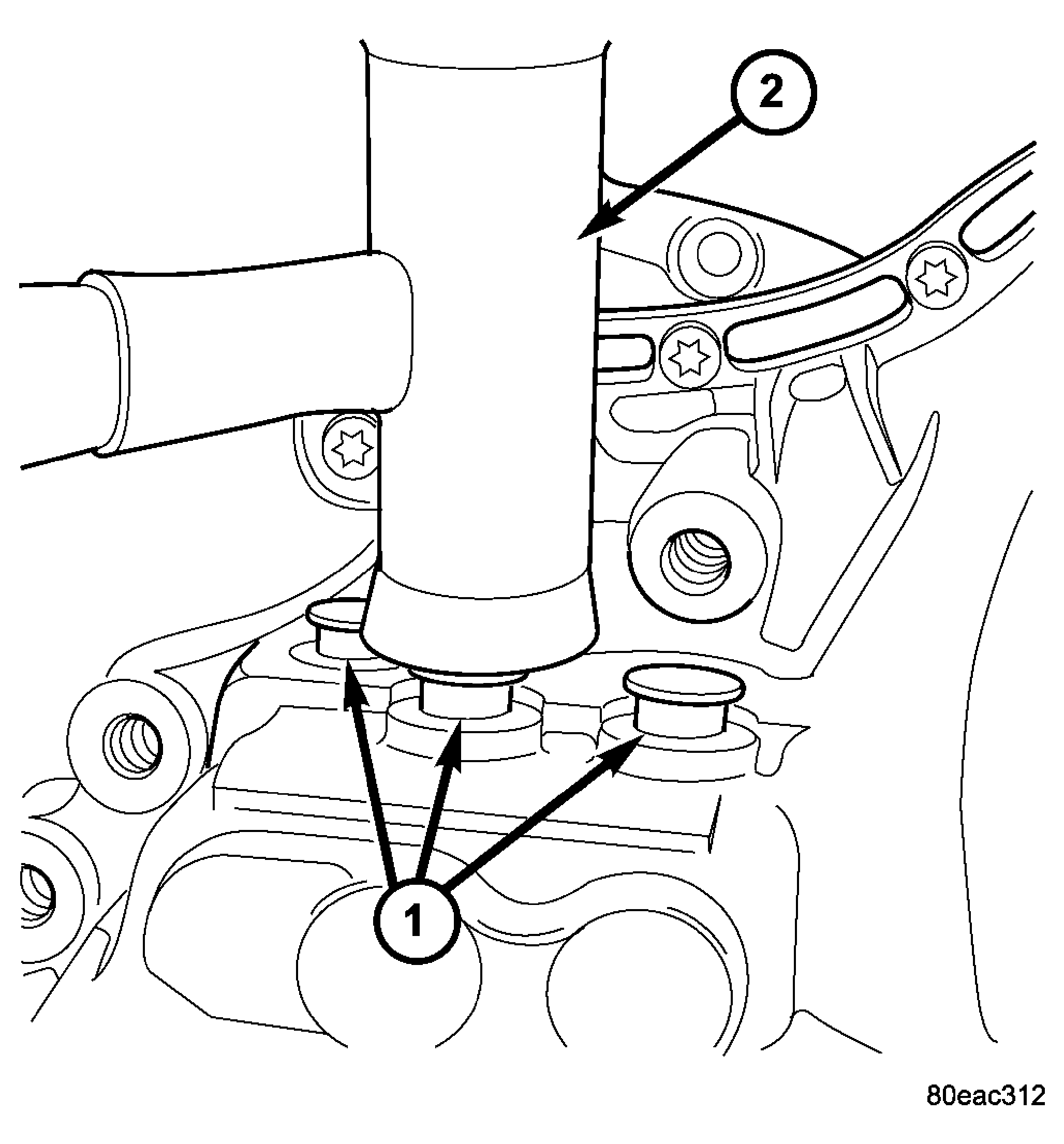

Fig 2: Seat with Soft-Tipped Hammer
Courtesy of DAIMLERCHRYSLER CORP.

1 - DETENT PLUGS

2 - SOFT-TIPPED HAMMER

Using soft-tipped hammer (2) , drive detent plugs (1) into case until they bottom. See Fig 2.
Install transaxle assembly. (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION)
