Detent Plug: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

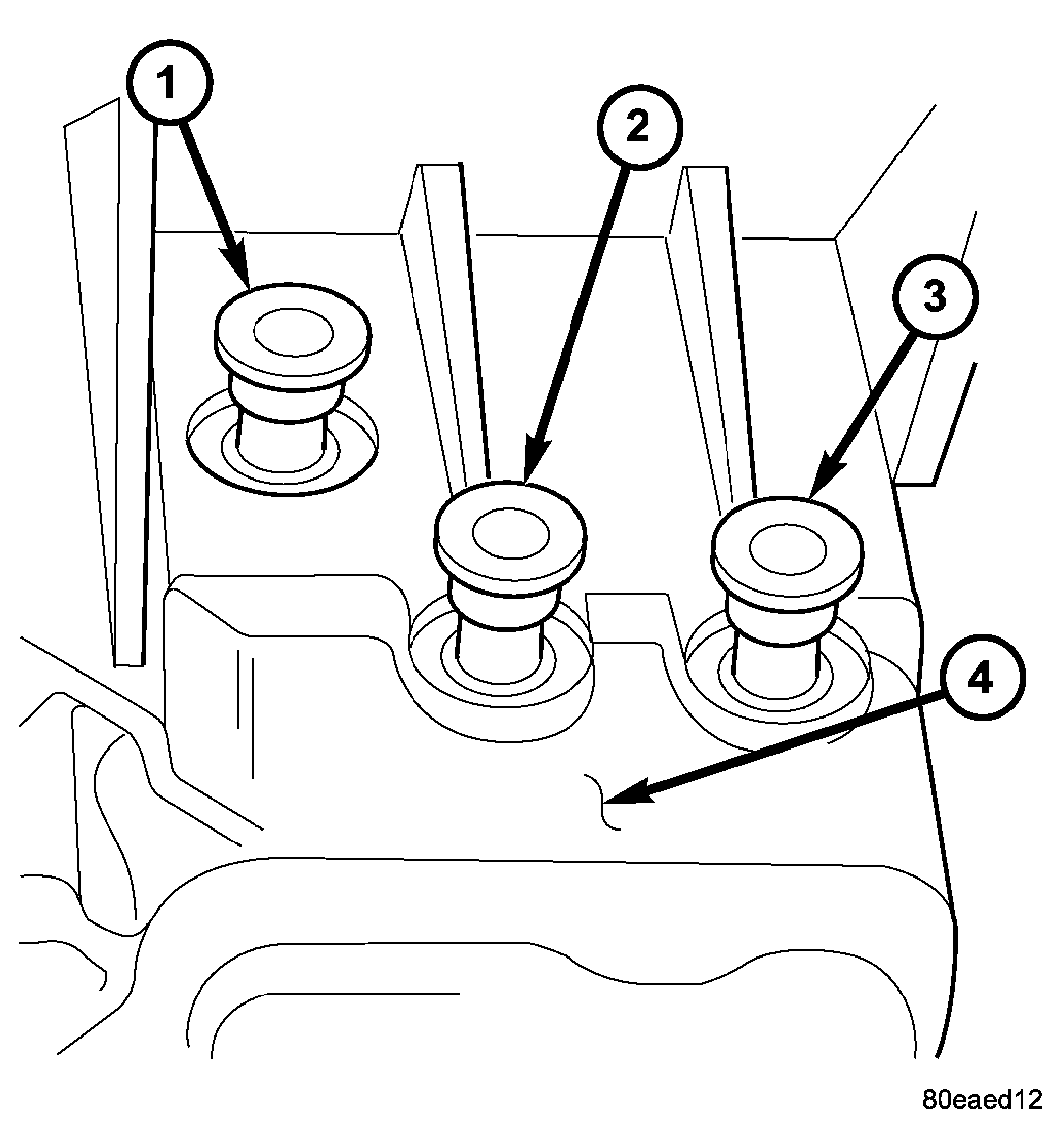

Fig 1: Detent Plug Identification

Courtesy of DAIMLERCHRYSLER CORP.

1 - FIFTH GEAR DETENT

2 - 3/4 DETENT

3 - 1/2 DETENT

4 - TRANSAXLE HOUSING

The 288 Transaxle utilizes four shift rod detent plugs. See Fig 1.

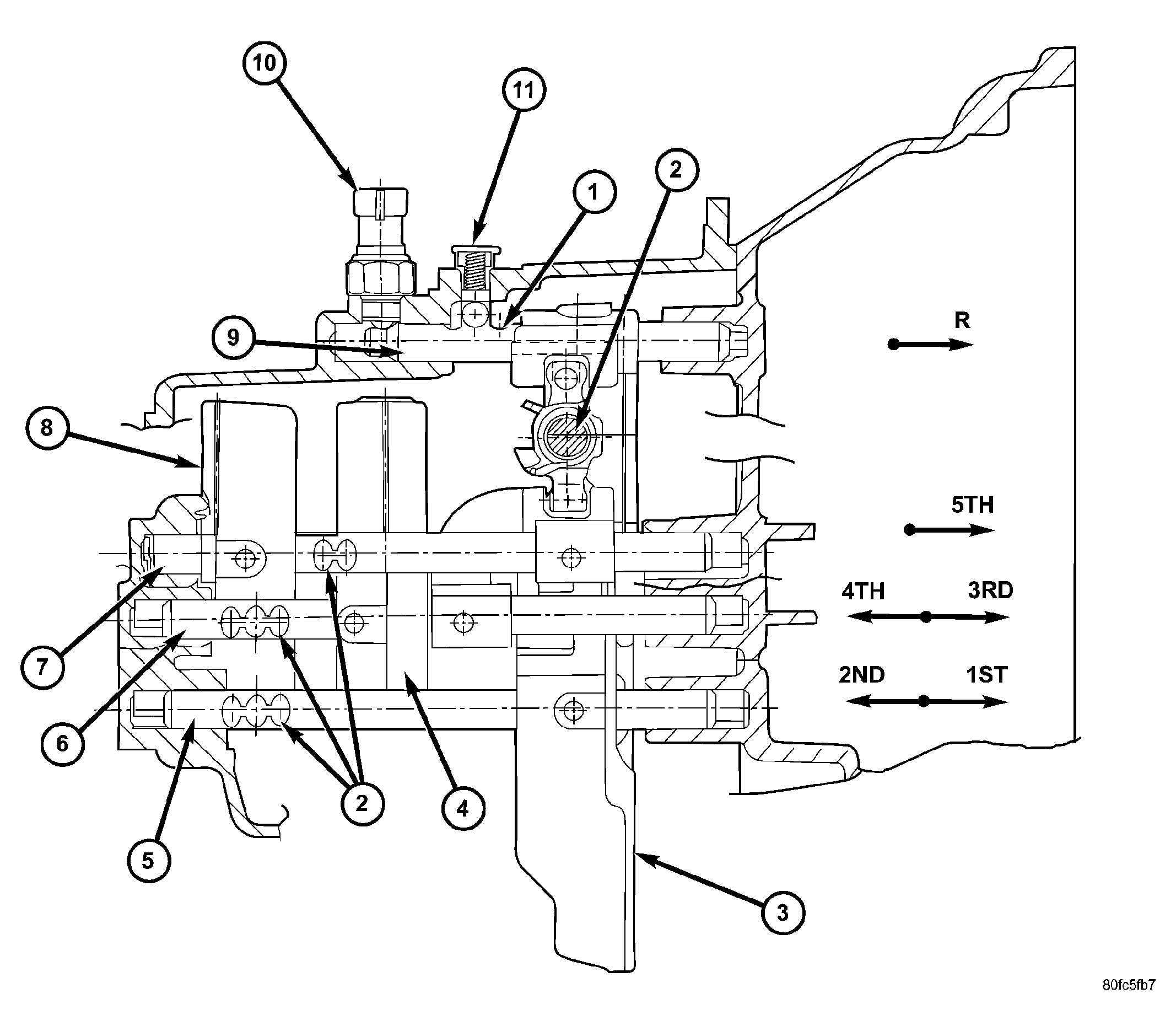

Fig 2: G288 Transaxle Shift System

Courtesy of DAIMLERCHRYSLER CORP.

1 - RECESS

2 - SHIFT MECHANISM

3 - 1/2 FORK

4 - 3/4 FORK

5 - 1/2 SHIFT ROD

6 - 3/4 SHIFT ROD

7 - 5TH SHIFT ROD

8 - 5TH GEAR FORK

9 - REVERSE SHIFT ROD

10 - BACK-UP LAMP SWITCH

11 - DETENT PLUG

The detent plug (11) is a spring-loaded ball assembly that engages shift rod recesses, providing a positive shift feel while maintaining gear position. See Fig 2.
