Throttle Position Sensor: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Throttle Position Sensor, Idle Air Control Motor & PCM

Courtesy of DAIMLERCHRYSLER CORP.

1 - IAC

2 - PCM

3 - TPS

The throttle position sensor attaches to the side of the throttle body (1).

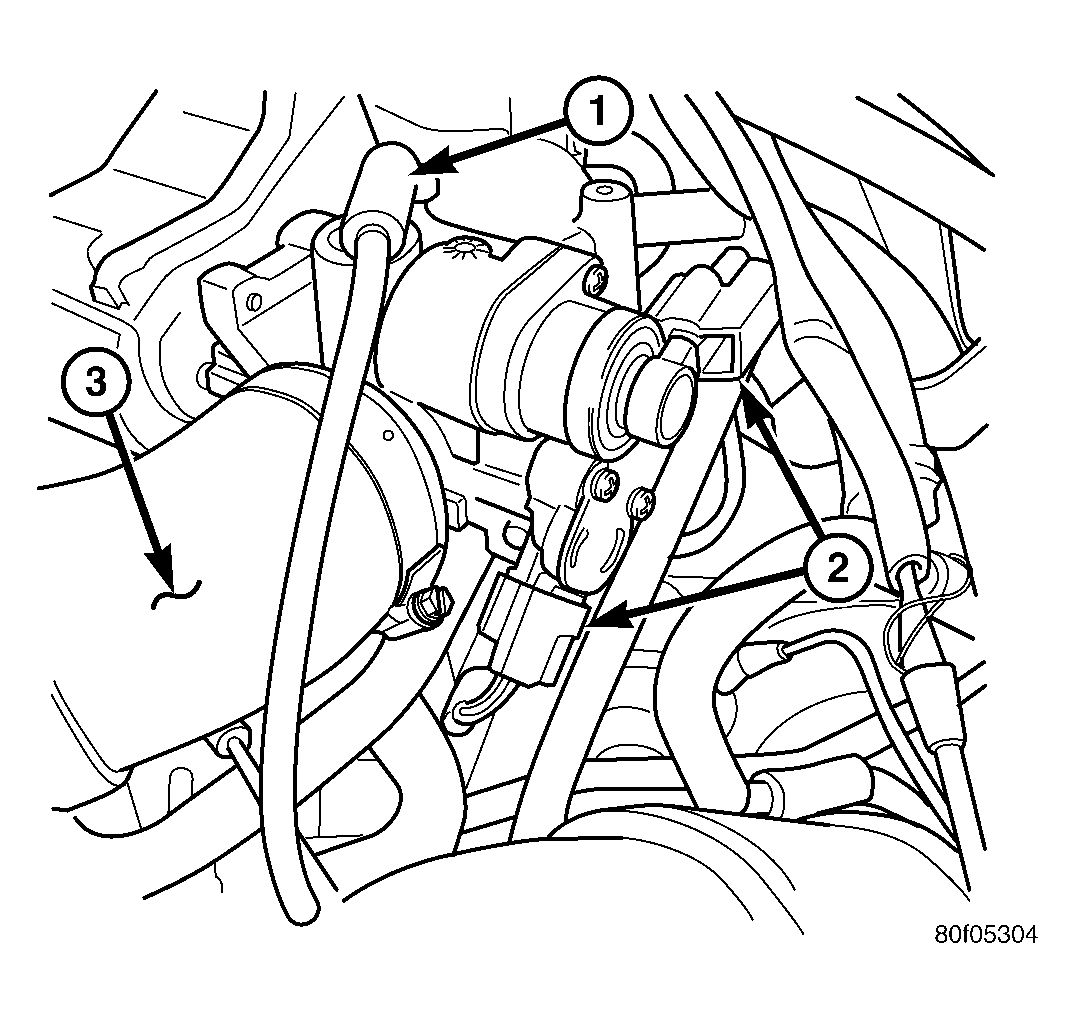

Fig 2: Throttle Body Connections - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.

1 - Purge Hose

2 - Electrical Connections

3 - Inlet Hose

Remove the air cleaner lid and makeup air hose. Loosen the clamp and relocate assembly.
Remove the negative battery cable.
Disconnect electrical connector from the throttle position sensor (2).
Remove throttle position sensor mounting screws.
Remove throttle position sensor.
