Throttle Body: Removal: 2.0/2.4L

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Throttle Cable Attachment To Throttle Body
GC0021664Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
  2. Remove the negative battery cable.
  3. Remove the engine cover or throttle control shield if equipped.
  4. Remove throttle cable from the throttle body cam.
    Fig 2: Locating Retaining Tabs On Cables
    GC0021665Courtesy of DAIMLERCHRYSLER CORP.
  5. Lift the retaining tabs on the cable and slide cable out of bracket.
  6. If equipped with speed control, remove speed control cable from throttle lever by sliding clasp out hole used for throttle cable.

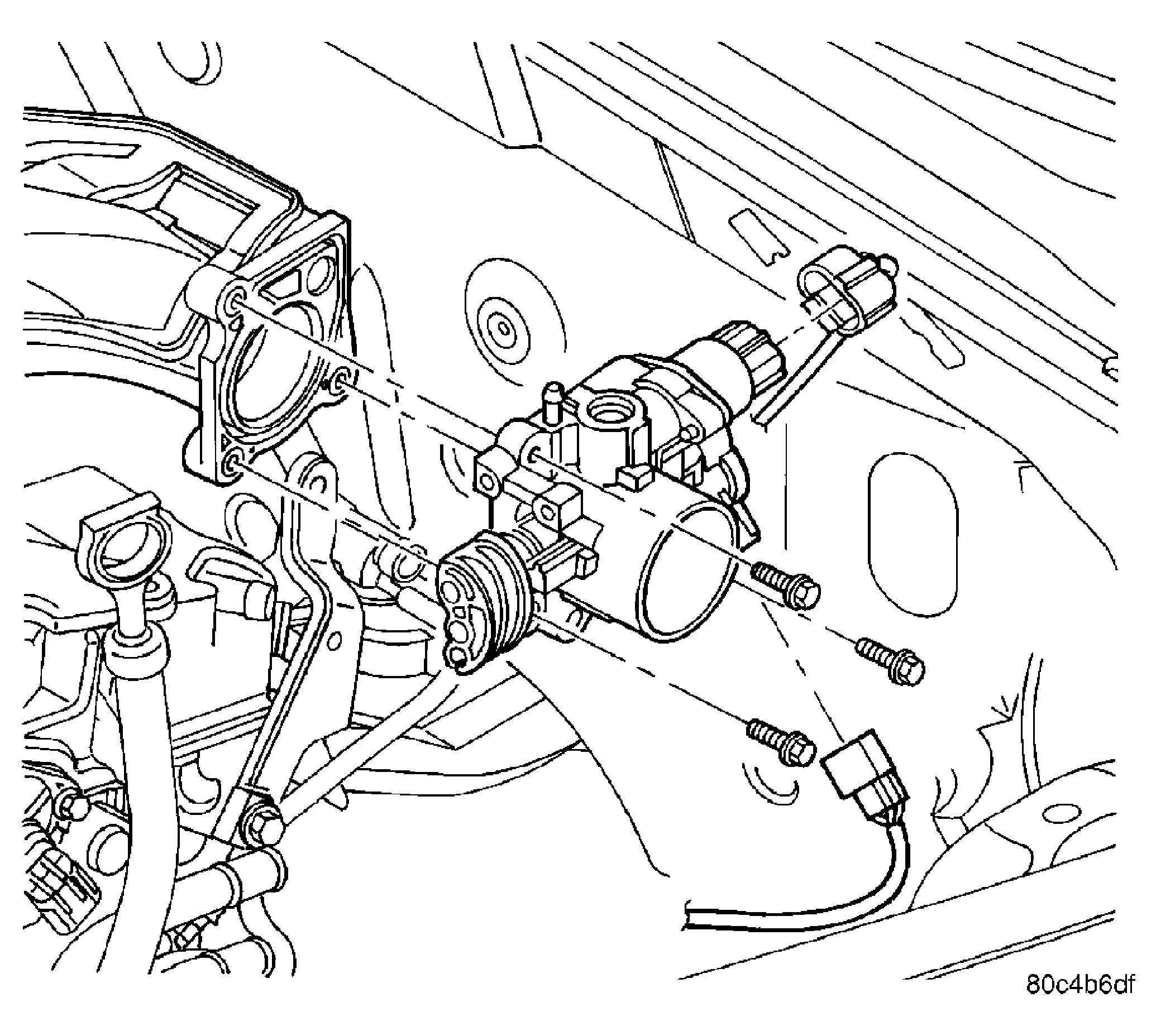

    Fig 3: Throttle Body Bolts
    GC0021666Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove EVAP purge hose from nipple on throttle body.
  8. Remove the electrical connectors from the throttle position sensor and idle air control motor.
  9. Remove 2 screws holding cable mounting bracket and support bracket.
  10. Remove throttle body mounting bolts.

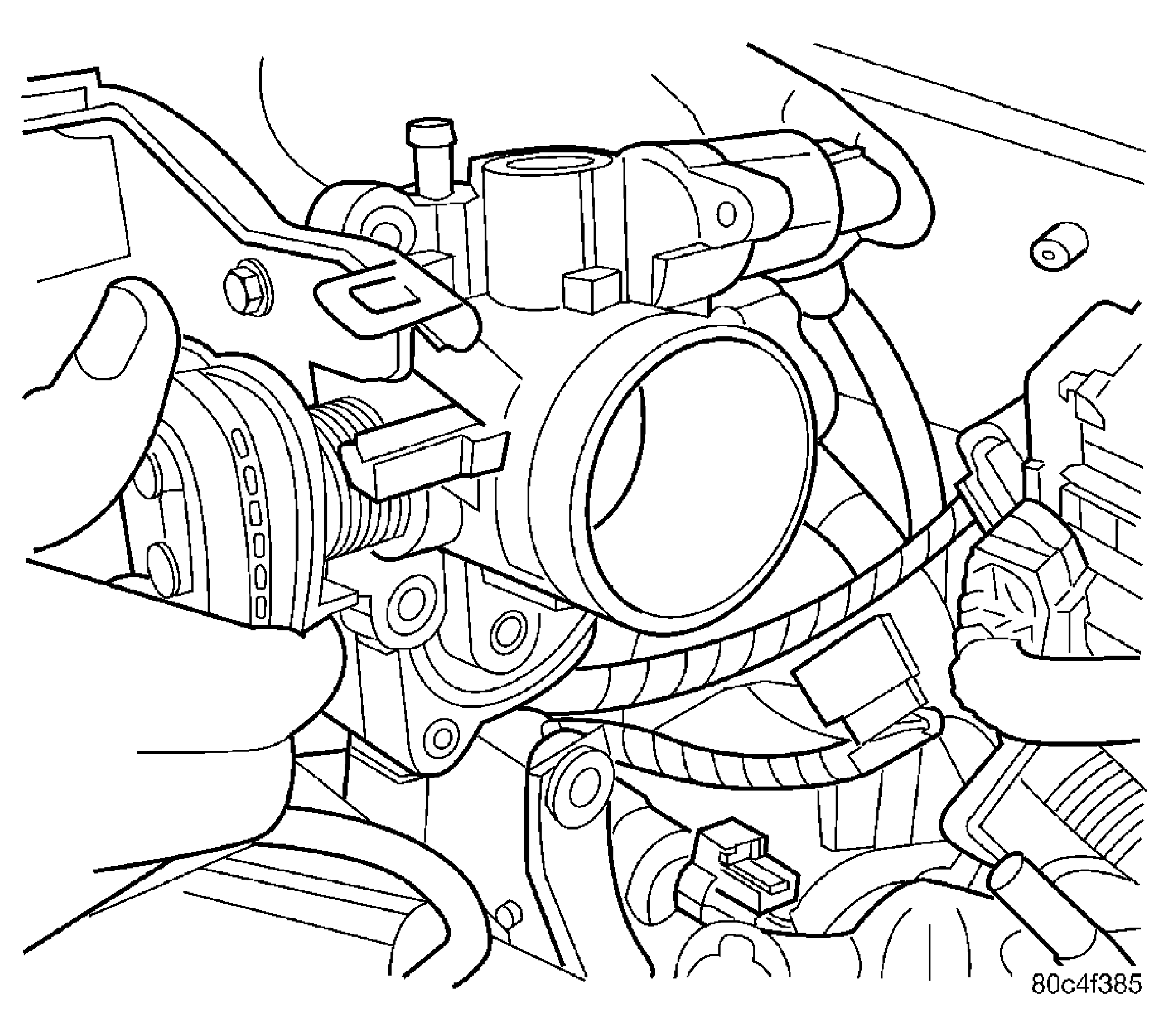

    Fig 4: Throttle Body Removal/Installation
    GC0021667Courtesy of DAIMLERCHRYSLER CORP.
  11. Lift throttle body straight up and away to remove the throttle body.
