2.0/2.4/2.4L Turbo

Fig 1: Locating Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The Crankshaft Position Sensor is in the front of the engine block just under the starter motor.

1. Disconnect the negative battery cable.
   Fig 2: Structural Collar And Bending Strut - (Automatic Transaxle Equipped)

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - TRANSAXLE

   2 - STRUCTURAL COLLAR

   3 - OIL PAN

   4 - BENDING STRUT

2. Raise vehicle and support.
3. On 2.4L SRT-4  remove the lower inner cooler hose from the metal tube.
4. Remove the Structural Collar.

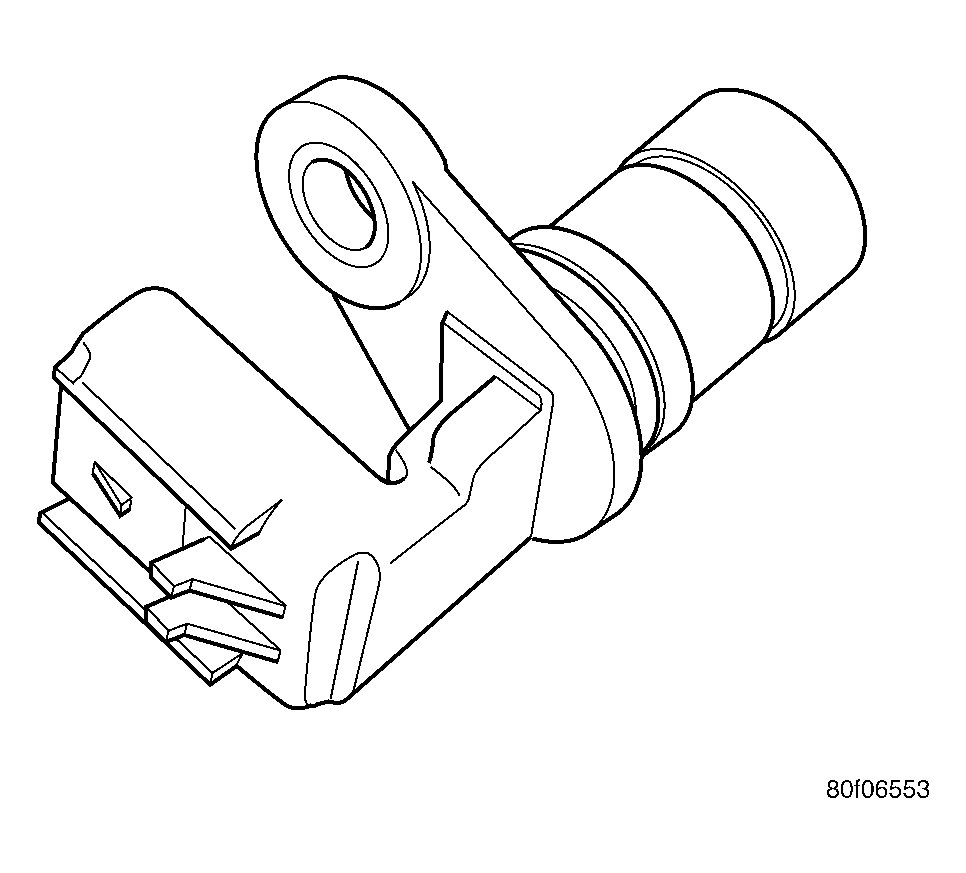

   Fig 3: Crankshaft Position Sensor - 2.4 L Turbo

   Courtesy of DAIMLERCHRYSLER CORP.
5. Unlock and disconnect the electrical connector to the crankshaft position sensor.
6. Remove the crankshaft position sensor bolt.
7. Remove the sensor.
