Crankshaft Position Sensor: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

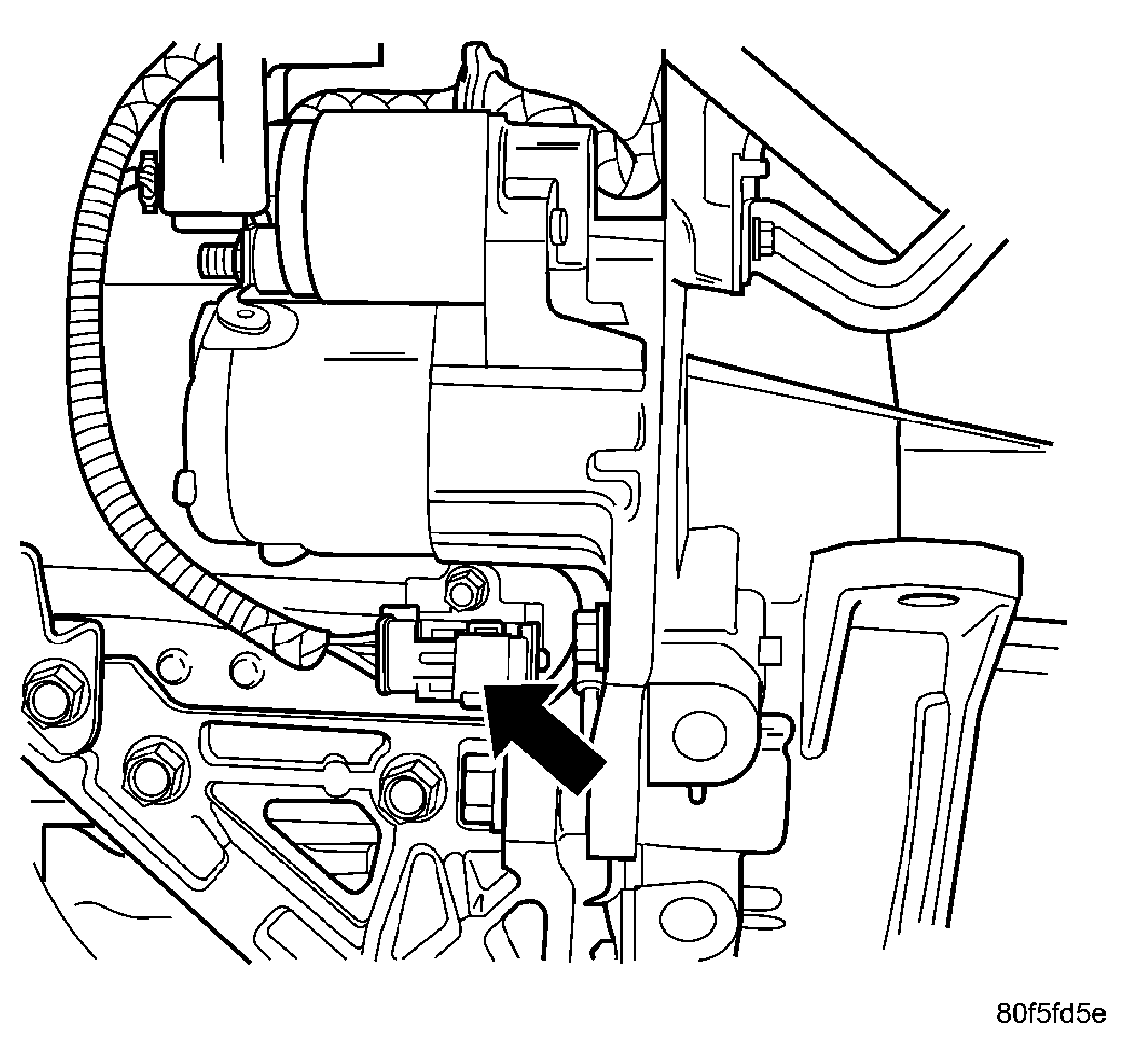

Fig 1: Locating Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The crankshaft position sensor mounts to the engine block near the starter.

The PCM uses the Crankshaft Position sensor to calculate the following:

Engine RPM
TDC number 1 and 4
Ignition coil synchronization
Injector synchronization
Camshaft-to-crankshaft misalignment (Timing belt skipped 1 tooth or more diagnostic trouble code).
