Fuel Rail: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

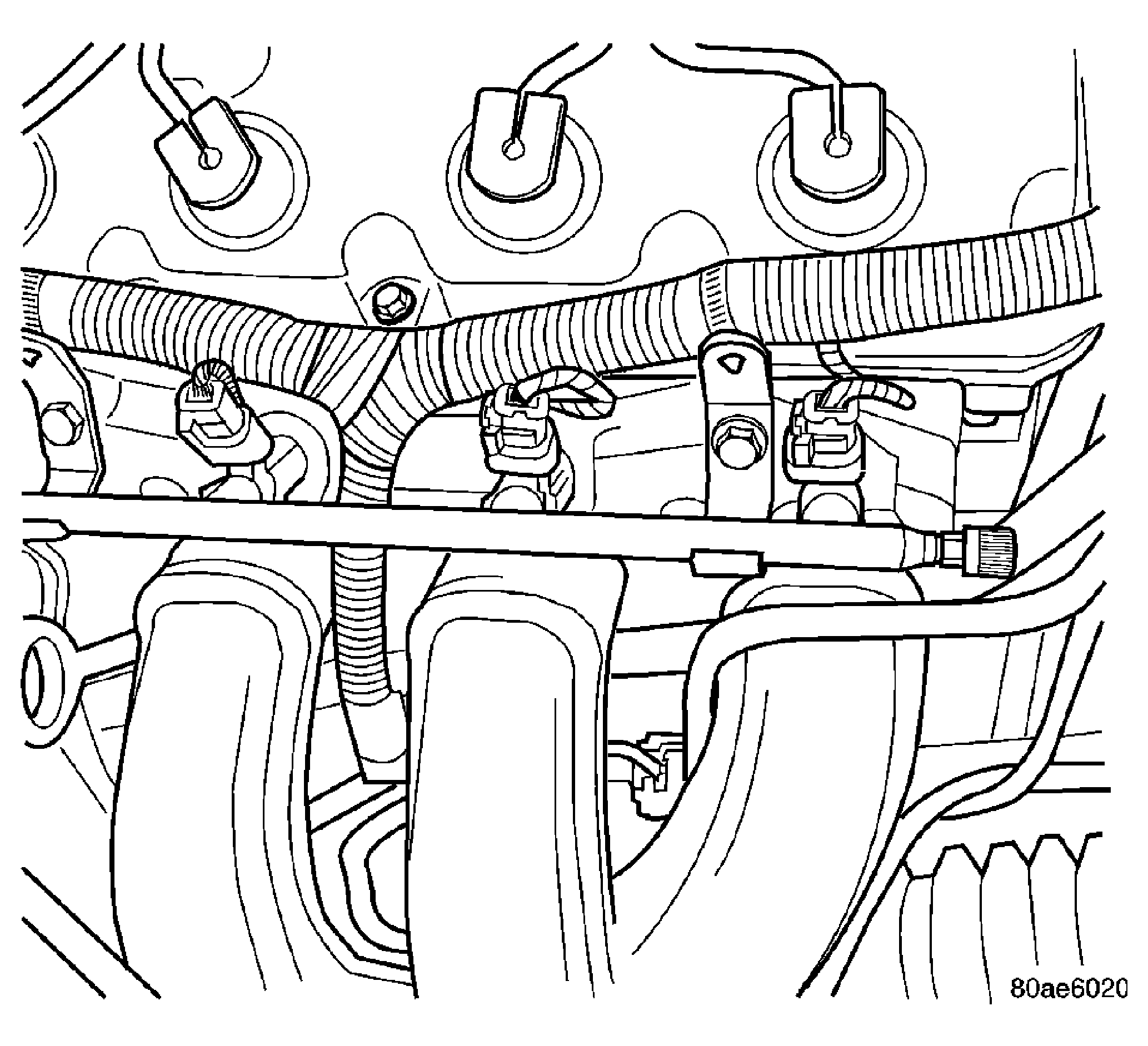

Fig 1: Fuel Rail
GC0019420Courtesy of DAIMLERCHRYSLER CORP.

The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold. See Fig 1.
