Vehicle Preparation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

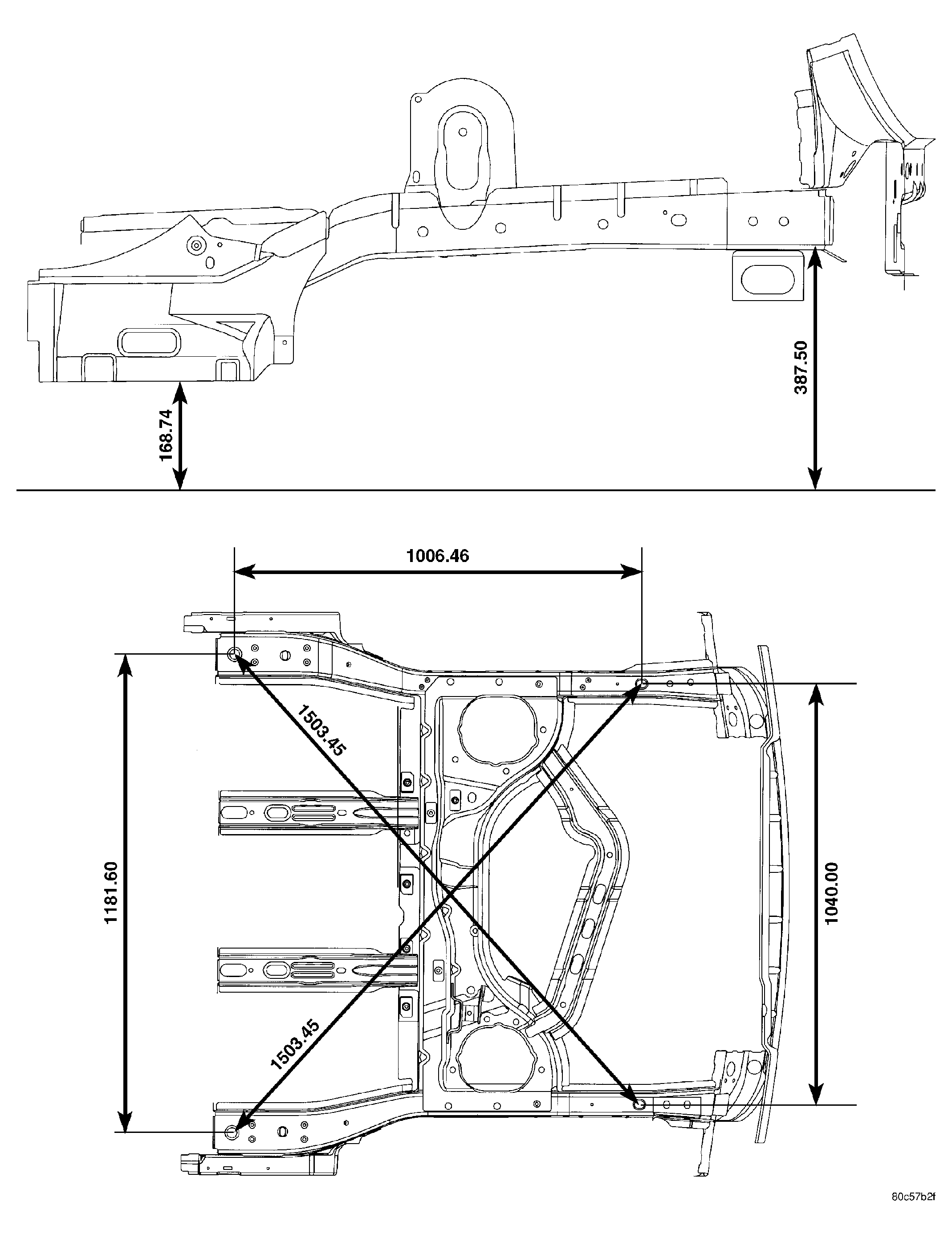

| ENGINE COMPARTMENT TOP VIEW | step Fig 1. |

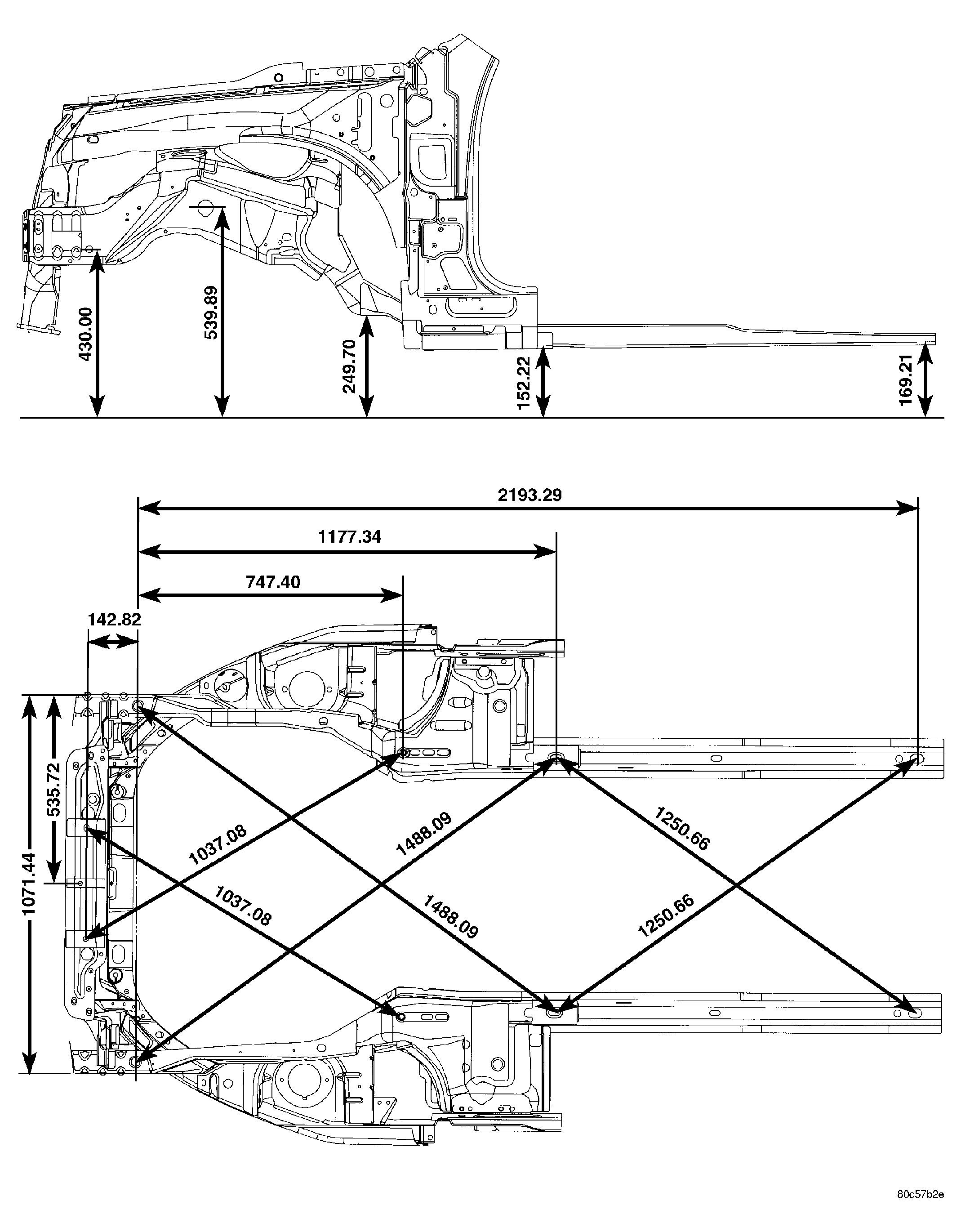

| ENGINE COMPARTMENT SIDE AND BOTTOM VIEW | step Fig 2. |

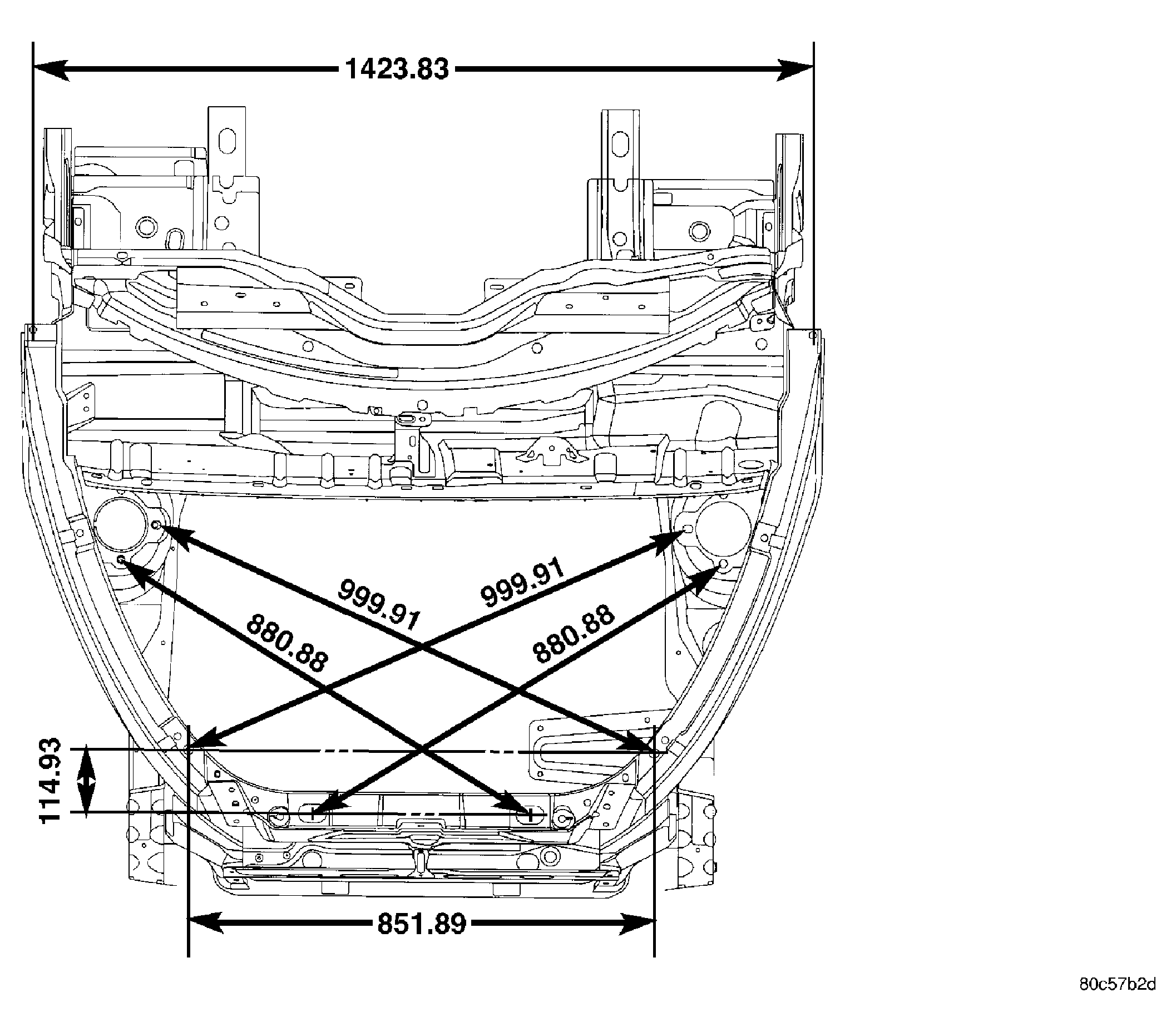

| REAR FRAME SECTION SIDE AND BOTTOM VIEW | step Fig 3. |

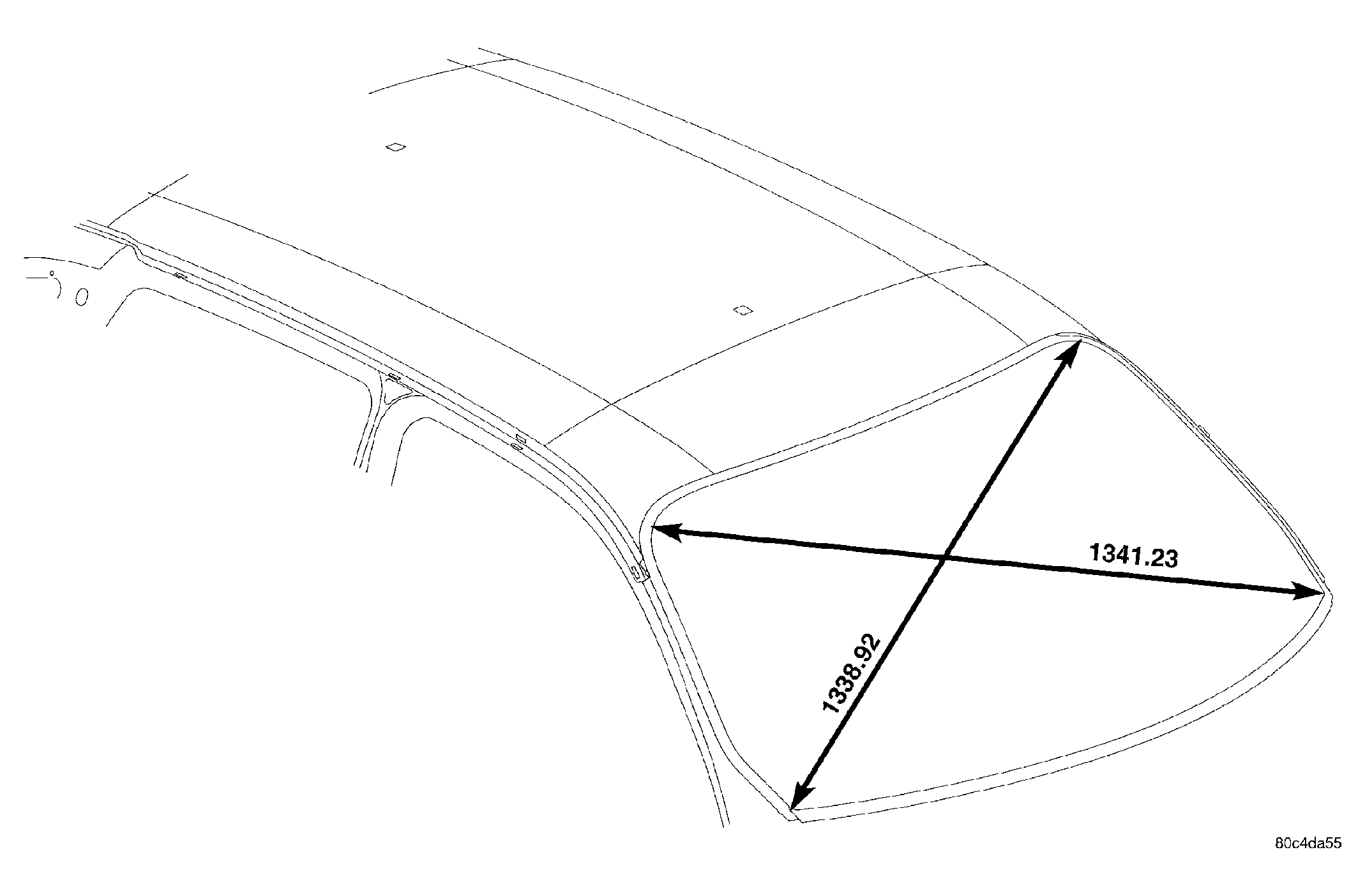

| WINDSHIELD OPENING DIMENSIONS | step Fig 4. |

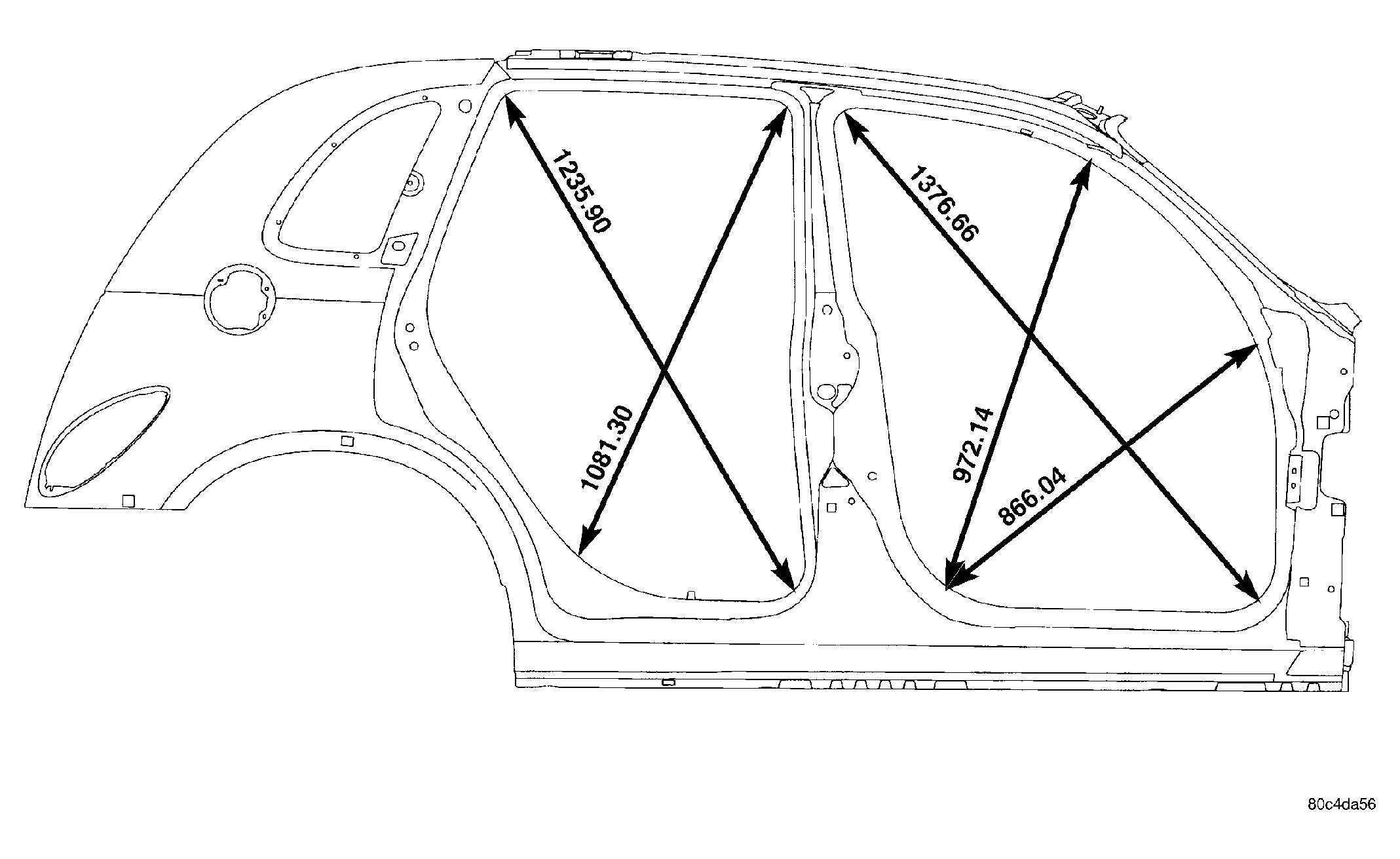

| FRONT AND REAR DOOR OPENING DIMENSIONS | step Fig 5. |

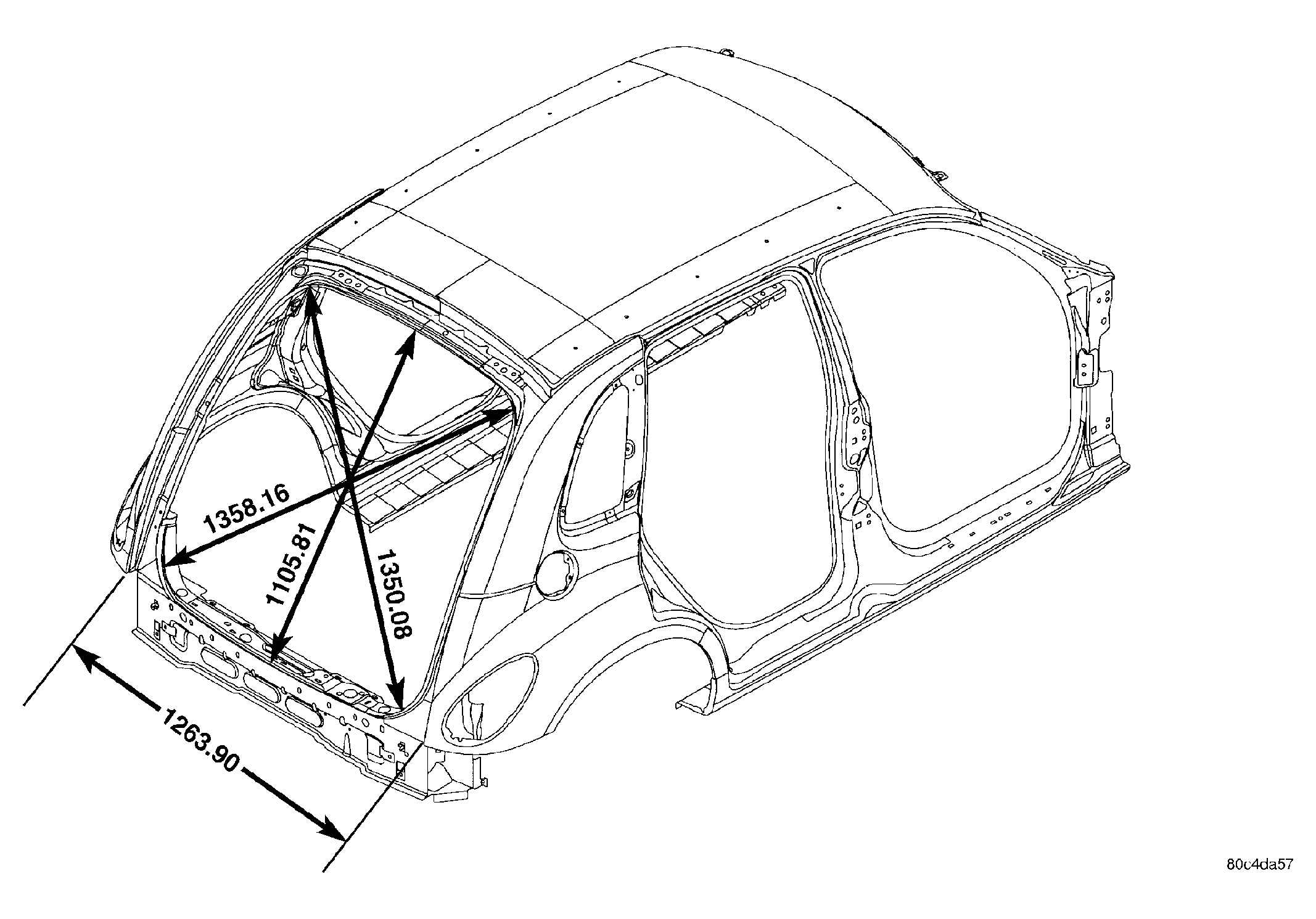

| REAR LIFTGATE OPENING DIMENSIONS | step Fig 6. |
