Section 8 (Front Suspension & Rear Suspension): Rear: Spring: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Coil Spring and Shock Assembly

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Rear coil springs are interchangeable.

Install upper (1) and lower (5) isolators on coil spring (2).

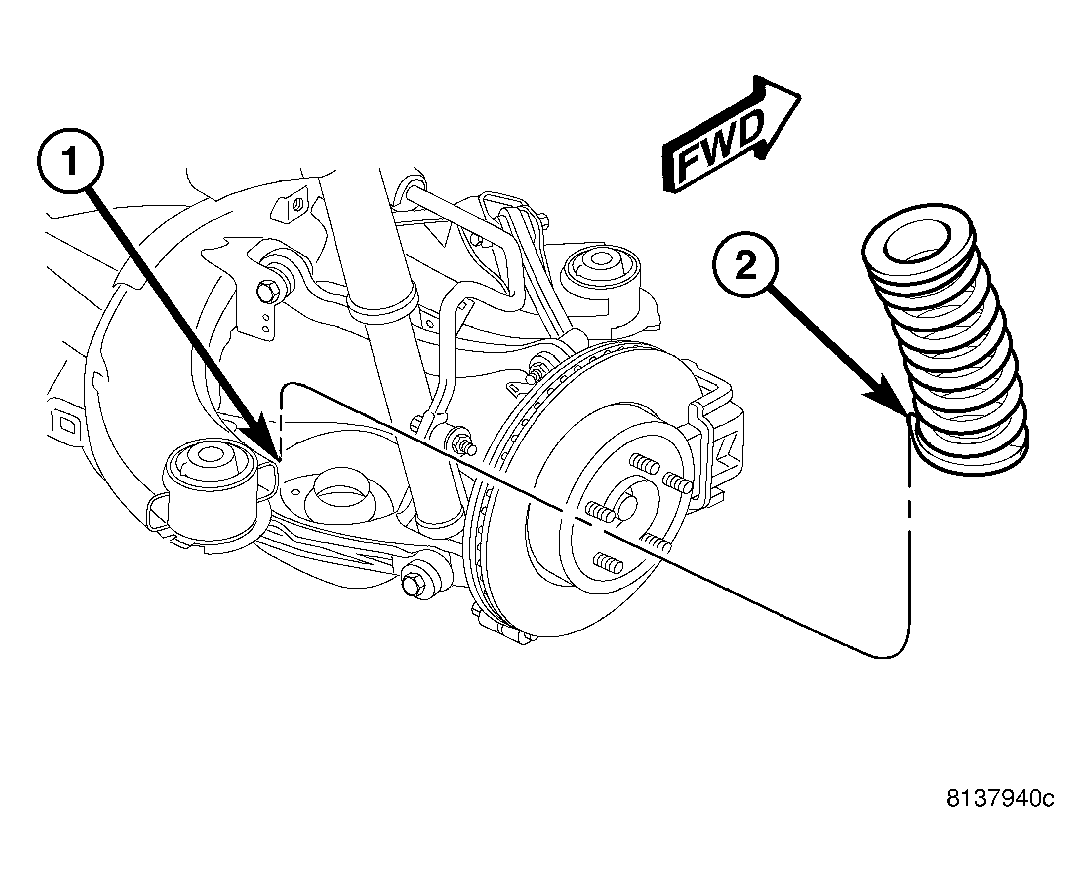

Fig 2: Matching Spring Isolator to Spring Link
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Before installing coil spring, make sure isolators (1 and 5) are completely installed on ends of spring.
Install coil spring with isolators into spring pocket of spring link (1) fitting lower isolator (2) to shape of pocket, then align top of spring with body mount.

Fig 3: Identifying Coil Spring and Shock Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Install shock absorber (3) by setting lower end into pocket in spring link (4), then tipping top inward until aligned with upper mounting holes.

Fig 4: Shock Mounting - Lower
Courtesy of DAIMLERCHRYSLER CORP.
Install lower shock mounting bolt and nut. Do not tighten at this time.

Fig 5: AWD Crossmember Spacers
Courtesy of DAIMLERCHRYSLER CORP.
If vehicle is equipped with AWD, make sure spacers (1) on top of crossmember mount bushings (2) on side of repair are in position.

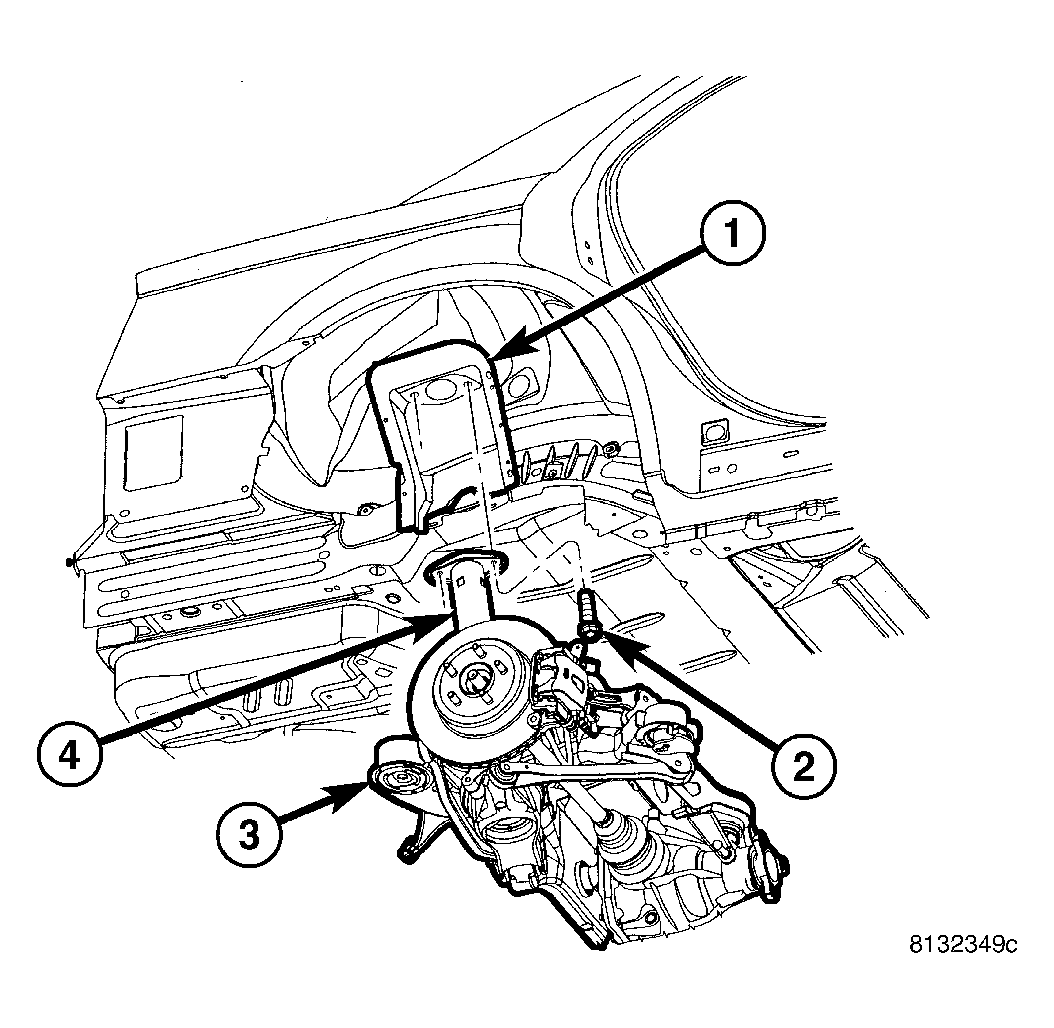

Fig 6: Shock And Frame Mounting - Upper
Courtesy of DAIMLERCHRYSLER CORP.
Carefully raise jack, guiding coil spring and upper end of shock absorber (4) into mounted positions.
Install shock absorber upper mounting screws (2). Tighten upper mounting screws to 52 N.m (38 ft. lbs.) torque.

Fig 7: Rear Crossmember Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Rear crossmember mounting bolts (2) are longer than front mounting bolts (3). Do not interchange mounting bolts.
Install crossmember mounting bolts (2 and 3). Snug, but do not fully tighten bolts at this time.

Fig 8: Measuring Tension Link Clearance
Courtesy of DAIMLERCHRYSLER CORP.
Measure distance (1) between from tension link (2) to body weld flange (3) directly in front of it, just outboard of front mount bushing (4). This distance must be at least 12 mm to allow proper clearance for suspension movement. If distance is less than 12 mm, shift that side of rear crossmember directly rearward until distance is 12 mm or greater. To do so, loosen 3 mounting bolts slightly, leaving one on opposite side of shift snugged to pivot off of. Shift crossmember rearward and snug loosened bolts. Measure opposite side to be sure it also maintains minimum 12 mm distance.

Fig 9: Rear Crossmember Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Tighten all crossmember mounting bolts (2 and 3) to 180 N.m (133 ft. lbs.) torque.

Fig 10: Support Rear Suspension Using Jack
Courtesy of DAIMLERCHRYSLER CORP.
Remove jack (3) from under rear axle differential.
If previously lowered, raise rear exhaust back to mounted position and connect exhaust isolators at muffler and resonators hangers. Remove jack or stand below exhaust muffler.

Fig 11: Filler Tube Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Install fuel filler tube. (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL TANK FILLER TUBE - INSTALLATION)

Fig 12: Tire And Wheel Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Install tire and wheel assemblies (1). Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) torque. (Refer to TIRES/WHEELS - INSTALLATION)
Lower vehicle.
Position vehicle on alignment rack/drive-on lift. Raise lift as necessary to access lower mounting bolt.

Fig 13: Shock Mounting - Lower
Courtesy of DAIMLERCHRYSLER CORP.
Tighten shock absorber lower mounting bolt nut (4) to 72 N.m (53 ft. lbs.) torque.
