Lower Torque Strut

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

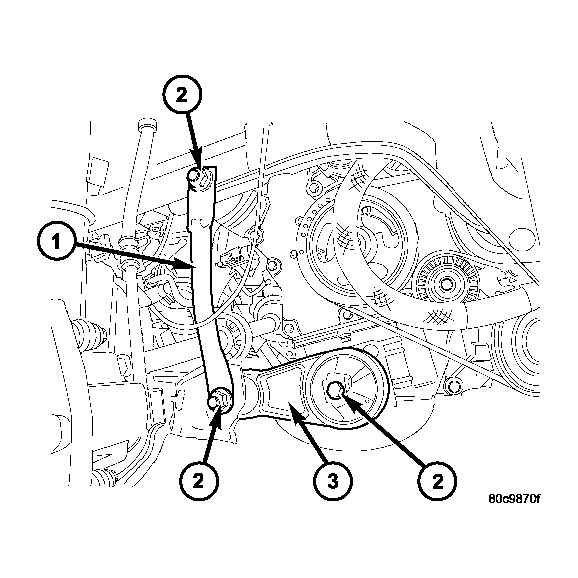

Fig 1: Lower Torque Strut
GC0021433Courtesy of DAIMLERCHRYSLER CORP.
1 - PENCIL STRUT
2 - TORQUE STRUT FASTENERS
3 - LOWER TORQUE STRUT
  1. Position lower torque strut (3) into mounting locations. See Fig 1.
  2. Install mounting bolts.
  3. Install pencil strut. See Fig 1.
  4. Perform torque strut adjustment procedure (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS)  .
  5. Install accessory drive belt splash shield.
  6. Lower vehicle.
