Section 75 (1.6L SOHC Engine): Plate-Flex: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

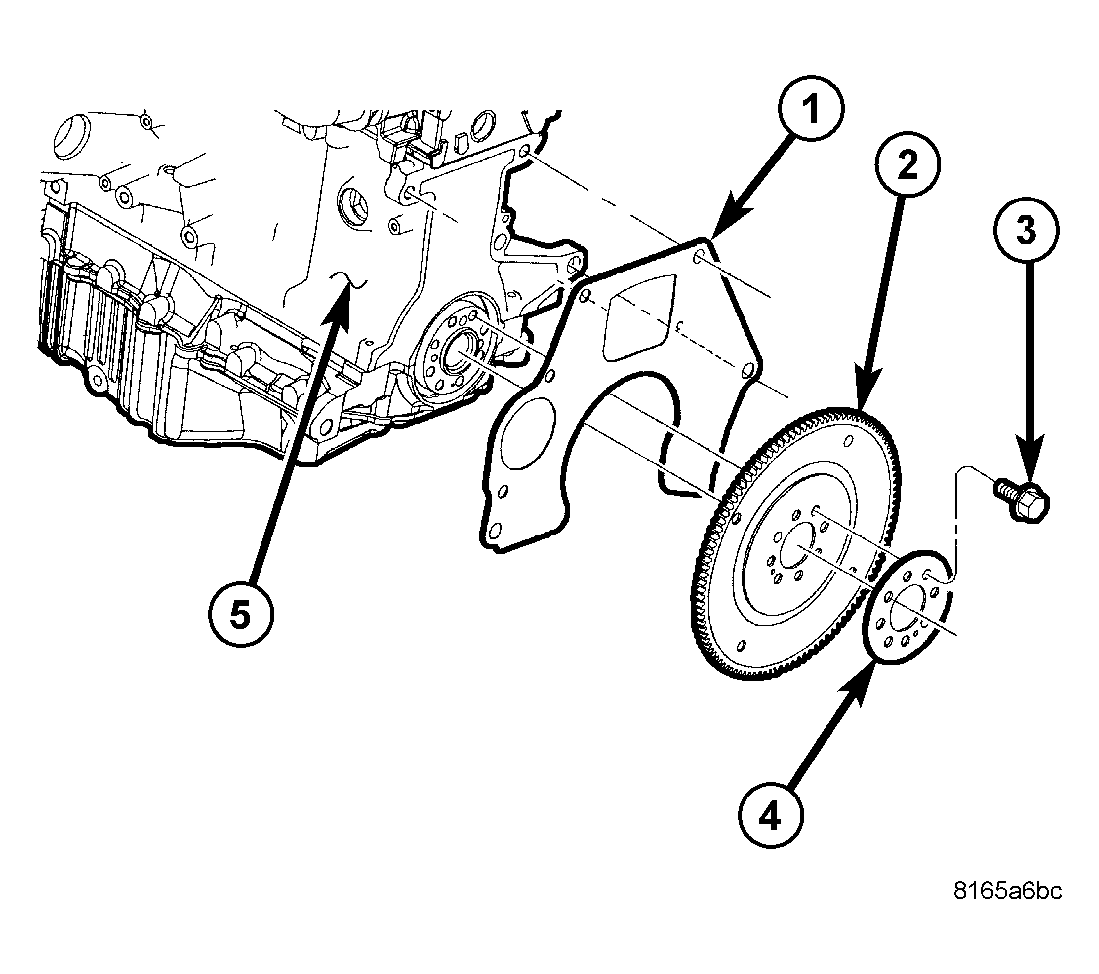

Fig 1: FLEX PLATE
GC0042427Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove transaxle
  2. Remove flex plate retaining bolts (3).
  3. Remove shim (4) and flex plate (2).
